Corrugated Steel Sheet Metal Roofing Tile Wall Panel Roll Forming Machine

Cangzhou Nexus Machinery Co., Ltd.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Electric

Base Info

  • Model NO.：NM123
  • Raw Material：PPGI Sheet
  • Thickness Range：0.3-0.8mm
  • Machine Power：4kw+3kw
  • Machine Weight：About 5 Tons
  • Warrenty：12 Months
  • Encode：Omron
  • PLC：Panasonic Brand
  • Transport Package：Plastic Film & Steel Wire Fixed
  • Specification：6000mm*1500mm*1500mm(L*W*H)
  • Trademark：NEXUS MACHINERY
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：30 Sets , Months

Description

Manual decoilerCapacity5tonFeeding widthMAX 1300mmExpanding range460-520mm Corrugated Steel Sheet Metal Roofing Tile Wall Panel Roll Forming MachineMain motor power4kwDrive1'' single chainType:Wall boardMain shaft dia¢70mmmaterial45# forge steel and quenchedRoller material45# high grade forge steel ,chrome coated 0.05mmRoll station18 groupsRaw material0.3-0.8mmCoil width 1200mmWorking speed10m--15m/min(Exclude cutting time)Length Tolerance±1.5mmWeight of machineAbout 5 tonSize of machineAbout 7500×1800×1500mm L x W x HColor of machineYellow and BlueCoderOmron, made in JapanControlPLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)Computer operating paneltouching screenOther electrical elementSchneiderCuttingHydraulic cutting. Auto cutting when reach the set lengthHydraulic power3KWBlade materialCr12mov,quenched 58°-62°Working pressure16mpaCutting tolerance+/- 1.0mm
4. Equipment list :

No.Product Name       QTY
15T Manual decoiler          1
2Corrugated Steel Sheet Metal Roofing Tile Wall Panel Roll Forming Machine
 (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)		          1
3Passive Output table          2
Sum           4

5. Character of main structure:

1. This machine contains our experiences in 30 years and many times improvements by our engineers.

2. In our service, we support the equipments and profiles that customers really need and including our most sincere recommends.

3. Our roll forming machines are driven by chain in hydraulic system. Chain Drive System can save the power compare with other system. That also means that customers do not need to pay the extra power fee during production of steel panel.

 6. Advantage:

1. We use Automatic control software to manage productive information.

2. Thanks to the High integrated network, the whole automatic control system has an improvement in automaticity.

3. High performance in operation, maintenance, and debugging. Easy to load and unload.

4. First in quality

5. First in time

6. First in price

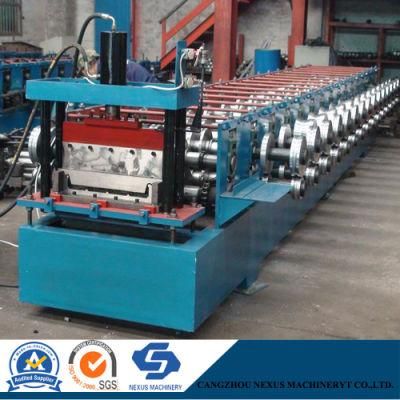

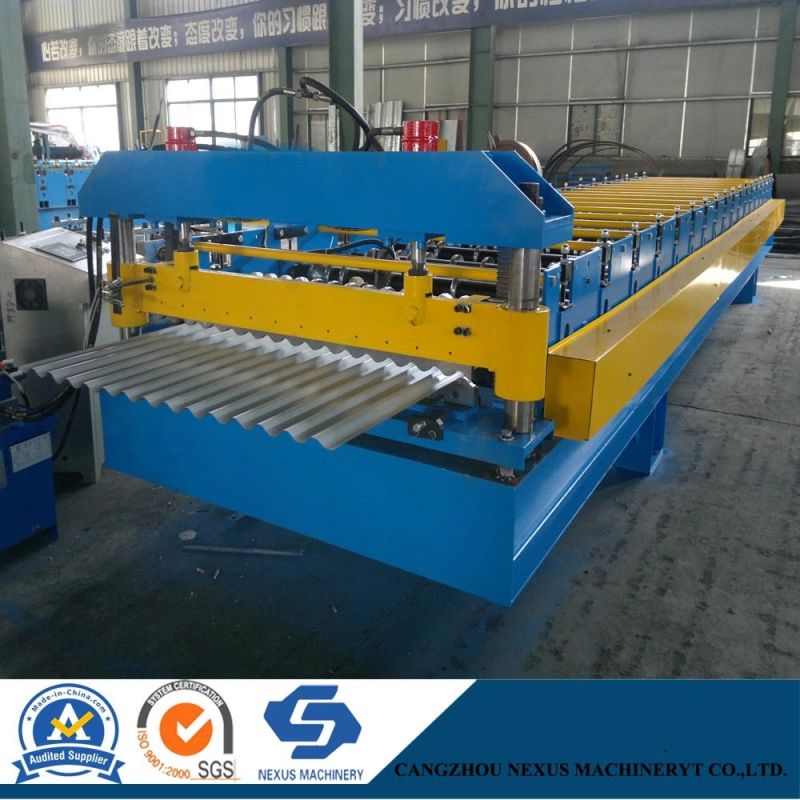

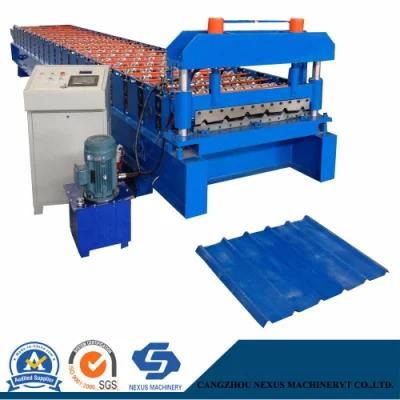

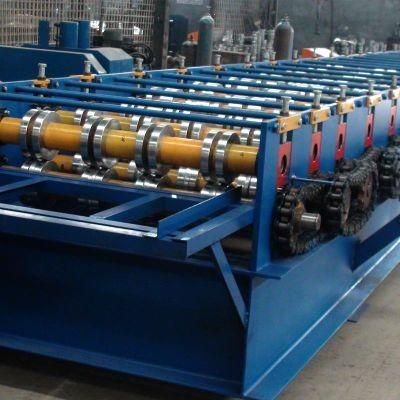

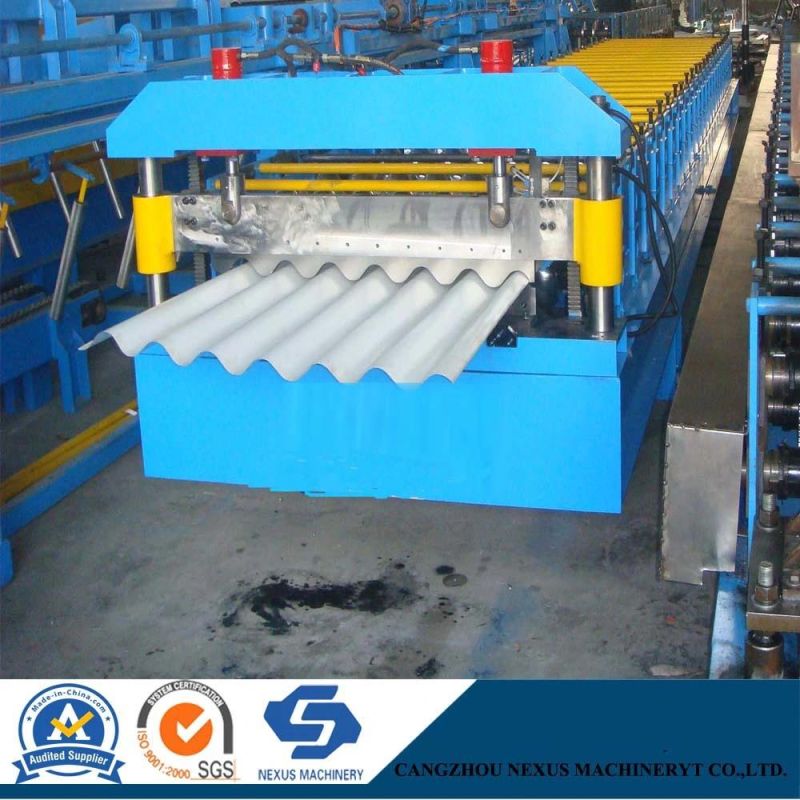

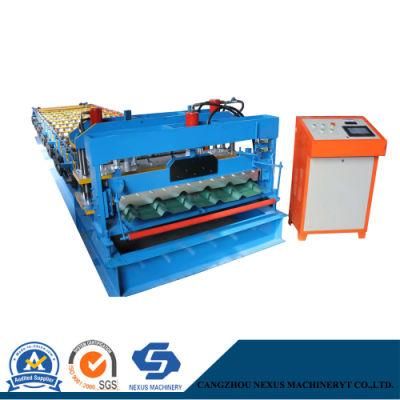

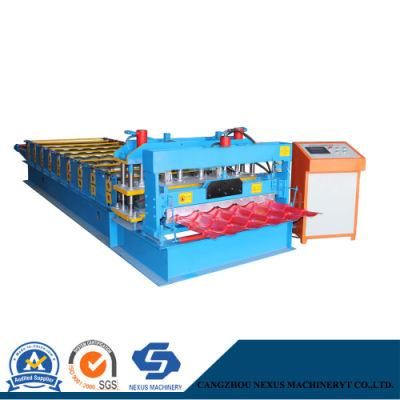

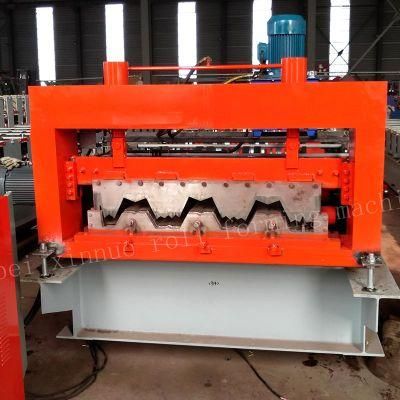

7. Photos of High Performance Corrugated Roll Forming Machine for Reference:
Corrugated Steel Sheet Metal Roofing Tile Wall Panel Roll Forming Machine
Corrugated Steel Sheet Metal Roofing Tile Wall Panel Roll Forming Machine
