Small Standing Seam Roofing Forming Machine with Adjustment Construction Equipment
Xiamen Xinhonghua Machinery Co., Ltd.- Tile Type：Glazed Steel
- Certification：CE, ISO, SGS
- Condition：New
- Customized：Customized
- Usage：Roof
- Transmission Method：Electric
Base Info
- Model NO.：KLS25-220-530
- Size：2000*1300*1400mm
- Roller Material：45#Steel
- Forming Steps：6steps
- Processing Speed：8-12m,Min
- Voltage：380V,50Hz,3pH
- Material Thickness：0.5-0.8mm

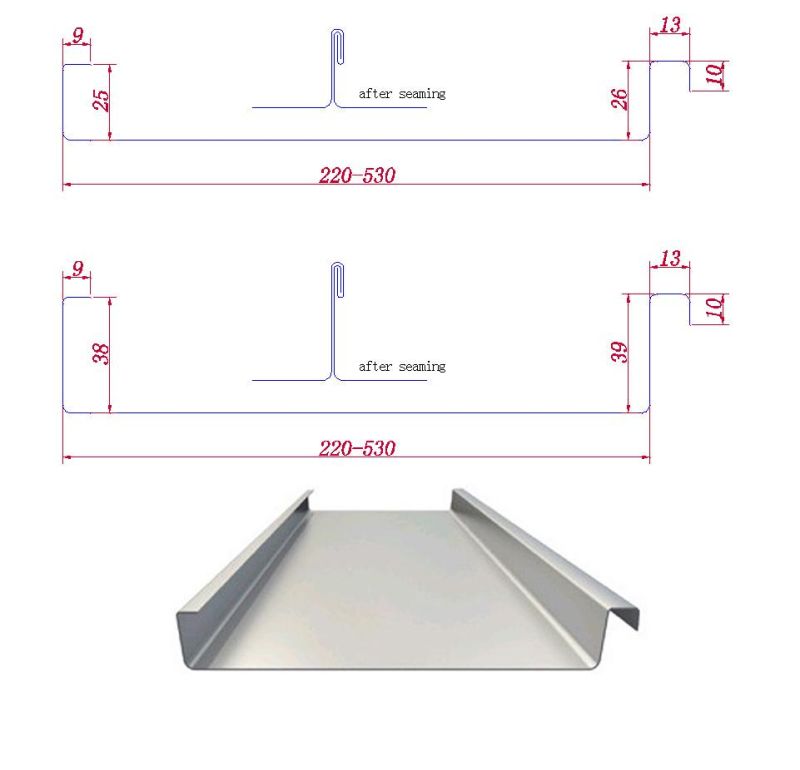

- Standing Height of Roofing：25,38mm
- Cutter Material：Cr12 Mould Steel
- Effective Width of Roofing：220-530mm
- Material Width：290mm-600mm
- Transport Package：Standared Export Package
- Specification：2000*1300*1400mm
- Trademark：XHH
- Origin：Xiamen, China
- HS Code：8455229090
- Production Capacity：20sets,Month
Description
KLS28-220-530
(hydraulic cutting)
11.
Material of AL-Mg-Mn,Galvanized Sheet
Thickness
14.
Thickness for common use
and testing machine
(material: PPGI, GI, Aluminum)
2)Main Accessories:
(1) Main Seamlock Roofing Forming Machine;
(2) Main uncoiler;
(3) Hydraulic System;
(4) PLC Computer Controlling System With Touch Screen;
(5) Hydraulic Forming Cutter;
(6) Tools;
(7) Operation Manual.

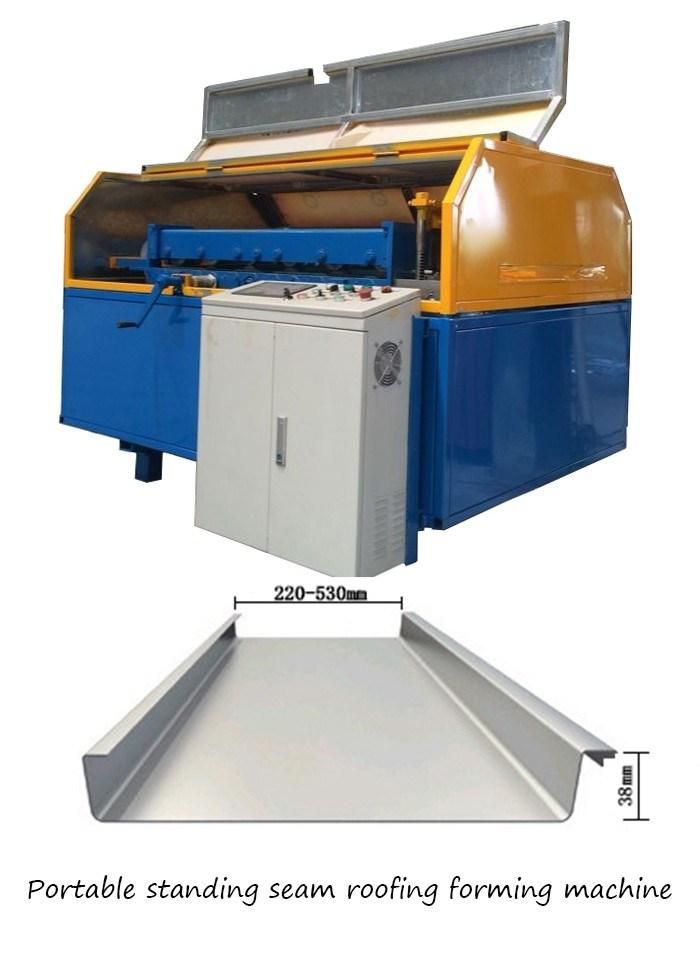

2. Pictures of portable standing seam machine
