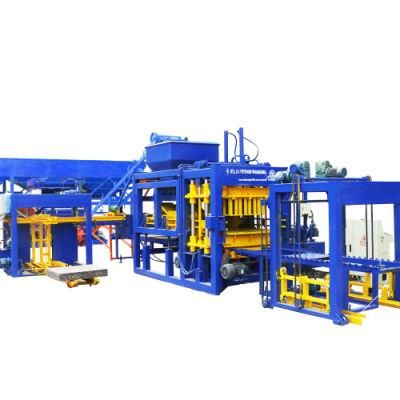

Qt15-15 Automatic Hydraulic Concrete Paver Brick Hollow Block Making Machine

Qingdao HF Machinery Co., Ltd.

Certification：CE, ISO
Customized：Customized
Automatic Grade：Automatic
Type：Vibration Molding
Machine Name：Block Making Machine
Machine Model：Qt15-15

Base Info

Model NO.：QT15-15
Cycle Time：15-25s
Pallet Size：1300X1100mm
Host Machine Power：78.5kw
Rated Pressure：31MPa
Host Machine Weight：17500kg
Vibration Form：Platform Vibration
Overall Dimension：11500X2350X2950mm
Factory Area：3000m2
Transport Package：Nude
Specification：New
Trademark：HONGGONG
Origin：China
HS Code：847480200
Production Capacity：50 Set Per Month

Description

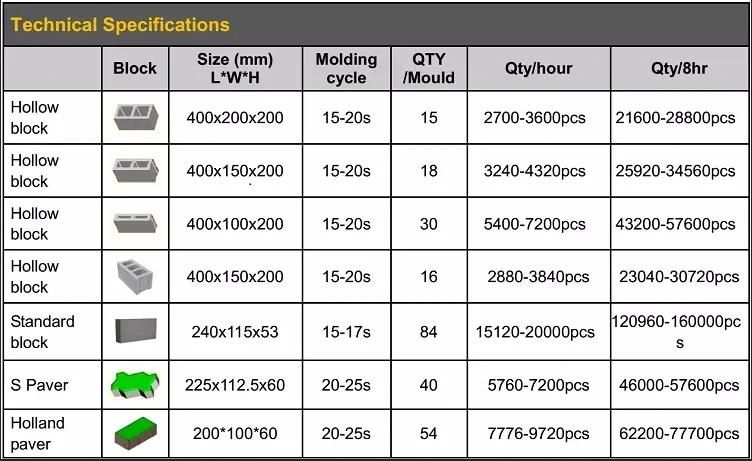

Main technical parameterQty/mould15pcs/mould (hollow block 400*200*200mm)Molding cycle15sRated pressure31MPaMain vibrationPlatform vibrationVibration frequency2800-4500 r/mPower78.5kwPallet size1300x1100mmDimension11500x2350x2950mmHost machine weight17500kgFactory Area3000m²
Qt15-15 Automatic Hydraulic Concrete Paver Brick Hollow Block Making Machine

Qt15-15 Automatic Hydraulic Concrete Paver Brick Hollow Block Making Machine

Qt15-15 Automatic Hydraulic Concrete Paver Brick Hollow Block Making Machine

Qt15-15 Automatic Hydraulic Concrete Paver Brick Hollow Block Making Machine

Qt15-15 Automatic Hydraulic Concrete Paver Brick Hollow Block Making Machine

Qt15-15 Automatic Hydraulic Concrete Paver Brick Hollow Block Making Machine

Qt15-15 Automatic Hydraulic Concrete Paver Brick Hollow Block Making Machine

Qt15-15 Automatic Hydraulic Concrete Paver Brick Hollow Block Making Machine

Qt15-15 Automatic Hydraulic Concrete Paver Brick Hollow Block Making Machine

Qt15-15 Automatic Hydraulic Concrete Paver Brick Hollow Block Making Machine
