• Model NO.：NX80--300
• Product Name：Dry Joint-Hidden Wall Tile Stud Machine
• Coil Material Thickness：0.3-0.8mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Forming Speed  ：15-25m,Min
• Shaft Material：45# Steel
• Transport：Chain Transmission
• Roller Station：12 Stations
• Transport Package：Plastic Film
• Specification：50-75-100
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10

Basic Info.

Model NO. NX80--300 Product Name Dry Joint-Hidden Wall Tile Stud Machine Coil Material Thickness 0.3-0.8mm Processing Material Galvanized Steel Roller Material Cr12MOV Forming Speed   15-25m/Min Shaft Material 45# Steel Transport Chain Transmission Roller Station 12 Stations Transport Package Plastic Film Specification 50-75-100 Trademark Nexus Machinery Origin Cangzhou HS Code 8455221000 Production Capacity 10

Product Description

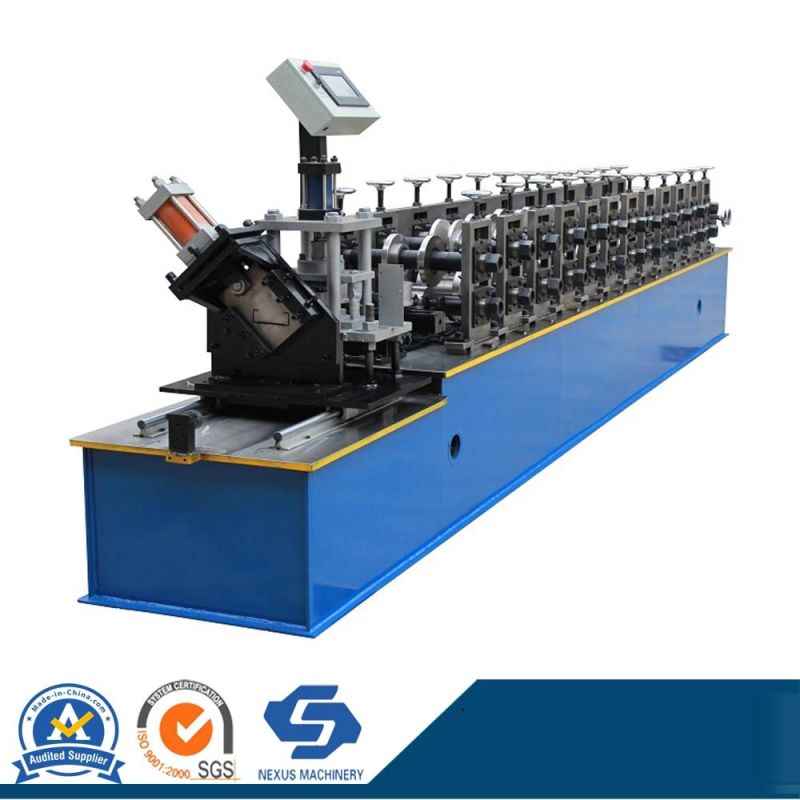

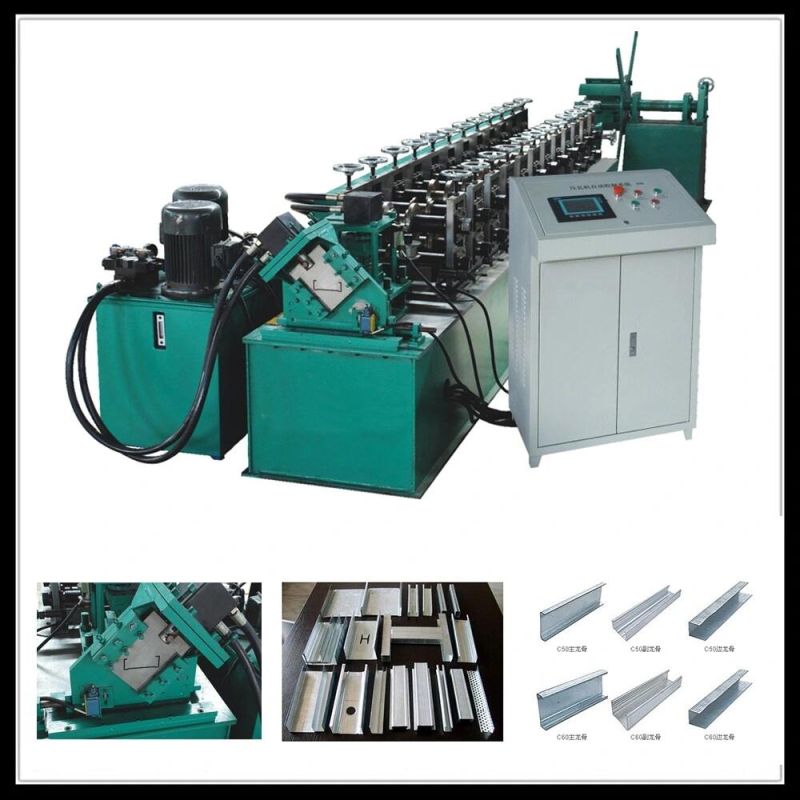

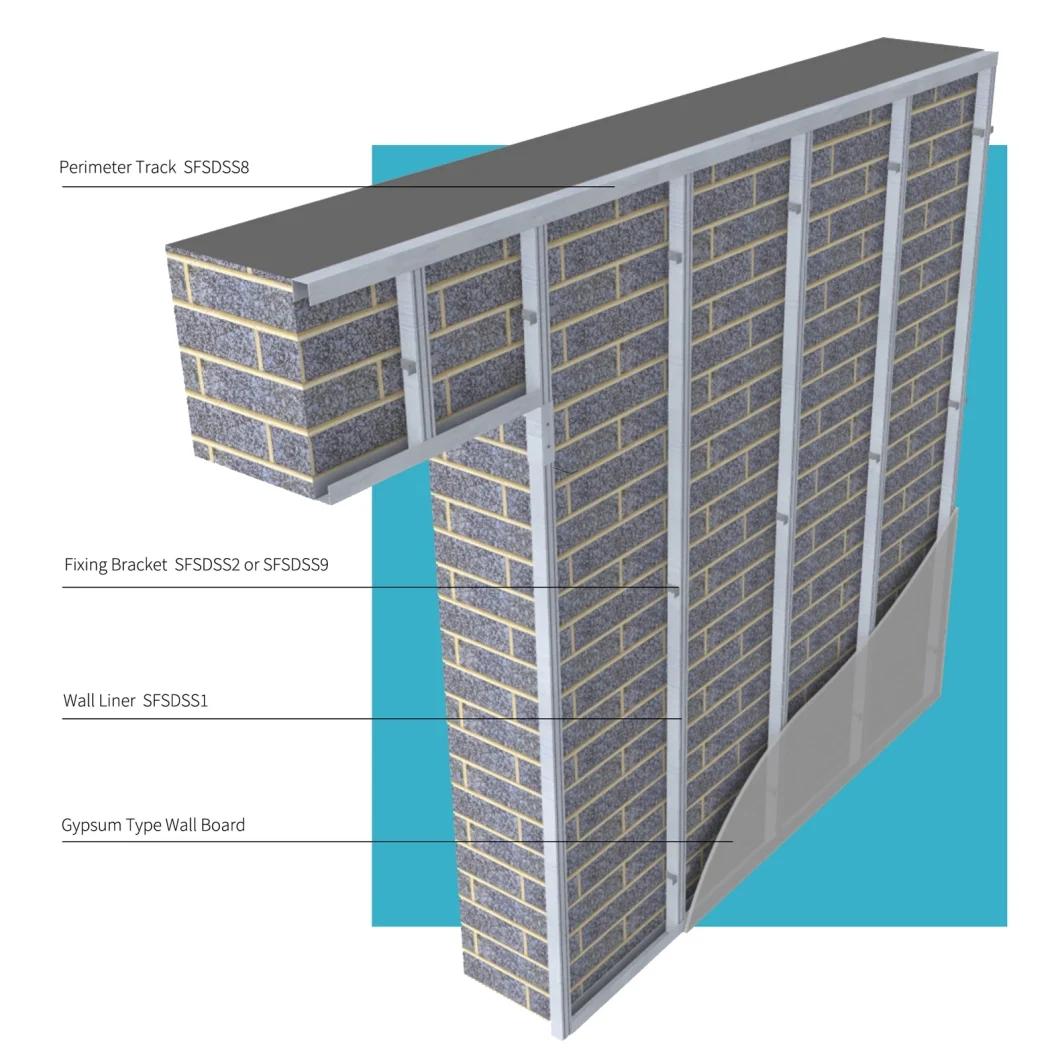

Galvanized Metal Dry Joint-hidden Wall Tile Stud Roll Forming Machine  - This is our hign configuration machine, The electromagnetic valve,Aviation plug,Touch screen,and so on.we use the brand such Mitsubishi,Matsushita,Siemens and so on.

- Also the oil pump,electric motor Reducer we use Yuken, all the part of the machine have best quality and more than 80 years life time.

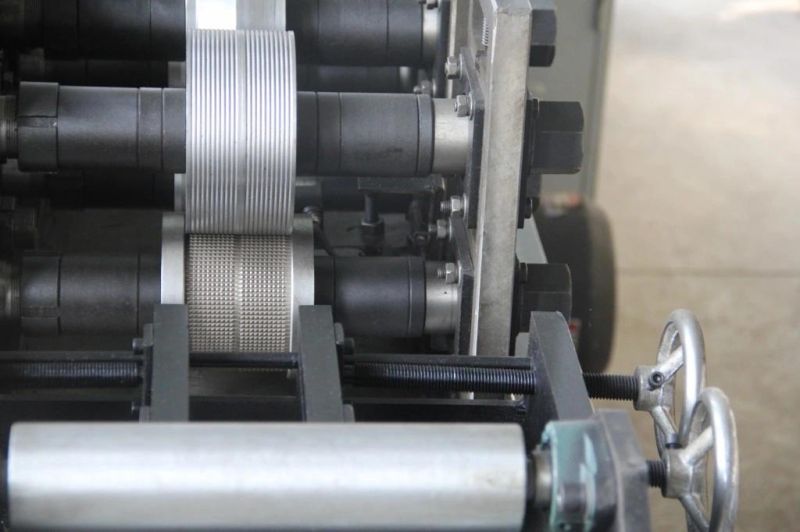

- One roller mold is made up by two parts see follow ,you can used the spacers add in the two parts of the roller mold to changed the sizes of it then can manufactured different sizes of profiles.





1. Profile	Coil material thickness:0.3-0.8mm Sizes: 76mm*35mm, 76mm*32mm Processing Material :galvanized steel Input Width(mm): according to drawings
2. Process flow	Decoiler--Feeding--Forming--Servo track Cutting--Product Table
3. Manual Decoiler	1).Material coil inner diameter: 450mm-550mm   2).Max coil Width:500mm 3).Carrying capacity: 1.5T 4) Type of decoiler: Manual 5) Weight of decoiler: 100 KGS
4. Forming System	.Roller station:12 stations .Shaft material:45# steel           Outer diameter:40mm              Roller material: Cr12MoV    .Transport: chain transmission .Forming Speed: 15-25m/min   Length Measurement:counter .Motor:3kw .Normal Size of Machine: 3.5mx1.2mx1.45m or as design .Voltage:380v,50Hz,3 phase (or as demand)
5. Cutting System	1).Material: blade and mold material: Cr12MoV steel with quenched treated 60-62ºC .Cutting system: Advanced hydraulic drive, automatic cutting with no stop, no distorting or wasting, high level safety factor.
6. Control System	6.1 Screen: touch screen   6.2 PLC: Delta 6.3 Automatic length measurement   6.4 Automatic quantity measurement   6.5 Computer is used to control length and quantity. Machine will automatically cut to length 6.6 Length inaccuracy can be amended easily
7. Hydraulic System	1). Hydraulic system made in china 2). Power:3kw   3) Oil: Hydraulic 46#
