• Model NO.：car panel roll forming machine
• Usage：Roof, Wall, Car Panel
• Transmission Method：Hydraulic Pressure
• Trade or Factory：Factory
• Guarantee：1 Year
• Life Time：10 Years
• Service：Provide Engineer to Install The Machines
• Brand Name of PLC：as Customer Request
• Drawing：Designed as Customer Request
• Power：38V, 50Hz, 3 Phrase or as Your Like
• Decoiler Type：Manul, Electric, Hydraulic
• Control System：PLC
• Transport Package：Main Machine Nude Packing with Plastic Film
• Specification：6800*1500*1500
• Trademark：XN
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets Per Month

Overview Product Description



1. advantage of Automatic car panel roll forming machine
cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.
Car panel cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.
2.Main parameter of   Automatic car panel roll forming machineNo.main parameter of car panel roll forming machine1Suitable to processColor steel plate2Width of the plate1220mm3Rollers14-18rows4Dimensions11.6*1.6*1.5m5Power7.5+4kw6Thickness of the plate0.3-0.8mm7Productivity8-12m/min8Diameter of the rollerΦ70mm9WeightAbout 6.8 T10Voltage380V 50Hz 3phases11Rolling materialCarbon Steel 45#12Material of the cutting plateCr1213Processing precisionWithin 1.00mm14Control systemPLC control15Side panel of machine14mm16Main structure of the machine300 H steel
 Detailed Photos

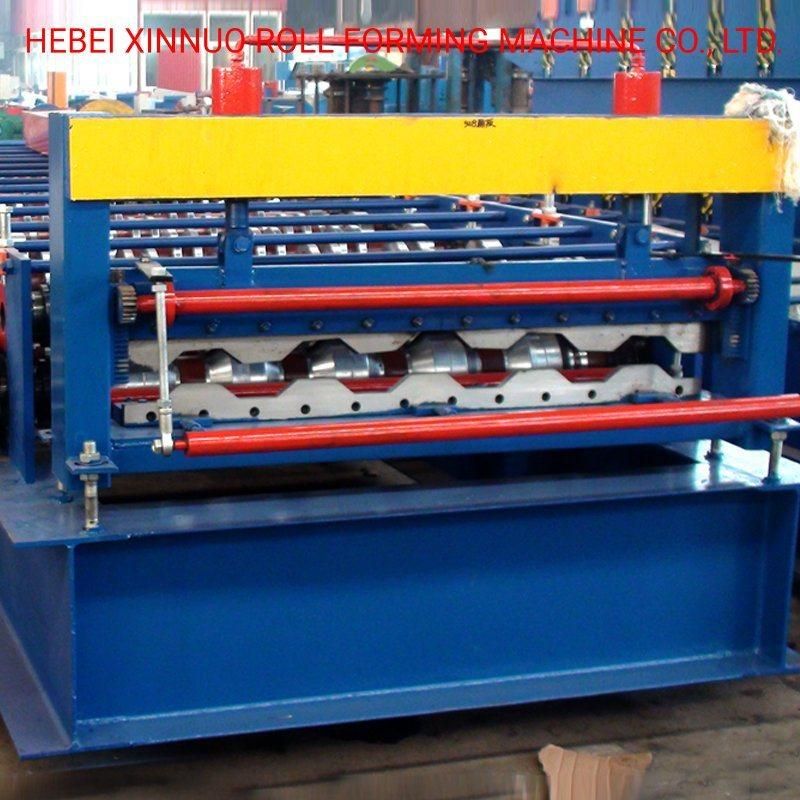

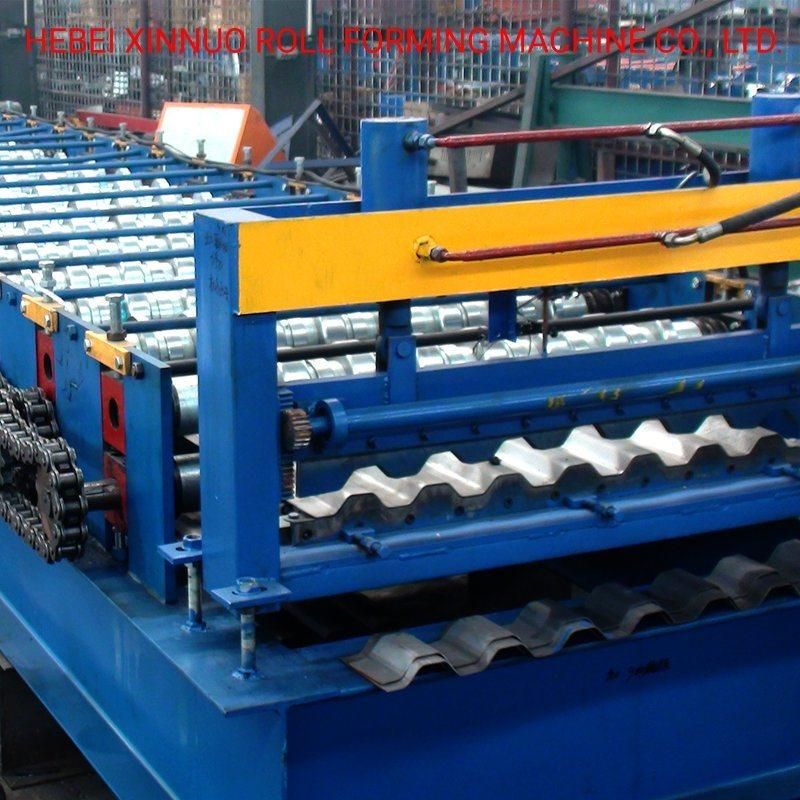

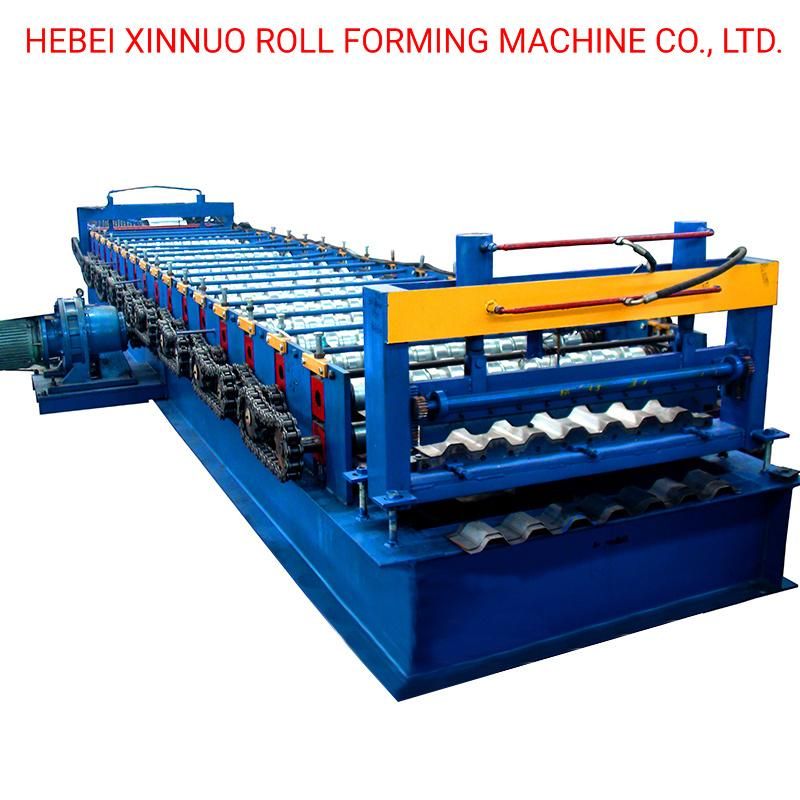

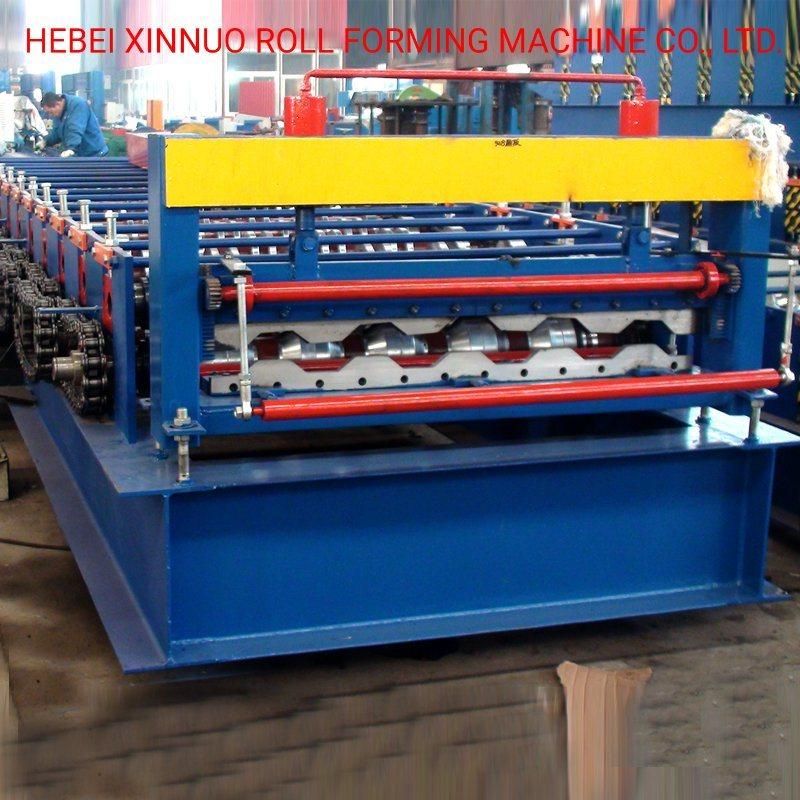

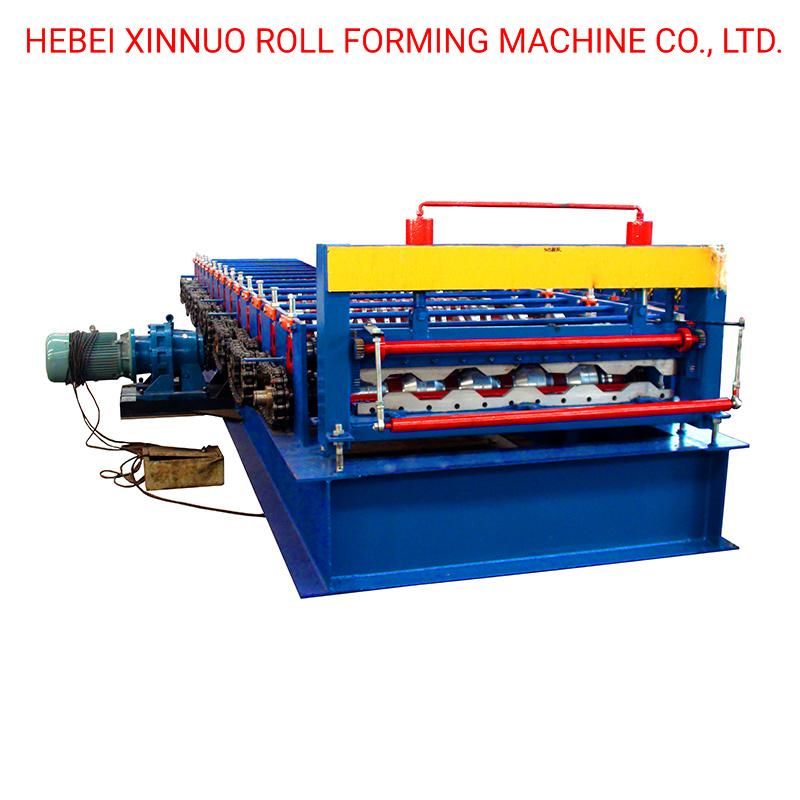

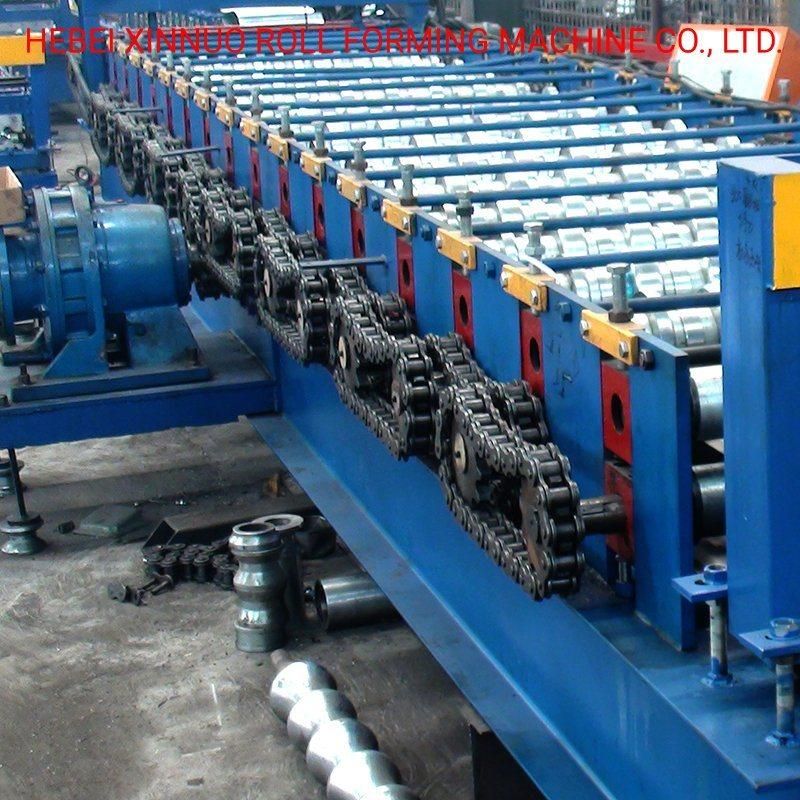

3.The pictures of Automatic car panel roll forming machine








Our Advantages

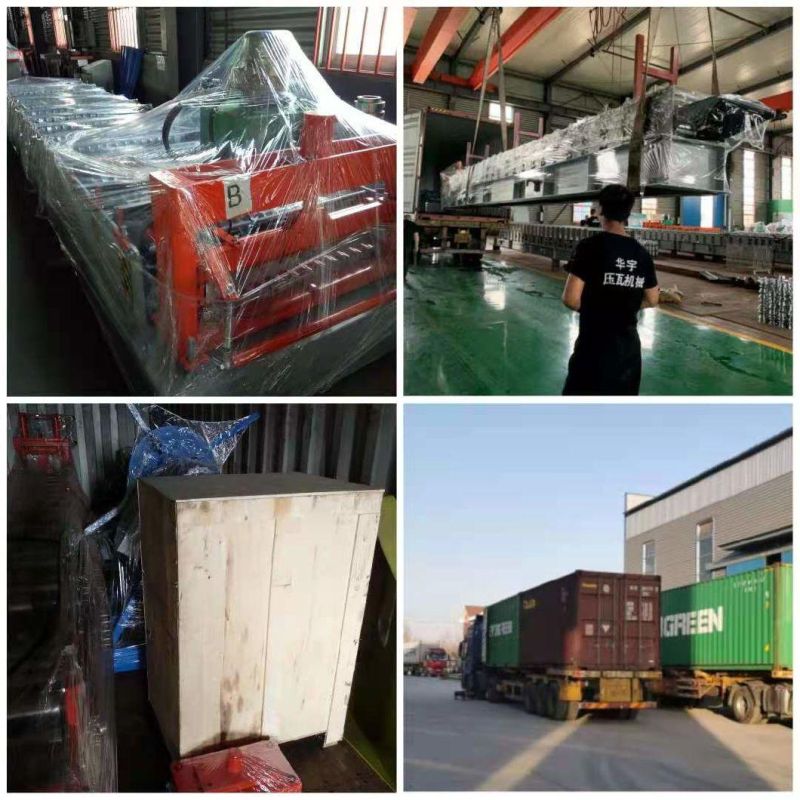

 Packaging & Shipping

Main machine is nude, the computer control box is packed with wooden fram
