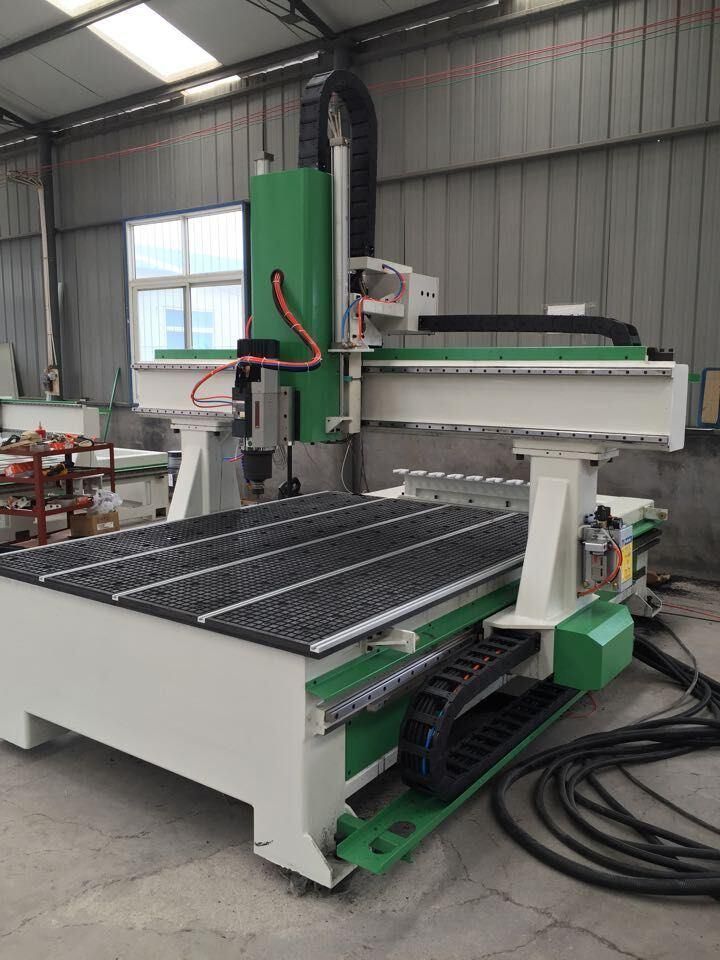

1325 Four Axis CNC Machining Woodworking Machine
JINAN DLM CNC ROUTER CO., LTD.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Vibration Molding
- Spindle：9kw ,12kw , Italy
- Table：T-Slot Vacuum Table
Base Info
- Model NO.：WA-481
- Motor：Servo Motor
- Rack：German Helical Rack
- Rail：Taiwan Linear Rail
- Pump：5.5kw , 7.5kw
- Inverter：Delta Inverter
- Dust Collector：3kw with Double Bags

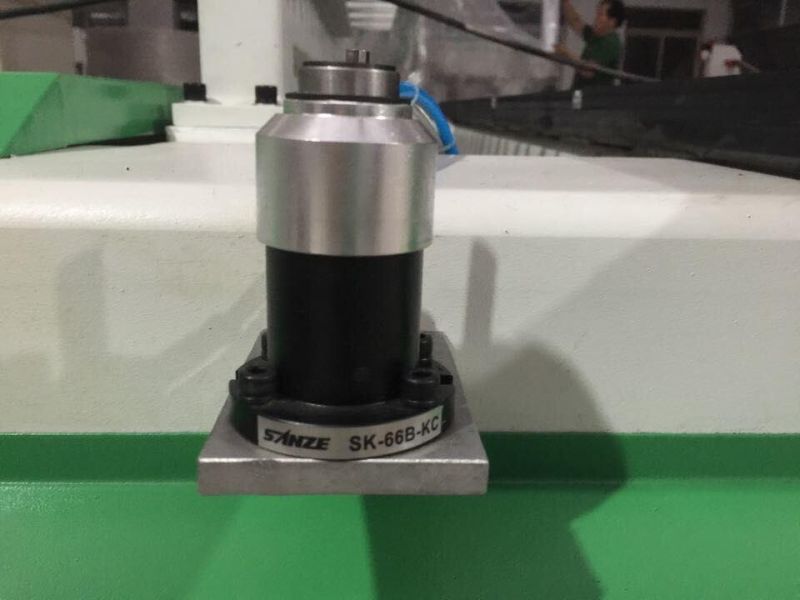

- Tool Sensor：Automatic
- Ball Screw：High Precision
- Transport Package：Plywood Box
- Specification：heavy duty cnc machine
- Trademark：DLM
- Origin：China
- HS Code：8469090
- Production Capacity：500 Sets, Year
Description
Basic Info.
Model NO. WA-481 Motor Servo Motor Rack German Helical Rack Rail Taiwan Linear Rail Pump 5.5kw / 7.5kw Inverter Delta Inverter Dust Collector 3kw with Double Bags Tool Sensor Automatic Ball Screw High Precision Transport Package Plywood Box Specification heavy duty cnc machine Trademark DLM Origin China HS Code 8469090 Production Capacity 500 Sets/ YearProduct Description
Four Axis CNC Machining Center Model WA-481| Model | WA-481 |
| Table area | 1220×2440mm |
| Traveling area | 1320×5500×500mm |
| Traveling speed | 60m/min |
| Working speed | 20m/min |
| Spindle power | 9.0kw which can be rotated from 0 to 180 degree |
| Spindle speed | 24000r/min |
| Working voltage | AC380V/3PH/50HZ |
| Driving system | Yaskawa |
| Controller | Syntec / OSAI |
| Table structure | T-slot vacuum / T-slot / Vacuum |
| ACT | Linear |
| Optional | safety protection guard / double station / vacuum cup / Partition table / Vacuum pump. |
