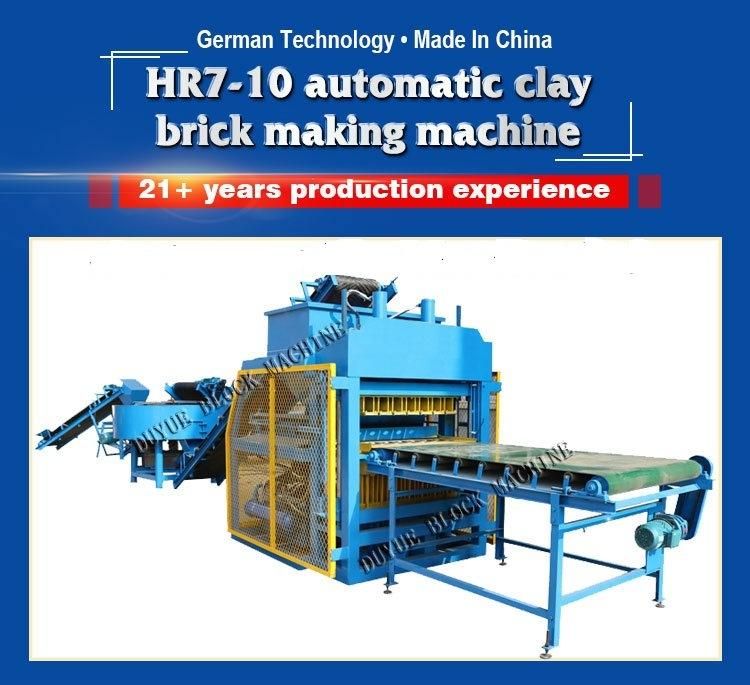

Hr7-10 Hydraulic Pressure Fully Automatic Hollow Brick Making Machine for Sale in USA
Linyi Duyue Import and Export Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
- Rate Voltage：380-440V as Requested
- Pressure：30-35MPa
Base Info
- Model NO.：Hr7-10
- Total Weight：2900 Kgs
- Moulding Cycle：7-10s
- Total Machine Power：18.5kw
- Shaping Way：Hydraulic
- Color：Customized
- Transport Package：Container
- Specification：2400*1900*2380mm
- Trademark：DUYUE
- Origin：China
- HS Code：8474802000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Model NO. Hr7-10 Total Weight 2900 Kgs Moulding Cycle 7-10s Total Machine Power 18.5kw Shaping Way Hydraulic Color Customized Transport Package Container Specification 2400*1900*2380mm Trademark DUYUE Origin China HS Code 8474802000 Production Capacity 100 Sets/YearProduct Description

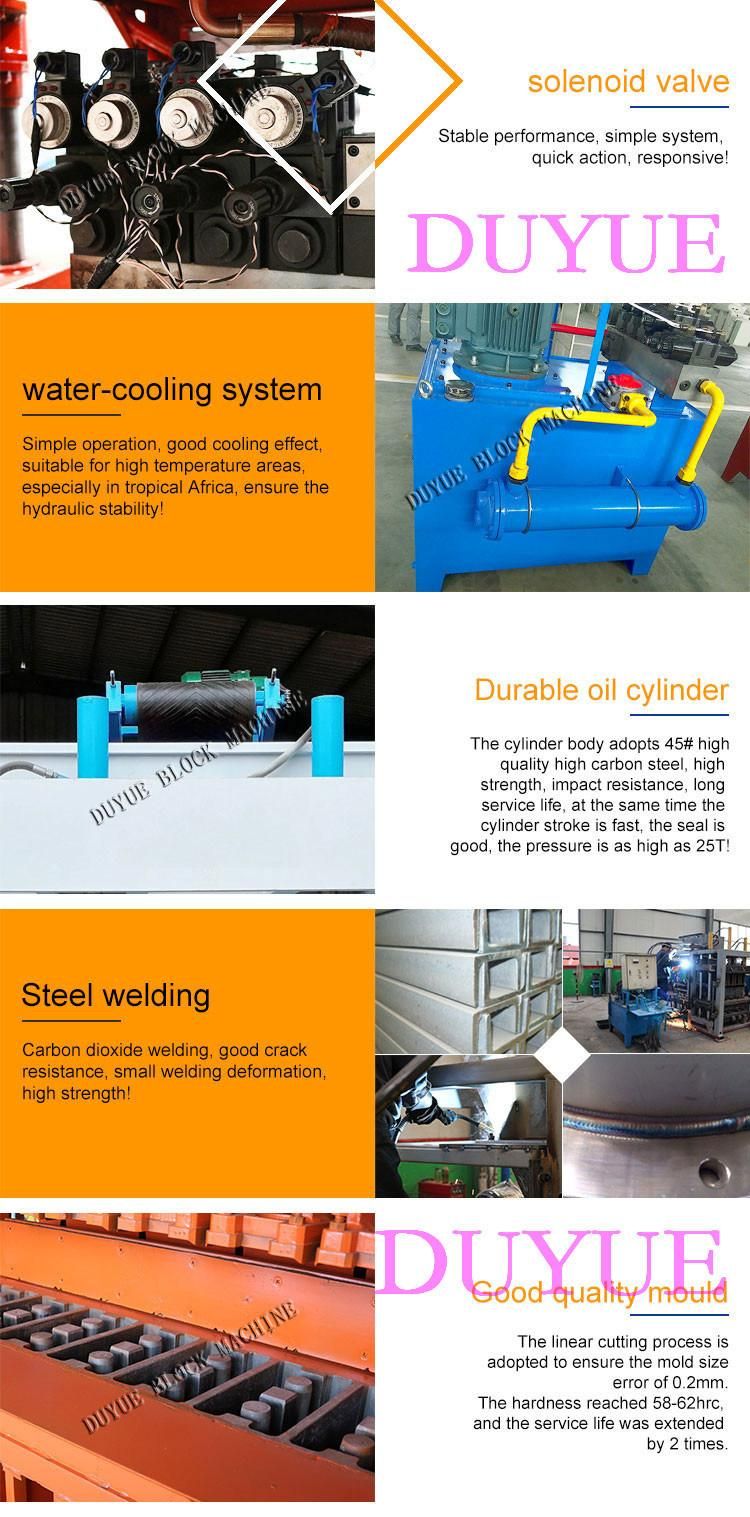

Main features of of HR7-10 fully automatic hydraulic soil interlocking brick machine clay brick moulding machine
1.Four guidepost, the moulds rise/drop steadily.
2.Adopt the proportional valves, can adjust the pressure through PLC control system.
3. There are two oil cylinder on top mould and one oil cylinder under down mould, up and down press at same time, the brick is much stonger.
4.There is the touch screen attached in PLC control box, can adjust the pressure through the touch screen, it is so easy.
5.Adopt the plunger pump and proportional valves, the pressure is double

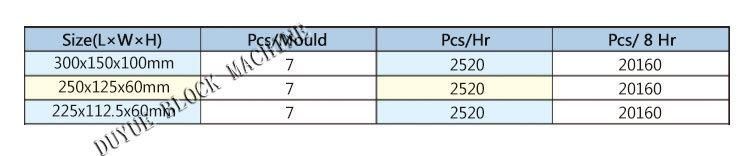

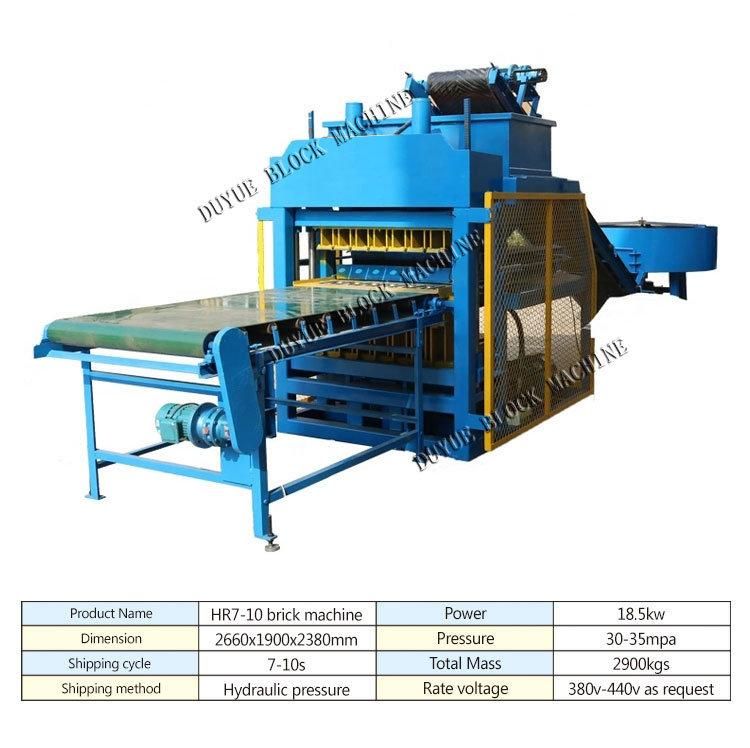

Main technical parameters
Theoretical production capacity
