ISO Approved Customized Xinnuo Main Nude Packing with Plastic Film Steel Metal Sheet Roll Forming Machine
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- After-sales Service：Door to Door
- Warranty：One Year
- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
Base Info
- Model NO.：720 floor deck machine
- Usage：Roof, Wall, Floor Deck
- Transmission Method：Electric
- Color：as You Like
- Trade or Factory：Factory
- Guarantee：1 Year
- Life Time：10 Years
- Service：Provide Engineer to Install The Machines
- Brand Name of PLC：as Customer Request
- Drawing：Designed as Customer Request
- Power：38V, 50Hz, 3 Phrase or as Your Like
- Decoiler Type：Manul, Electric, Hydraulic
- Control System：PLC
- Transport Package：Main Machine Nude Packing with Plastic Film
- Specification：6800*1500*1500
- Trademark：Xinnuo
- Origin：China
- HS Code：8455221000
- Production Capacity：30 Sets Per Month
Description
Overview
Product Description

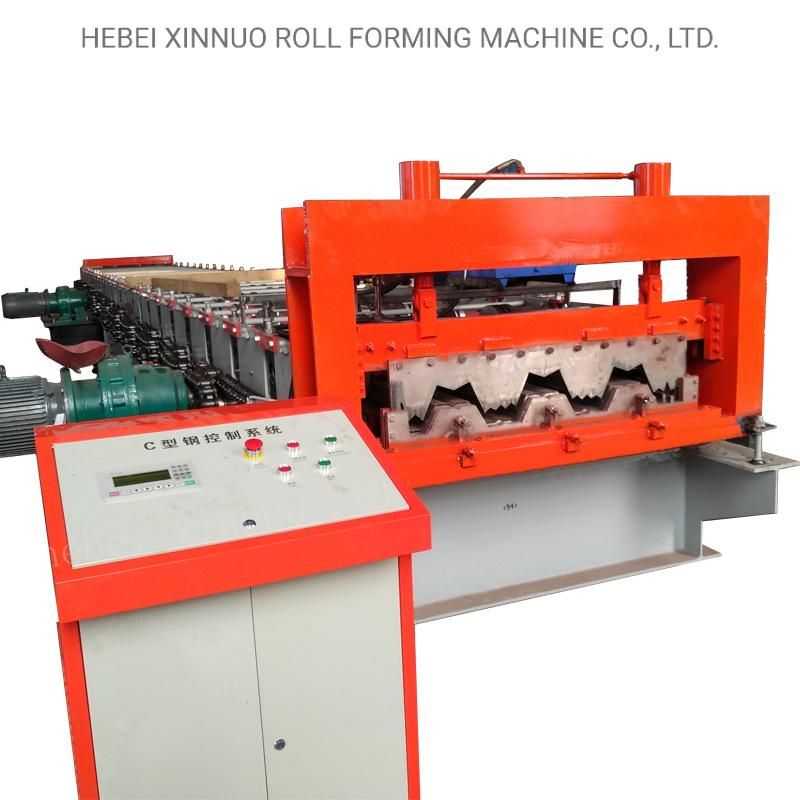

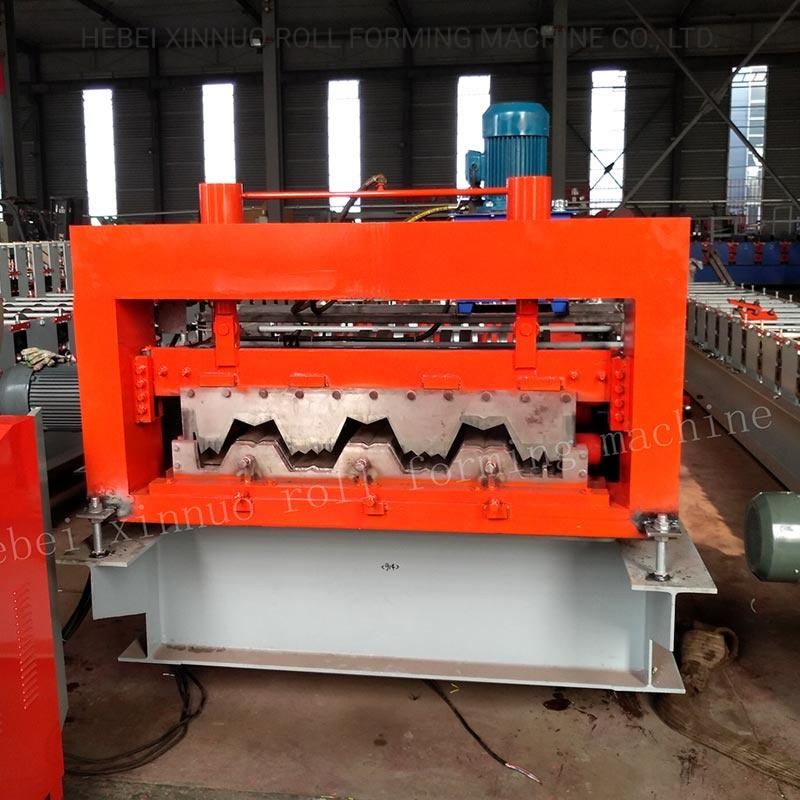

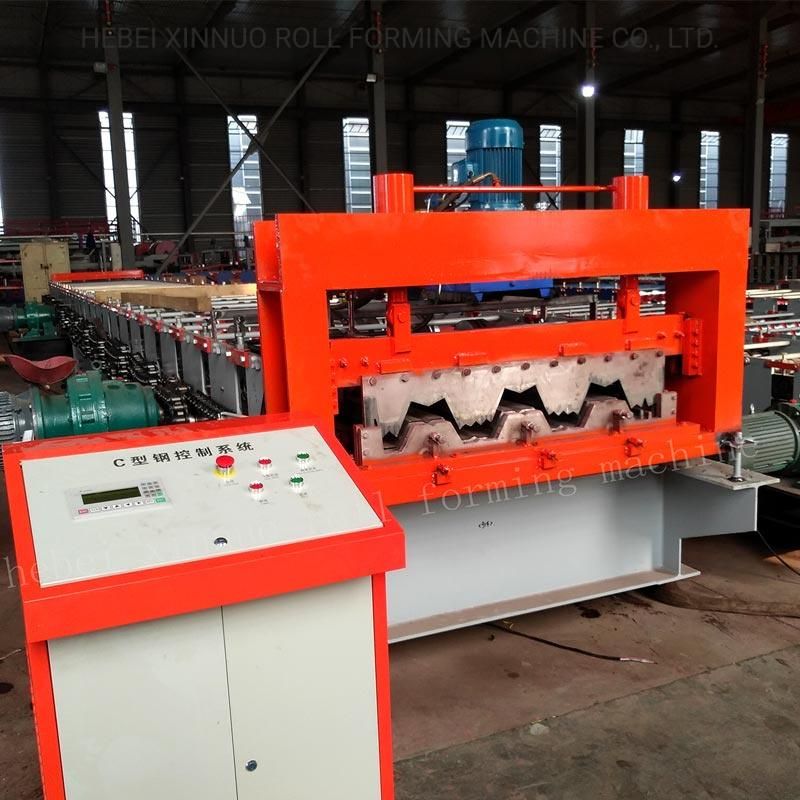

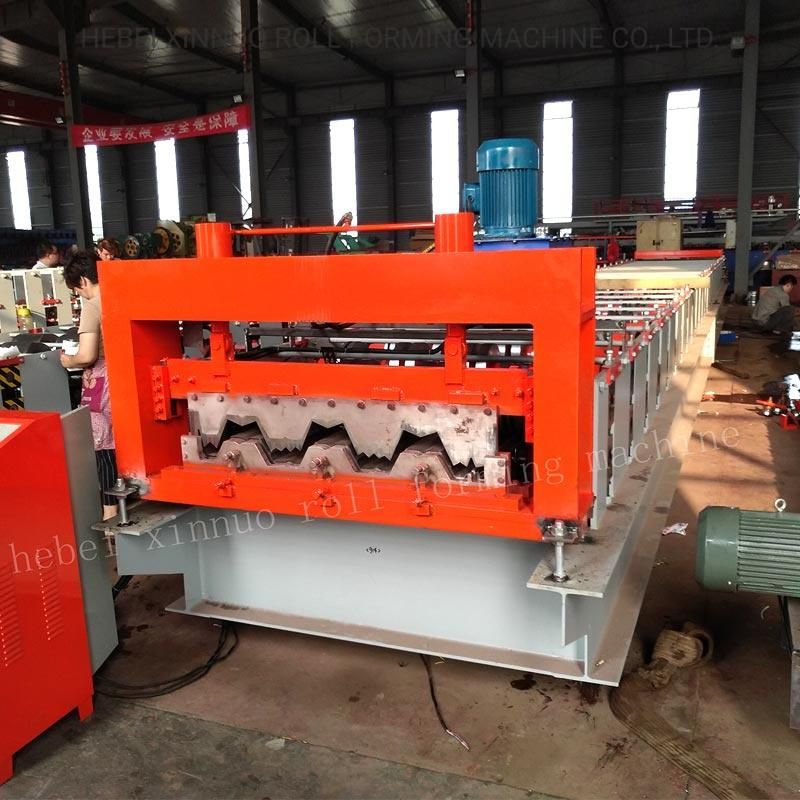

The whole equipment includes feeding platform, roll forming, automatic shearing device, hydraulic system, computer control system.
The suitable material can be color steel, aluminum sheet and galvanized sheet.
Configuration: manual unociler, main forming machine, gearbox motor, hydraulic system, cutter, output table.
Control system: automatically, adjustable speed, length-setting

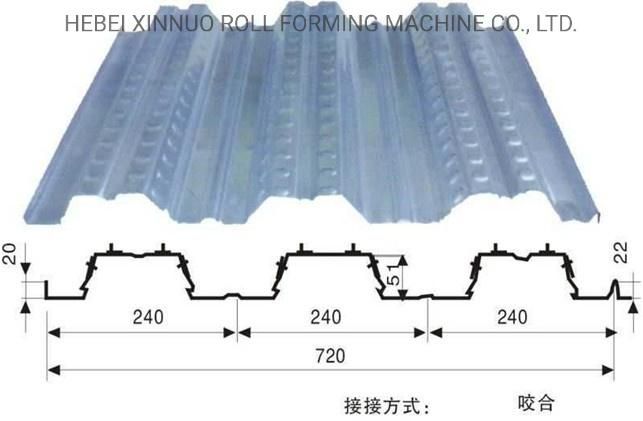

2. Main Parameter and specification of the floor deck roll forming mchine
We design each machine according to user requirement. Below techinical parameters can be adjusted if needed.
Configurations Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. Control System PLC Panasonic Inverter Main Frame 450mm H-Beam Main Power 18.5 kw Pump Power 15 kw Power Supply 380V, 3-Phase,50Hz Forming Speed 10m/min Roll Station 27 stands Roller Diameter 95mm Hydraulic Pressure 18-20MPa Forming Size 720mm Feeding Thickness 0.3-0.8mm Feeding Width 1000mm Backboard Thickness 22mm Chain Size 66mm Cutter Standard Cr12 Roller Standard Cr12 Cr-Plating Size 0.05mm Overall Size 15000×1200×1100mm Total Weight 19T NO Name Unit Qty 1 Manual decoiler set 1 2 Main machine for roll forming set 1 3 PLC Control system set 1 4 Hydraulic system set 1 5 Post cut set 1 6 Stacking set 1

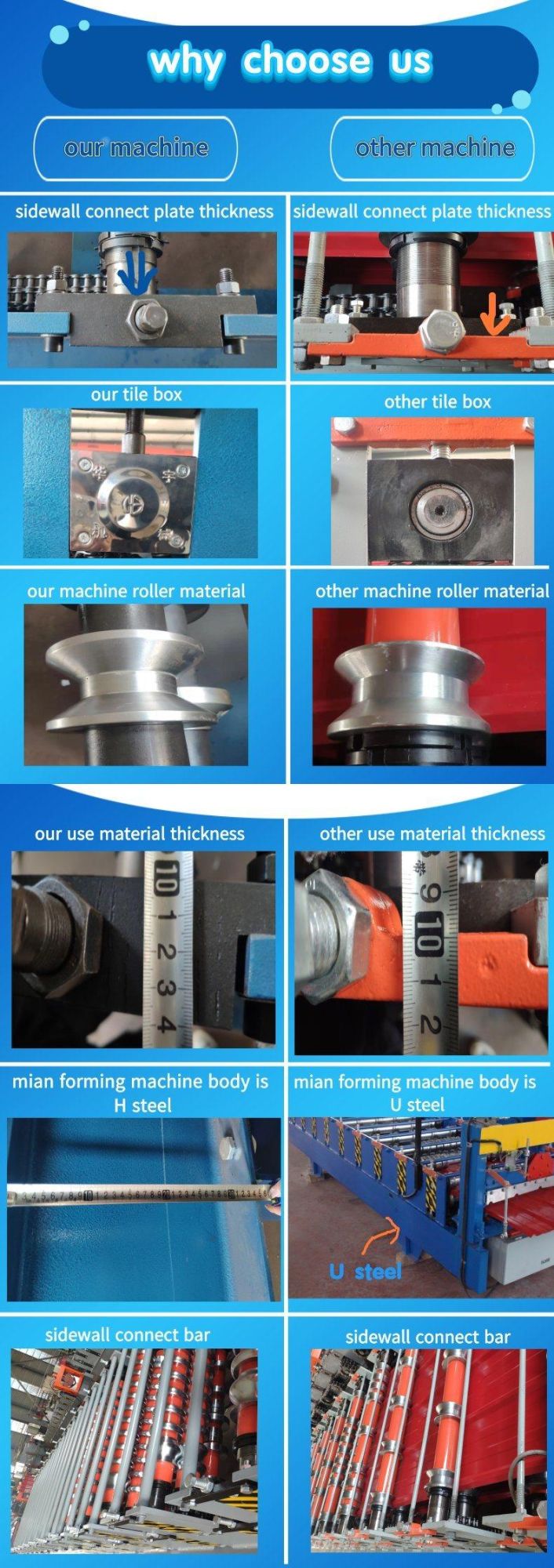

Our Advantages
Company Profile
1. the advantage of metal floor deck roll forming machine
Floor deck machine used for floor panel, it has high wave crest, high strength these features. And also automatic production, it has low cost good adhesiveness advantages. The product used in large workshop, roof construction and so on.The whole equipment includes feeding platform, roll forming, automatic shearing device, hydraulic system, computer control system.
The suitable material can be color steel, aluminum sheet and galvanized sheet.
Configuration: manual unociler, main forming machine, gearbox motor, hydraulic system, cutter, output table.
Control system: automatically, adjustable speed, length-setting
2. Main Parameter and specification of the floor deck roll forming mchine
We design each machine according to user requirement. Below techinical parameters can be adjusted if needed.
