Building Material Making Machinery

Full Automatic Vertical Welding Machine for UPVC Window and Door

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition:New
  • Certification:ISO, CE
  • Automatic Grade:Automatic
  • CNC or Not:not CNC
  • Voltage:220V
  • Input Voltage:380,220V 50Hz

Base Info

  • Model NO.:SHP4-CNC-3000B
  • Input Power:6.5kw
  • Air Pressure:0.6~0.8MPa
  • Air Consumption:240L,Min
  • Welding Height:25~150mm
  • Welding Width:≤140mm
  • Welding Range:400X400~1800X3000mm
  • Overall Dimension:4600X2000X2600mm
  • Transport Package:Plastic Cover, Plywood Cases, or Others
  • Trademark:YUEFENG
  • Origin:Jinan, Shandong
  • Production Capacity:100 Sets Per Month

Description

Basic Info.

Model NO. SHP4-CNC-3000B Input Power 6.5kw Air Pressure 0.6~0.8MPa Air Consumption 240L/Min Welding Height 25~150mm Welding Width ≤140mm Welding Range 400X400~1800X3000mm Overall Dimension 4600X2000X2600mm Transport Package Plastic Cover, Plywood Cases, or Others Trademark YUEFENG Origin Jinan, Shandong Production Capacity 100 Sets Per Month

Product Description

full automatic vertical welding machine for upvc window and door

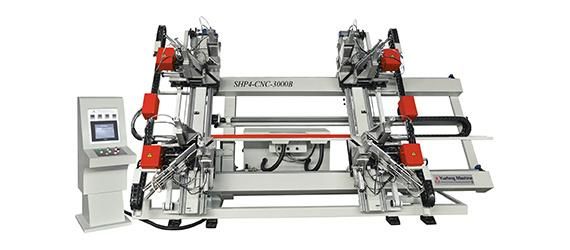

Full Automatic Vertical Welding Machine for UPVC Window and Door

  Automatic welding head positioning. The length located by ball screw makes high accuracy.
The machine heads automatically back to the original position, easy operation.
Feeding system adopts imported linear guide pair, with high accuracy and smooth working.
Size tolerance compensation is available to increase welding precision.
Common profile fixture along with the machine can meet various height profiles' processing
requirement.
Back plates are convenient to change, when connecting joints, the two clamping boards
feed symmetrically results parallel welding, increasing the welding strength.Imported computer control system, easy operation and high stability.

Technical Parameter:
Model SHP4-CNC-3000B
Input voltage380V 50Hz
Input power    10Kw
Air pressure0.6~0.8MPa
Air consumption200L/min
Welding height 25~150mm
Welding width ≤140mm
Welding range  400×400~1800×3000mm
Overall dimension4600×2000×2600mm



Full Automatic Vertical Welding Machine for UPVC Window and Door

Full Automatic Vertical Welding Machine for UPVC Window and DoorFull Automatic Vertical Welding Machine for UPVC Window and Door

RFQ:

1.Are your company a trading one or a factory?

Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
