• Model NO.：QMY4-45
• Voltage：380V , 50Hz
• Power：6.5kw
• Colour：According to Your Demand
• Brick Raw Material：Concrete
• Dimension(L*W*H)：1600X1500X1700mm
• Transport Package：Iron Box or Nude Package or Container
• Specification：CE SGS ISO
• Trademark：HENRY
• Origin：Shandong Linyi
• HS Code：8474802000
• Production Capacity：2560 PCS of 40X20X20cm Hollow Blocks with 8 Hours

Basic Info.

Model NO. QMY4-45 Voltage 380V / 50Hz Power 6.5kw Colour According to Your Demand Brick Raw Material Concrete Dimension(L*W*H) 1600X1500X1700mm Transport Package Iron Box or Nude Package or Container Specification CE SGS ISO Trademark HENRY Origin Shandong Linyi HS Code 8474802000 Production Capacity 2560 PCS of 40X20X20cm Hollow Blocks with 8 Hours

Product Description

Cell phone:Allen


        Henry Industrial Co., Ltd has been committed to designer, manufacturer, saler of construction
machinery, has the domestic advanced equipments, super professional skills. With over 23 years of
experience, we produce a wide range of products like hollow block machine, soil brick machine,
interlocking brick machine, paving machine, crusher, mixer, block mould and paving mould.

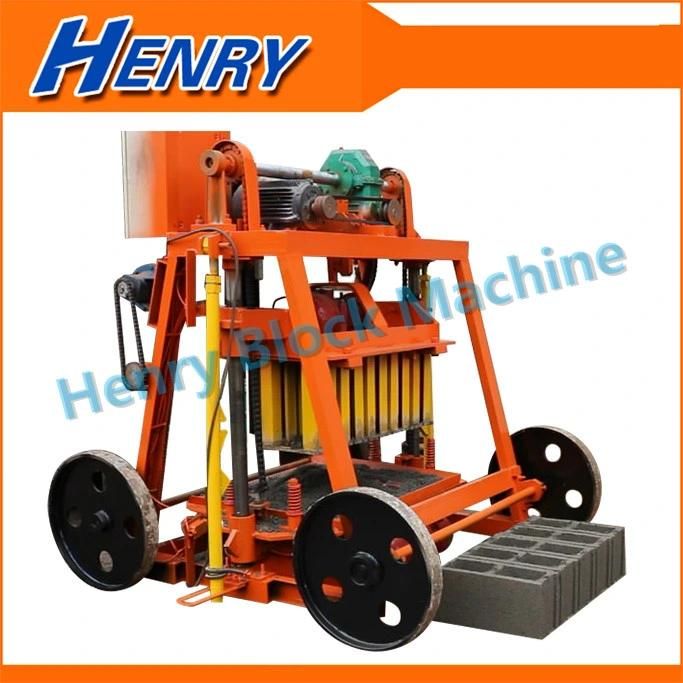

QMY4-45 movable egg laying hollow block machine



machine specification


Rated  power	6.5kw
overall size	1600X1500X1700MM
cycle	45 seconds
pallets size	NO need pallets
vibration force	30KN
vibration frequency	4000/Minute
rated pressure	30 Mpa
total weight	1200kg
electricity source	380v/50HZ

Advantages of QMY4-45 block machine (for sell)
1. As is known as egg type machine
2. taking use of the three-phase, power strong
3.reasonable structure ,simple operation, time saving,
4.without pallets, reducing the cost of pallets.
5.It Is the particular model for a family of medium and small investors.

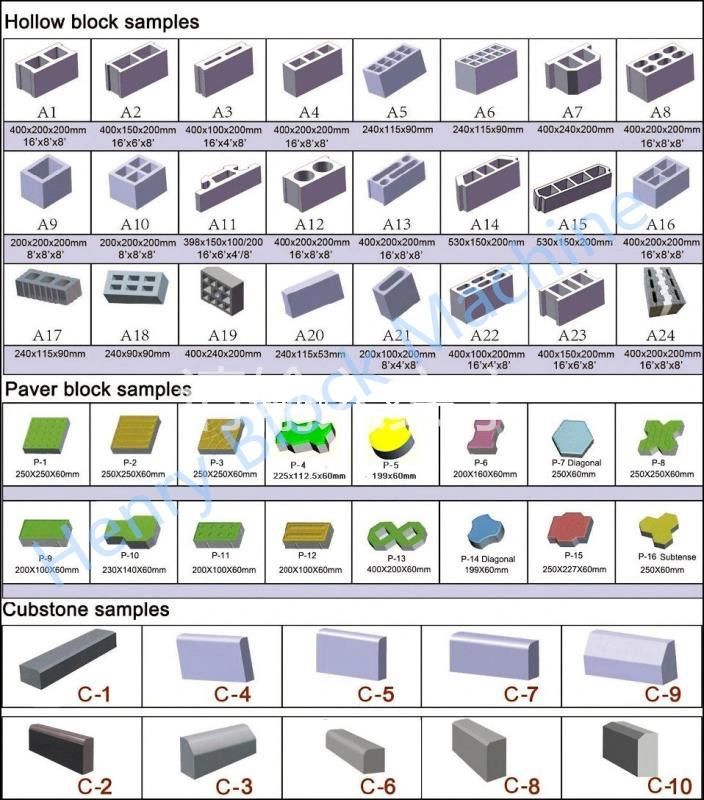

Capacity Table

Size	Pcs per Mould	Pcs per Hour
400*200*200mm	4 pcs per Mould	320 pcs per Hour
400*150*200mm	5 pcs per Mould	400 pcs per Hour
400*100*200mm	7 pcs per Mould	560 pcs per Hour
500*150*200mm	5 pcs per Mould	400 pcs per Hour

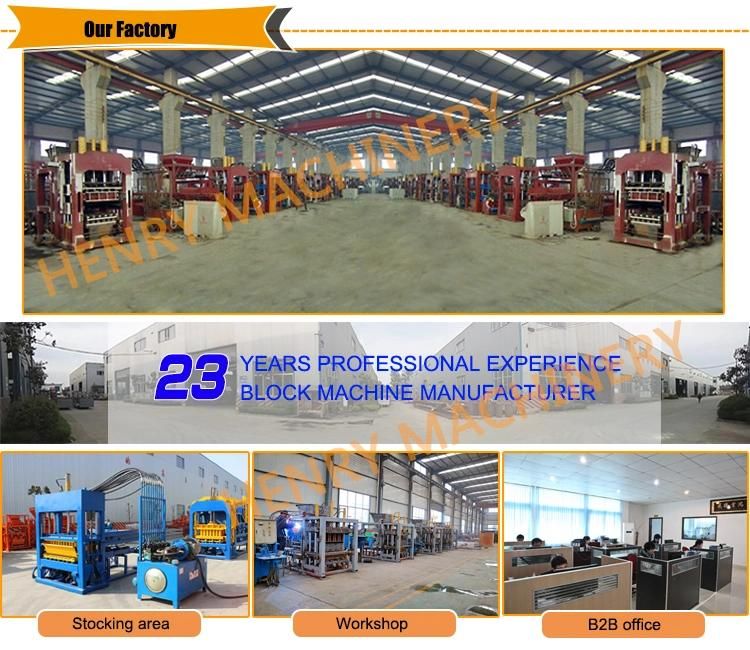

company profile



Qur sevice

Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity
and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line any time, if you need, we can Make invitation
letter for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer  training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other

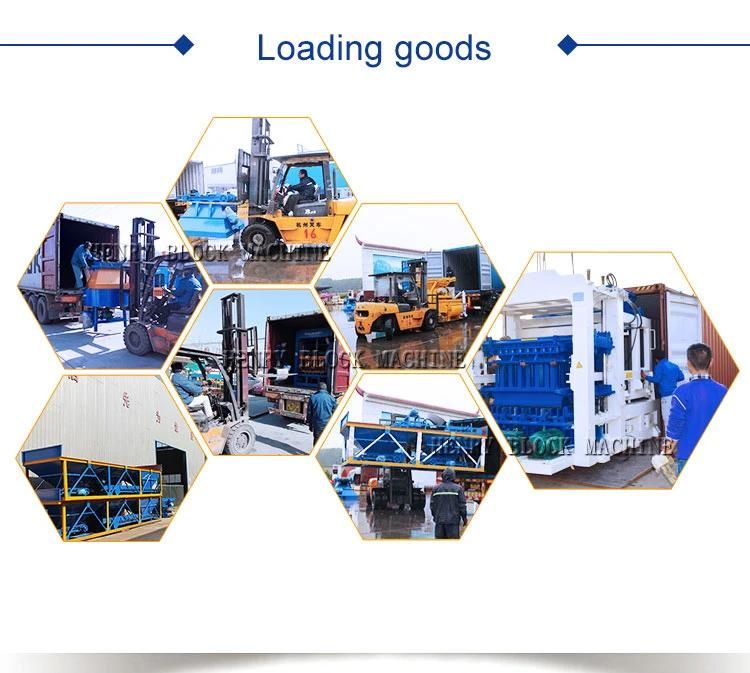

 Shipping way

We have our own long cooperate shipping company, they can offer the best freight. And if you would like, we can use your shipping company to sent the machines.
