• Model NO.：828
• Trade or Factory：Factory
• Guarantee：1 Year
• Life Time：10 Years
• Service：Provide Engineer to Install The Machines
• Brand Name of PLC：as Customer Request
• Drawing：Designed as Customer Request
• Power：38V, 50Hz, 3 Phrase or as Your Like
• Decoiler Type：Manul, Electric, Hydraulic
• Control System：PLC
• Transport Package：Main Machine Nude Packing with Plastic Film
• Specification：6800*1500*1500
• Trademark：KXD
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. 828 Trade or Factory Factory Guarantee 1 Year Life Time 10 Years Service Provide Engineer to Install The Machines Brand Name of PLC as Customer Request Drawing Designed as Customer Request Power 38V, 50Hz, 3 Phrase or as Your Like Decoiler Type Manul, Electric, Hydraulic Control System PLC Transport Package Main Machine Nude Packing with Plastic Film Specification 6800*1500*1500 Trademark KXD Origin China HS Code 8455221000 Production Capacity 30 Sets Per Month

Product Description

KEXINDA  828 Glazed Metal Tile Roll Forming Machine In Stock



A. Our Advantage

1.PLC Automatic Computer Control
2.Operation Easy
3.Running Is Safe Steady And Reliable
4.Lifetime Repair Guarantee

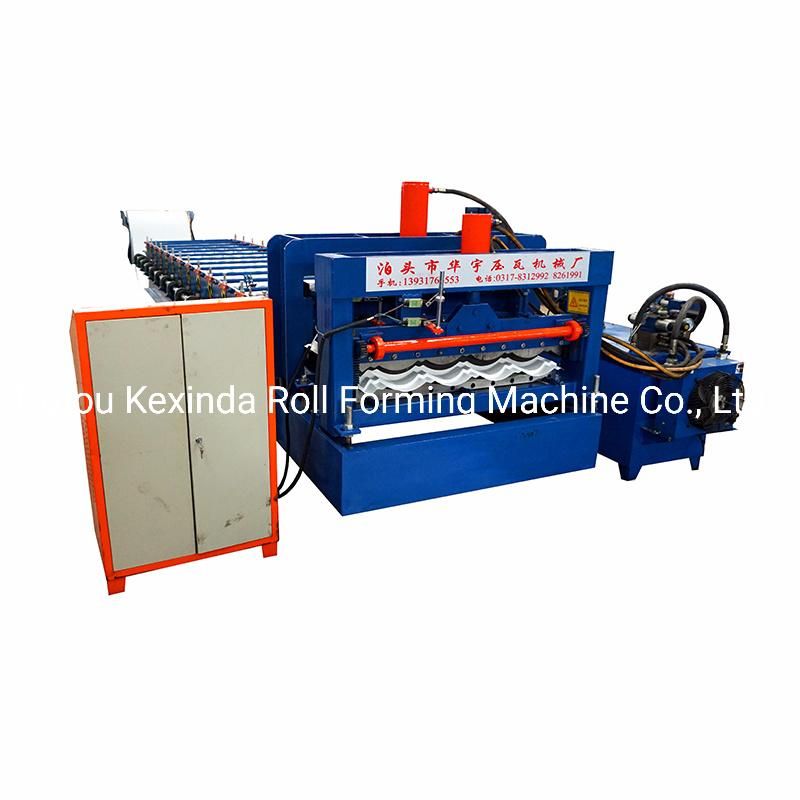

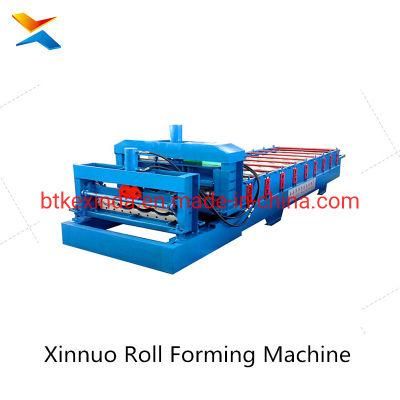

B. Machines Pics And Sample





C.Technical Parameters


1	Suitable material	Colored steel plate, galvanized board, aluminum plate
2	Width of the raw material	1200mm
3	Rows of rollers	13 rows
4	Appearance size	7.3*1.45*1.55m
5	Total power	4kw
6	Thickness of raw material	0.2-0.8mm
7	Productivity	3-4m/min
8	Diameter of shaft	¢70mm
9	Voltage	380V  50Hz 3phases

(Just refer for customer,Detailed quotation please contact us to get more.)



     Components and technical specification


No		Technical specification
1	Manual uncoiler	Usage:It is used to support the steel coil and uncoil it in a turntable way.The steel coil is uncoiled by hand.Loading capacity:5t Inner diameter:500-508mm
2	Feeding table	Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.
3	Main roll forming machine	Material of rollers:45# steel,roller surfaces polishing, hard plating , the polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
4	Shearing mechanism	It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades:Cr12,quenching treatment
5	Press form	Press form Material of blades:Cr12,quenching treatment
6	Hydraulic system	Power:4kw,hydraulic oil:40# Hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.
7	Computer control cabinet	The target piece`s length is adjustable and digit of it can be adjusted.Computed mode has two modes:Automatic and manual one.The system is easy to operate and use PLC
8	Spare parts	One box

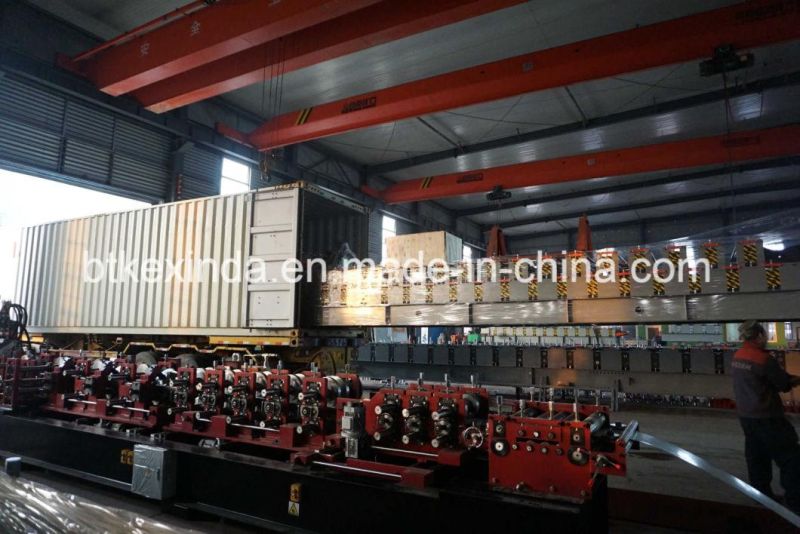

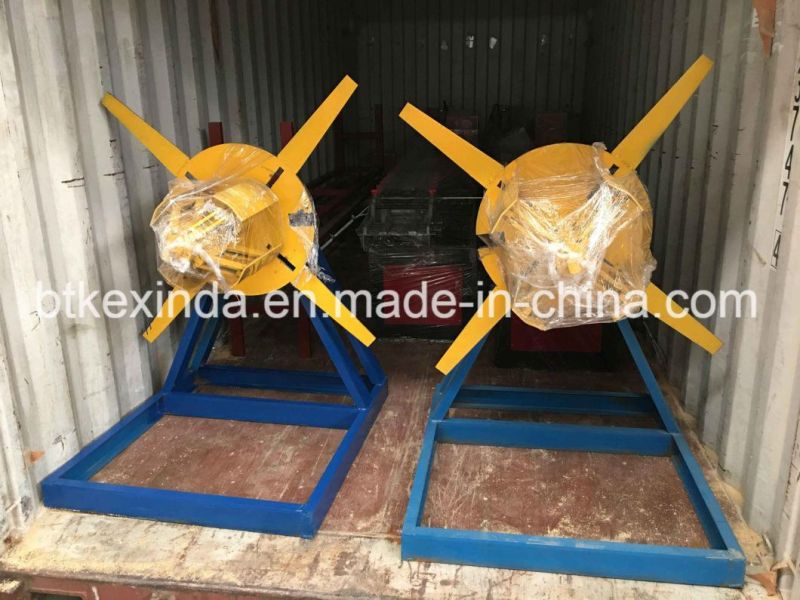

D.Shipping & Packing

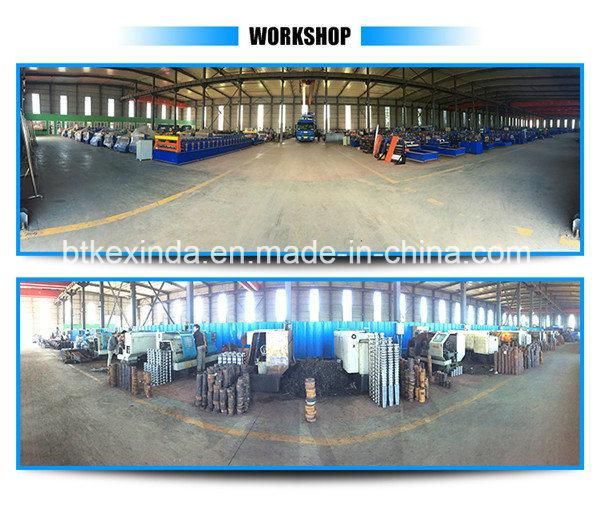

E. Company Information



Hebei Kexinda Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

     Strong technical resources are the most stable guarantee for our products' quality. We adopt computer software for design drawing, production drawing and installation drawing for steel construction equipment. We adopt advanced computer digital inspection and produce high quality light steel structure equipment. Our technical is updating day by day !

     Our sales network covers all over China. We also sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia, Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria, Libya, Ghana, Sudan, Saudi Arabia, the United Arab Emirates, Turkey, Azerbaijan and other markets.

     Our company has matured after-sale service network, we could provide efficient and satisfactory service for you throughout the period of our cooperation.If necessary, we can supply you with local technical support and send technicians to for installation and operation training.



F. Customer Visit And Exhibition





G. FAQ

1.How to play order :

Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK

2.How to visit our company :

Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.

Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.

3.When we exported the machines :

We have beening making and exporting the machines since from the year of 1998.

4.*Guarantee* :

Lifetime maintenance guarantee.If some part of the machine is broken.We will supply the best original parts for the machine from our own factory. If the parts are damaged due to improper operation, buyer will pay for the freight.


5.*After-sales* :

To give you the best after-sales service, the first give you video call with professional technicians , the second we send technicians to your country to repair the machine,
The buyer shall bear all expenses, including visa, round-trip airfare and suitable accommodation, and pay the salary of usd 100 / day.

6.Contact us:

If you want to get more pictures or videos of the machines, feel free contact us.
We will give you the best experience!



                                                                   THANK FOR YOUT TIME !
                                                    WAITING FOR YOUR MESSAGE !
