Building Material Making Machinery

Full Automatic Ceiling Main T Grid Roll Forming Machine

DongGuan KaiGui Machinery CO., Ltd.
  • Warranty:1 Year
  • Certification:CE, GS, ISO9001
  • Customized:Customized
  • Condition:New
  • Control Type:PLC
  • Automatic Grade:Automatic

Base Info

  • Color:Tailored
  • Speed:25-30me
  • Station:18-24 Passes
  • Power:21.2kw for Main Tee Machine
  • Hydraulic:with Nitrogen Storage
  • Supplier Type:Real Factory Most Professional
  • Transmission:Worm Gearbox,Chain
  • After-Sale Service:Provided
  • Transport Package:Export Standard Packing
  • Specification:18meters
  • Trademark:KAIGUI
  • Origin:China
  • HS Code:8455229090
  • Production Capacity:150sets,Year

Description

Basic Info.

Color Tailored Speed 25-30me Station 18-24 Passes Power 21.2kw for Main Tee Machine Hydraulic with Nitrogen Storage Supplier Type Real Factory Most Professional Transmission Worm Gearbox/Chain After-Sale Service Provided Transport Package Export Standard Packing Specification 18meters Trademark KAIGUI Origin China HS Code 8455229090 Production Capacity 150sets/Year

Product Description

1. Product detail:
Full Automatic Ceiling Main T Grid Roll Forming Machine

Product size: H*W(MM)38x35; 38x24; 38x15; 32x24; 32x15; 28x24; 28x15 etc. Length: 3600/3660mm
Any size and any demand we can do as per customer's drawing or sample.

⊙ Main Components(A----F):
A(2 Uncoilers for GI& PPGI) + B(Main Machine Roll Former) + C(Automatic Punching& Cutting-off System) +D(Electric PLC control Cabinet) + E(2 Hydraulic standions) + F(Run-out Table)
⊙ Main Parameter:
Stations: 18-24 Stations
Speed: 20--25M/Min(6--7Pcs/Min)
Total Power: 21.2KW(4KW+2.2KW+15KW)
PLC brand: Siemens
Human-Machine interface: Siemens
Installation length: 14.8M
Die/Mould Material: SKD11
Customer's Logo: Ok
Anti-Fire Hole: OK
Stitching Line: Ok
Steel Head Lock: Ok
Transmission: Worm Gearbox Reducer/ Gear/ Chain
Main Hydraulic station with Accumulator for stable and precise performance

A: Uncoiler/Decoiler/Coil Opener/Raw Material Shelf:
Code: MT-200;
Weight: 100kg;
Size: 1000*800*1100(mm)
Raw Material Roll :
Inner Diameter: 450-530mm
Outer Diameter: 1200mm
Loading weight: 1000kg
Make sure the GI and PPGI
Unoiler in the exact line with

B:Main Former Machine

☆ Station/Pass/Pinion: 18 stations
☆ Speed: 20---25M/Min(6--7Pcs/Min)
☆ Machine body: Carbon Steel, Thickness 20mm, Polished, Rust Prevention Paint Protection,Any color available
☆ Transmission: Motor 4KW, Main Transmission: Chain Drive, Between Rollers: Worm wheel Gearbox
☆ Stitch: Four Rollers real stitch, can also be used for fake stitch.
☆ Side plate: Thickness 30mm, Polish 6 sides, high precision boring
☆ Principal Axis: 45# steel, tempering heat treatment, mill grinder precise making
☆ Electric Cabinet: SIENENS PLC programmed, Touch Screen, FullY Automatic controlling system.
☆ Punching Die: Material D11, Hardness HRC 58-60, Precise milled, precise making, easy to removable parts.
Stitching Mechanism
☆ Roller: Material Cr12 Inner diameter 39mm, Min OD 90mm, HRC 55-56, Symmetry in the range of 0.05mm

C Automatic Punching and Flying Cutting-off System:
Features:
☆ Punching Die: 24 sets( 2 head locks 22 Main Tee holes)
☆ Anti-Fire Hole Die Available on Machine
☆ Cutting: Flying Cutting-Off Contineous working non-stop
☆ Driving Force: 2 Hydraulic stations one for Punching mechanism travel and one for punching
☆ Accurancy: Height and Width within 0.1mm; In Length 0.3mm/Meter
☆ Die Material: 45# steel and Cr12MoV, Heat treatment Vacuum 58--60HRC
☆ Cutting off Length: 3600 or 3660mm
☆ Hole Distance: 150cm or 6"
☆ Custom Logo Punching at same time on Machine Fully Automatic

D Electric PLC control Cabinet
Features:
☆ PLC brand: SIEMENS
☆ Human-Machine Interface: SIEMENS
☆ Inverter: Teco Taiwan brand
☆ Switch Power: Delta Taiwan brand
☆ Wire connection interface: Aviation plug

E Hydraulic stations
Features:
☆ Hydraulic brand: LYHP
☆ Electromagnetic valve: HUADE brand
☆ Accumulator: Nitrogen
☆ Main Hydraulic: 15KW
☆ Secondary Hydraulic: 2.2KW
☆ Color: Any color available

F Run-out Table
Features:
Size: 3800x750x970mm
Finish: polish
Material: Stainless Steel 304 the outward surface painted protection, Any color available
This compenent is working desk. Product will drop onto the table and slide out smoothly, so it avoids scratching and easy for packing. And there are waste grooves upgrade to conduct the waste steel odd ends to the barrel.



Full Automatic Ceiling Main T Grid Roll Forming Machine

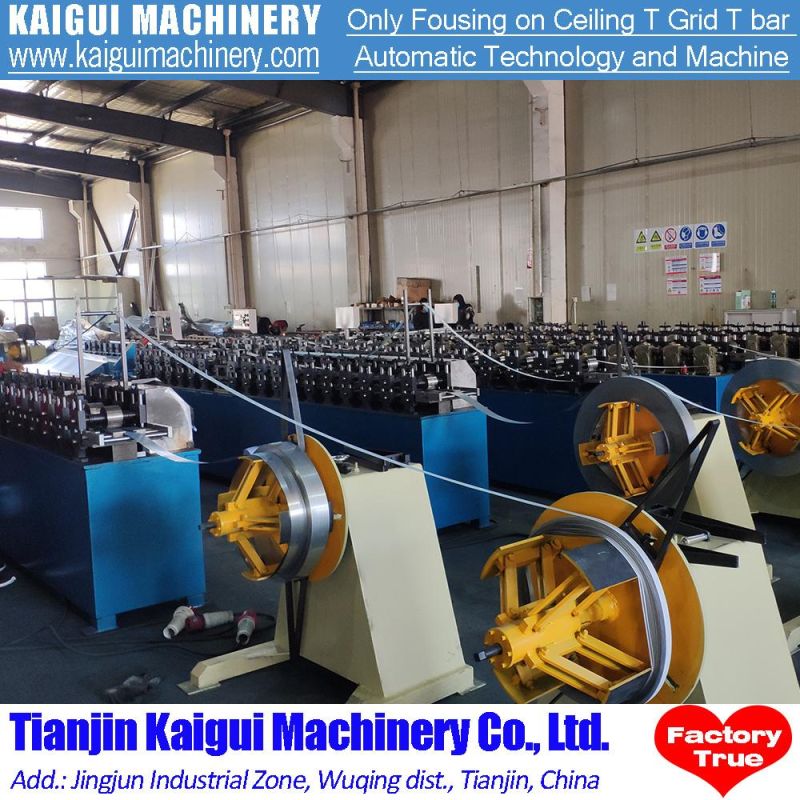

Raw material supplying rack picture :


Full Automatic Ceiling Main T Grid Roll Forming Machine

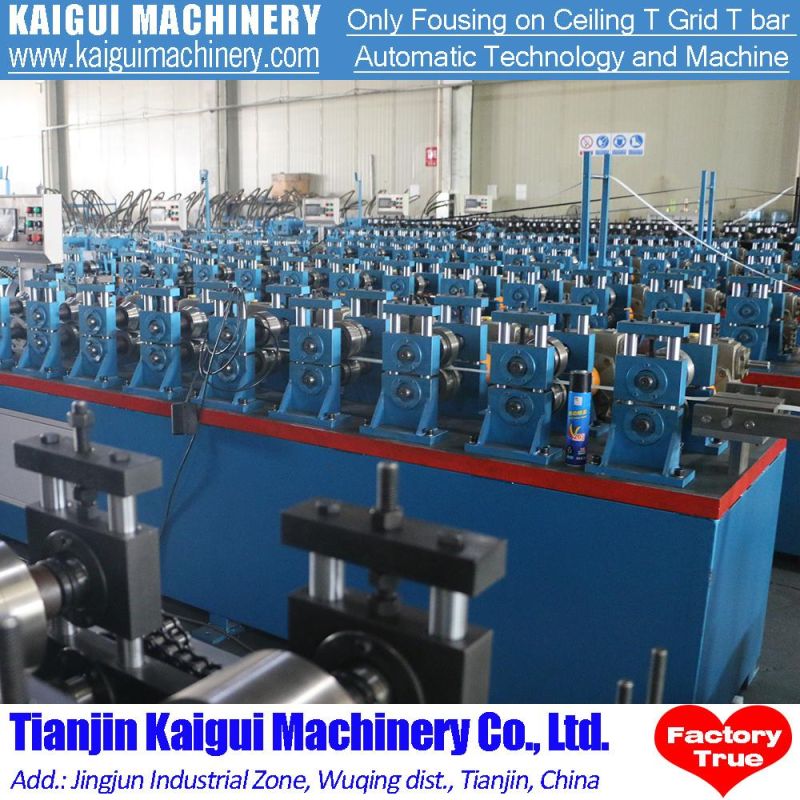

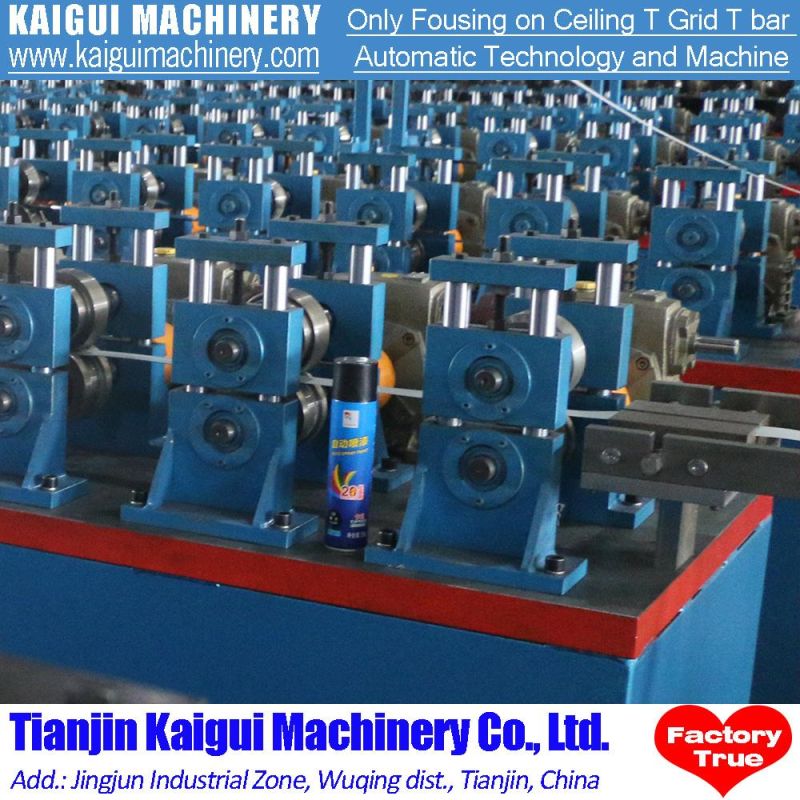

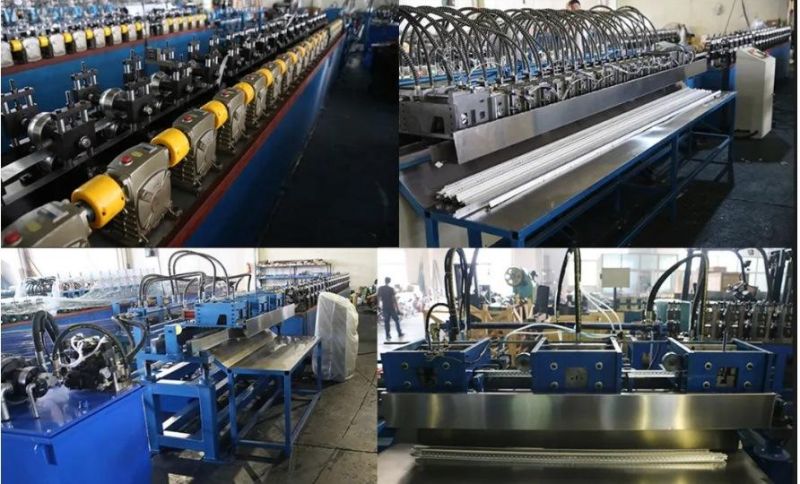

Roll Forming Machinery:


Full Automatic Ceiling Main T Grid Roll Forming Machine

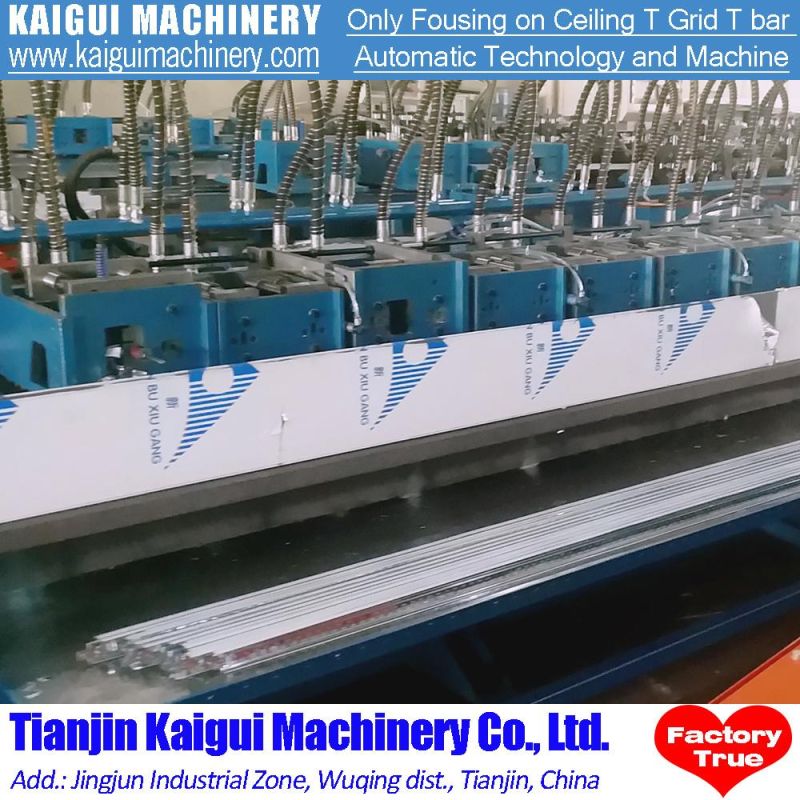

Flying Tracing Cutting System:

Full Automatic Ceiling Main T Grid Roll Forming Machine


For more to visit our website:  kgmachinery.en.made-in-china.com


Below are Youtube video:
https://kgmachinery.en.made-in-china.com FUT long cross Tee machine
https://kgmachinery.en.made-in-china.com Fully automatic flat Long cross Tee machine
https://kgmachinery.en.made-in-china.com Fully automatic Flat cross tee
https://kgmachinery.en.made-in-china.com Fully automatic Main tee making machine
https://kgmachinery.en.made-in-china.com Fully automactic Flat Main tee punching

2. Company introduction:

Kaigui Machinery
 is just focusing on Ceiling T-grid Roll Forming Machine in China. Almost all Chinese T bar and T Grid Factories are using our machines or let us retrofit and upgrade their old machines. My boss Mr. Jiang  enjoys high reputation in this industry. In the export market.

Many trading companies are using our factory or picture to deceive customers internationally.We are gravely announcing here: Only Tianjin Kaigui Machinery, my boss Mr. Jiang JunQing and Erin and website: kgmachinery.en.made-in-china.com are the real and true.
Full Automatic Ceiling Main T Grid Roll Forming Machine
Full Automatic Ceiling Main T Grid Roll Forming Machine
Full Automatic Ceiling Main T Grid Roll Forming Machine

3. Customer come to our factory:
Full Automatic Ceiling Main T Grid Roll Forming Machine



4. Why choose us:


  • T-bar roll forming machine mould processing and designing we are specialized and No. 1 in China
  • T-bar ceiling machine performance reaches to the optimum because we have our own Electric PLC engineer
  • Suspension ceiling T-bar machine we are just focusing and dedicated this kind machine for 15 years
  • Fully automatic T-bar ceiling roll forming machine we are the first producer and leading the technology in China
5. Package:

Full Automatic Ceiling Main T Grid Roll Forming Machine

6. FAQ:

1) Q: Are you manufacturer or trading company?
A: We are manufacturer .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
    2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. All the machinery could be customized.

If any inquiry, pls feel free to contact us!!
