• Model NO.：request
• Usage：Roof, Wall
• Transmission Method：Hydraulic Pressure
• Transport Package：Nude in Container
• Specification：6800*1500*1300mm
• Trademark：dixin
• Origin：Botou Hebei China
• HS Code：84552210
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. request Usage Roof, Wall Transmission Method Hydraulic Pressure Transport Package Nude in Container Specification 6800*1500*1300mm Trademark dixin Origin Botou Hebei China HS Code 84552210 Production Capacity 30 Sets/Month

Product Description

836mm Color steel corrugated sheet cold roll forming machine
This Cold steel roofing panel roll forming machine is designed by our professionals utilizing high grade component. Steel type Roofing Panel has a beautiful appearance and bright color. It is widely used in garden, factory, resort, hotel, exhibition hall, vacationland,ancient architectures and modern villa. Machine is customized.

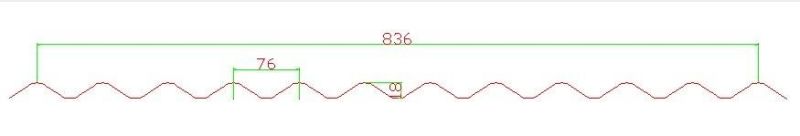

1.Panel drawing according to your request



2..Equipment detailed parameters:

1.Processing material	aluzinc/galvanized steel/colored steel coil
2.Material thickness	0.3-0.8mm
3.Feeding width:	1000mm
4.Effective width	836mm
5.Main motor power	4kw
6.hydraulic pump power	4kw
7. Shaft diameter	75mm
8.Forming steps	15steps
9.Main frame	300H Steel frame
10. Side plate thickness	16mm
11.Roller material	45# forged steel, with hard chrome plating
12.Control systerm	(Taiwan brand)Delta PLC control system with touch screen
13.Cutting blade material	Cr12
14.Working speed	About 10-12m/min
15. Transmission way	1 inch chain drive
16. Machine size (mm)	About 6800*1600*1300mm
17. Machine weight	About 3 ton
18.Power supply	380v,3phase,50hz or accodring to customer request

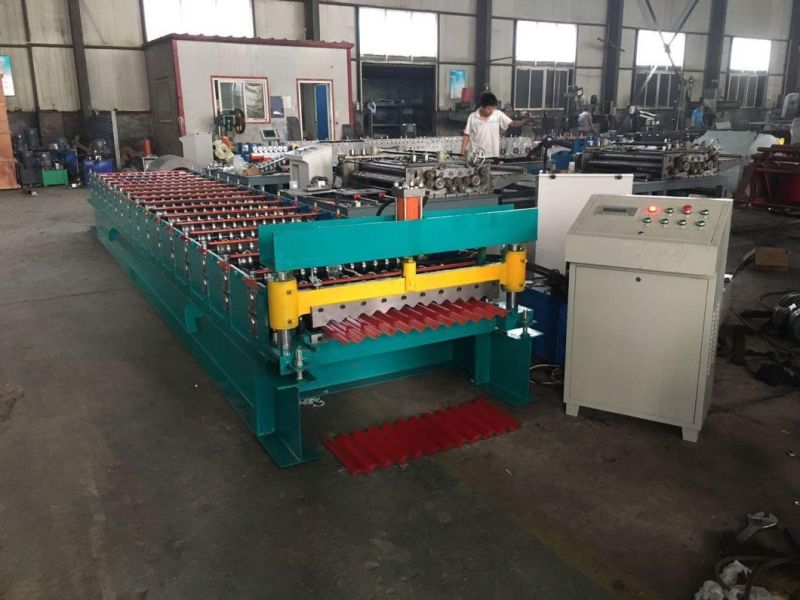

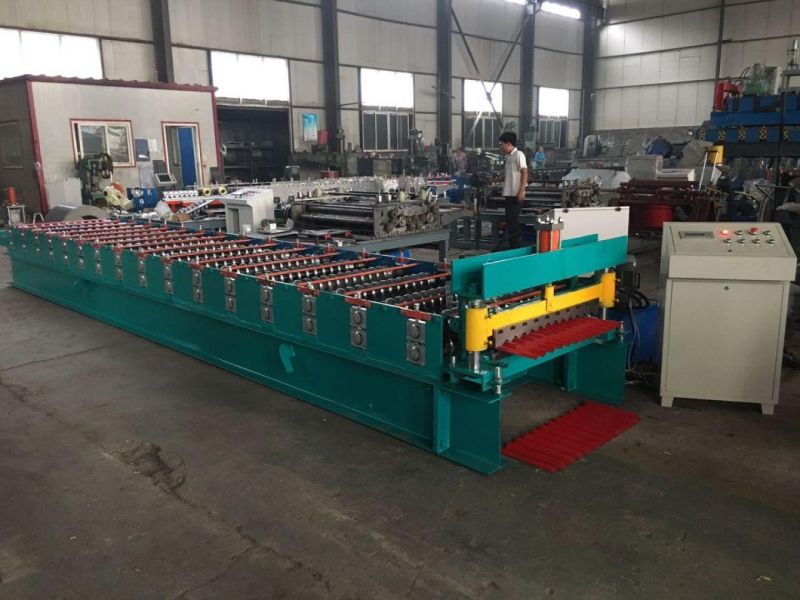

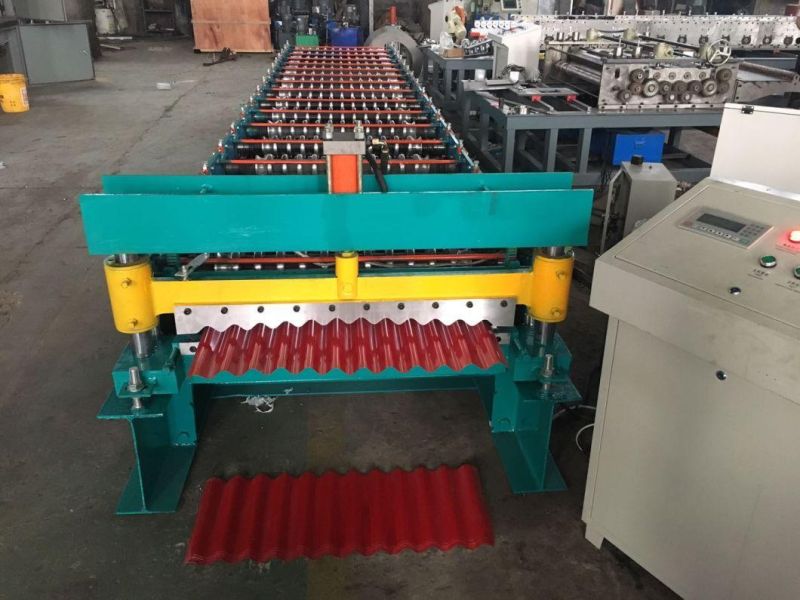

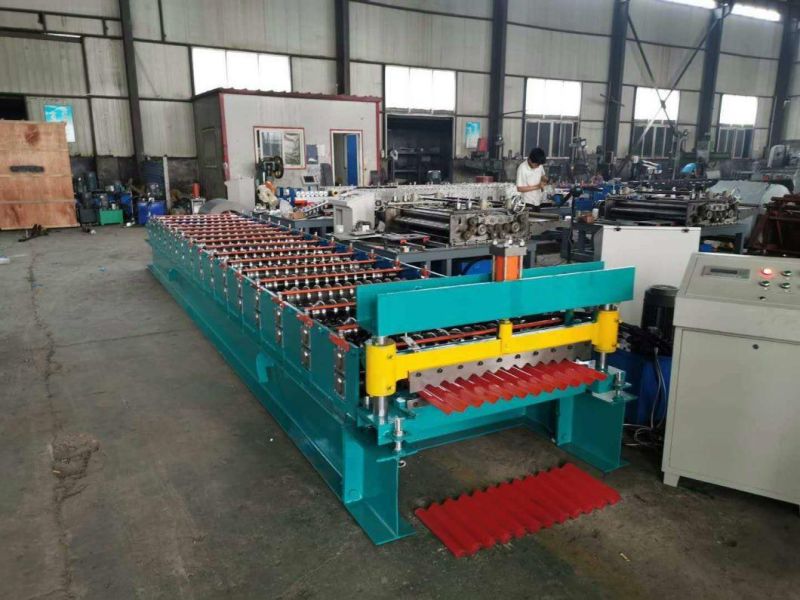

3.Some machine pictures for your reference.





4.Packing and shipping details
Main machine is nude in container with PE plastic film.Then fixed by steel wire.




5.Our service
1). Our machine warranty is 3 years (non-man-made damage, accessories, technical support)
2). Technical guide is provided during whole life of the machine.
3). Oversea services will be provided but any cost thus incurred will be paid by the buyers.
4). We support customes inspect our factory or machines by video call.
5).After customer inspect the factory,if need translator service,we also can supply this service.10USD/H for salary.
6).Customer LOGO,Tel, can customize on our machines.
7).Voltage can customize according to customers'requirement.
8).If need raw material,we can supply the good suppliers for steel coil,alumium coil,steel strip and so on.
9).If need more machine pictures or videos,please contact me soon.


6.FAQ
Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
    2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
    3. Fly to Guangzhou airport: By air From Guangzhou to Beijing airport; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
