Water Down Pipe Roll Forming Machine Water Channel Making Machine Standard Automatic

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall, Gutter Panel
  • Transmission Method：Electric

Base Info

  • Model NO.：downpipe roll forming machine
  • Color：as You Like
  • Trade or Factory：Factory
  • Guarantee：1 Year
  • Life Time：10 Years
  • Service：Provide Engineer to Install The Machines
  • Brand Name of PLC：as Customer Request
  • Drawing：Designed as Customer Request
  • Power：38V, 50Hz, 3 Phrase or as Your Like
  • Decoiler Type：Manul, Electric, Hydraulic
  • Control System：PLC
  • Transport Package：Main Machine Nude Packing with Plastic Film
  • Specification：8800*1500*1500
  • Trademark：Xinnuo
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：30 Sets Per Month

Description

No.main parameter of gutter roll forming machine1Suitable to processColor steel plate2Width of the plate200-600mm3Rollers14-16rows4Dimensions8.6*0.8*1.2m5Power4+3kw6Thickness of the plate0.3-0.8mm7Productivity8-12m/min8Diameter of the roller52mm9WeightAbout 4.5 T10Voltage380V 50Hz 3phases11Rolling materialCarbon Steel 45#12Material of the cutting plateCr1213Processing precisionWithin 1.00mm14Control systemPLC control15Side panel of machine14mm16Main structure of the machine300 H steel17Weight About 4.5 T

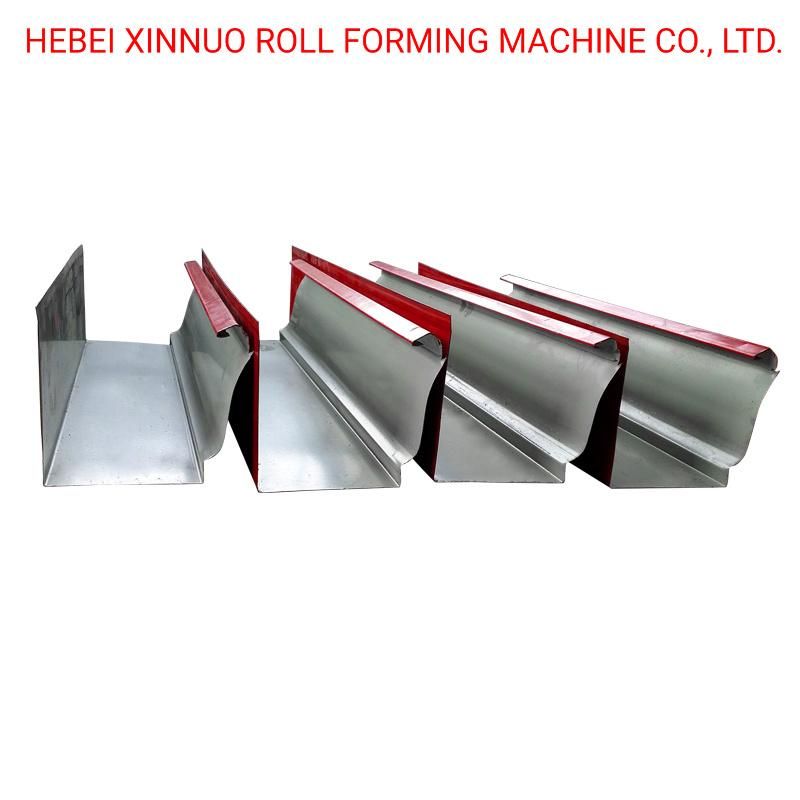

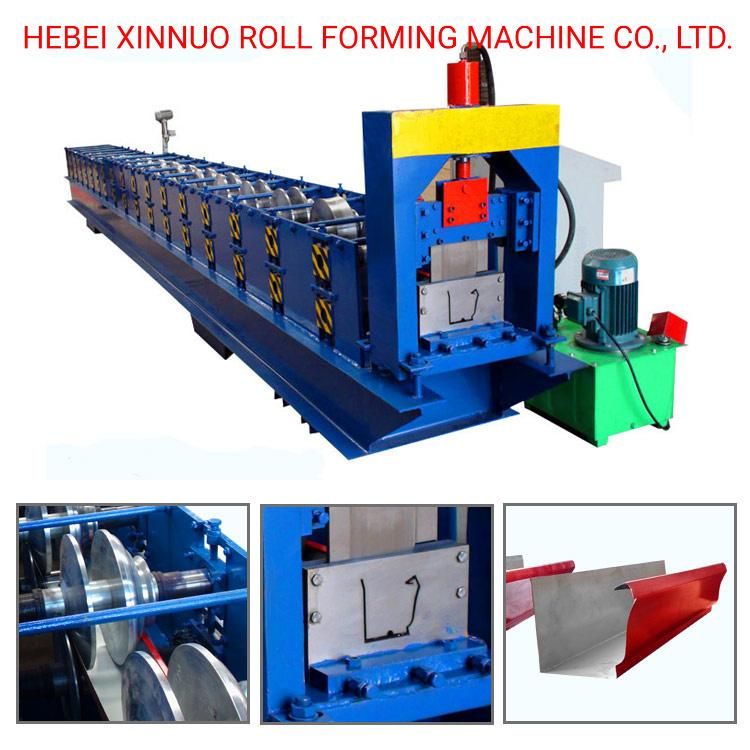

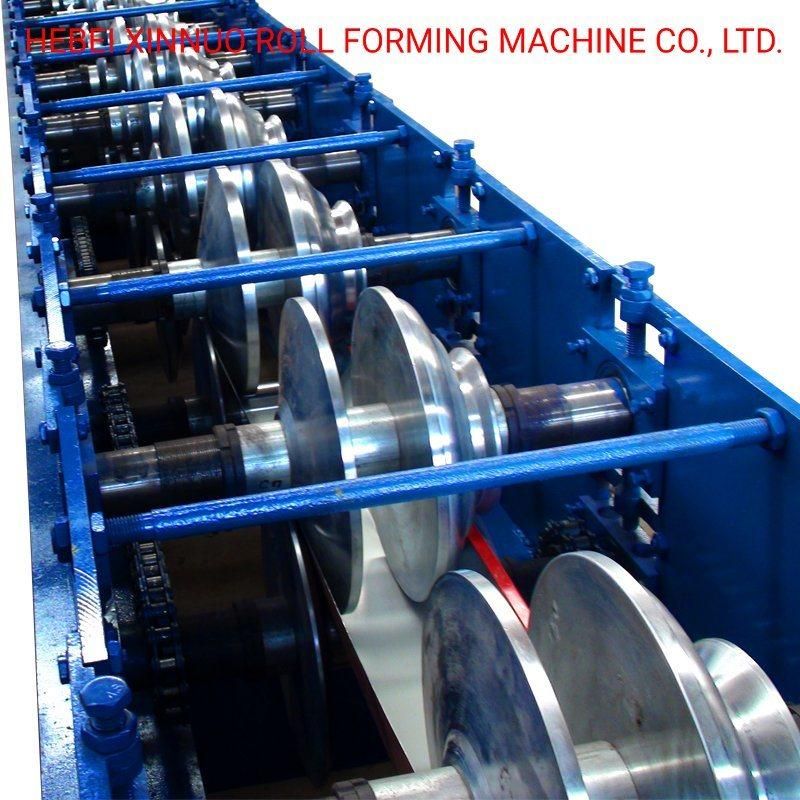

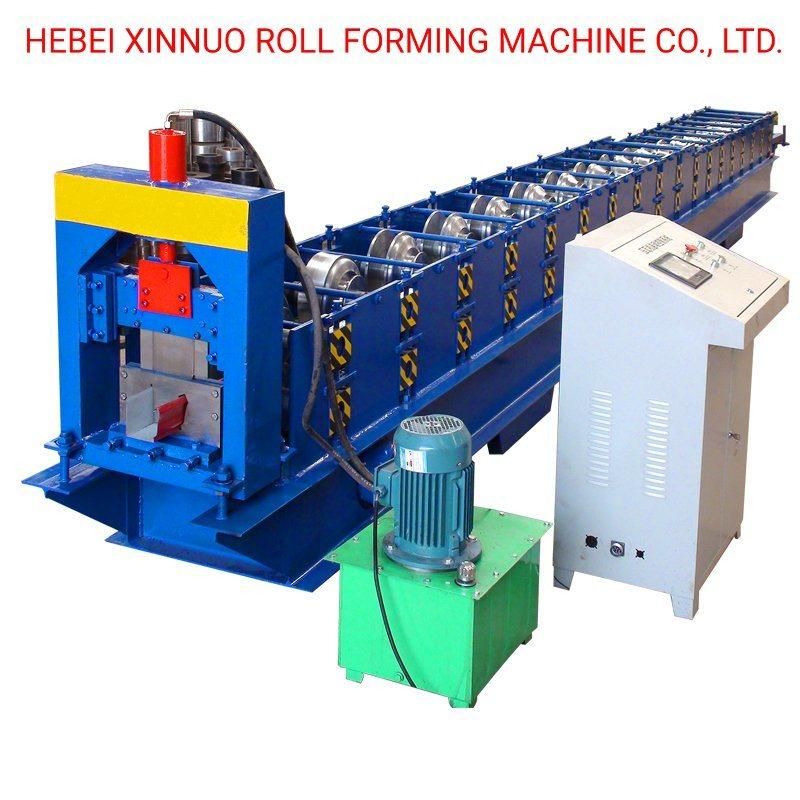

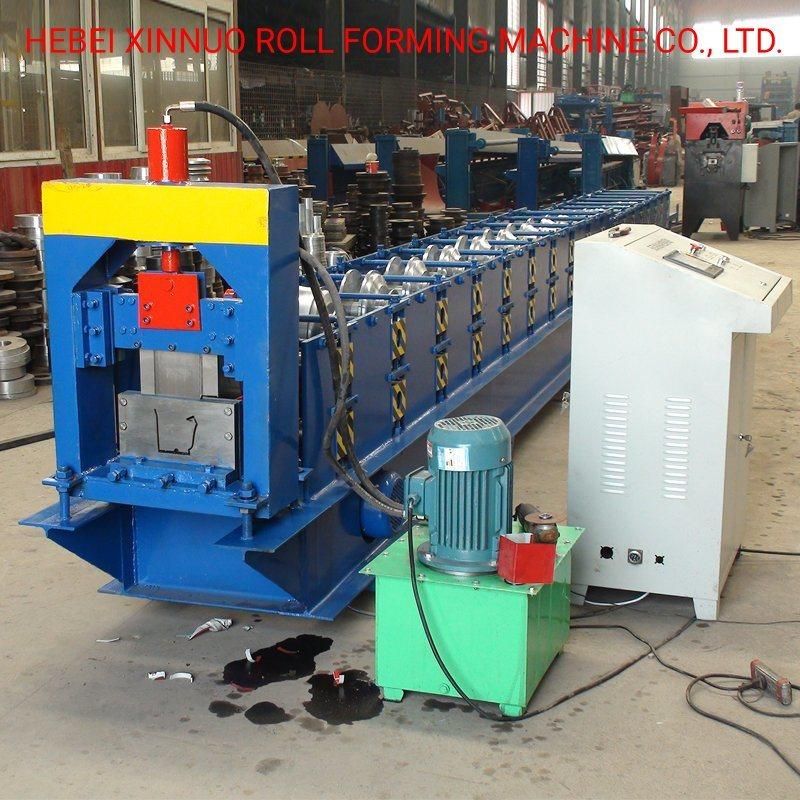

3. some pictures of    water gutter  cold metal sheet roll forming machine



Water Down Pipe Roll Forming Machine Water Channel Making Machine Standard AutomaticWater Down Pipe Roll Forming Machine Water Channel Making Machine Standard AutomaticWater Down Pipe Roll Forming Machine Water Channel Making Machine Standard AutomaticWater Down Pipe Roll Forming Machine Water Channel Making Machine Standard AutomaticWater Down Pipe Roll Forming Machine Water Channel Making Machine Standard AutomaticWater Down Pipe Roll Forming Machine Water Channel Making Machine Standard Automatic


Water Down Pipe Roll Forming Machine Water Channel Making Machine Standard Automatic




4.Packaging & Shipping
Main machine is nude, the computer control box is packed with wooden fram


5.FAQ

1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.

3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4:If you want to get more pictures or videos of the machines,I can send them to you by Email or SKype.
