High Quality Concrete Culvert Pile Mold / Concrete Tube Machine
Zhengzhou Focus Machinery Co., Ltd.- Condition：New
- Application：Drain Pipe
- Type：Concrete Pipe Machine
- Certification：ISO9001: 2000
- Machining Process：Hydraulic
- Size：200-2000mm
Base Info
- Capacity：200*1000mm 150PCS,8hours
- Voltage：380V
- Power(W)：5.5--22kw
- Dimension(L*W*H)：2200*1600*4150mm
- Weight：3000kg
- Vibration Frequency：Max.1400r,M
- Transport Package：Standard Packing for International Transport
- Specification：ISO certified
- Trademark：FOCUS
- Origin：China
- Production Capacity：60sets Per Month
Description
Basic Info.
Capacity 200*1000mm 150PCS/8hours Voltage 380V Power(W) 5.5--22kw Dimension(L*W*H) 2200*1600*4150mm Weight 3000kg Vibration Frequency Max.1400r/M Transport Package Standard Packing for International Transport Specification ISO certified Trademark FOCUS Origin China Production Capacity 60sets Per MonthProduct Description
High Quality Concrete Culvert Pile Mold / Concrete Tube Machine
Why would our clients choose FOCUS Steel Mould?

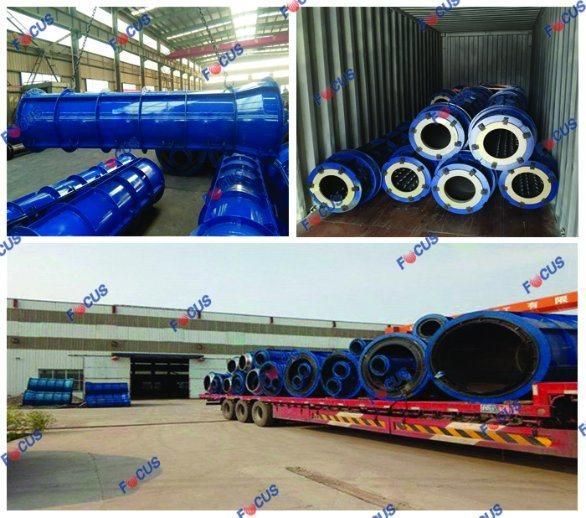

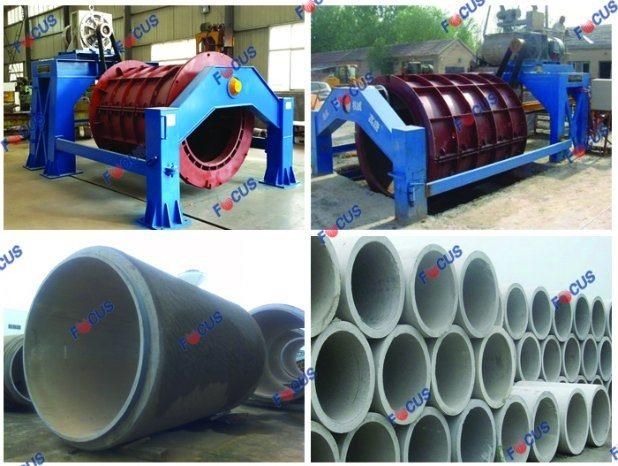

Pre-stressed Concrete Spun Pole Spinning Machine is a kind of mould equipment, which used for making a variety of different diameter and length of reinforced concrete poles and other cement products.
Pre-stressed Concrete Spun Pole Spinning Machine is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete pipes and piles are good at quality.
The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are sealed and reliable, long life. Random electric control equipment is complete and easy to use.
Working Principle
1. Adding the slurry into the mould, it is driven quickly and rotated in the same speed of the machine. Each component is separated and released under the centrifugal force. Usually the higher the slurry rotate speed, the better the slurry separating effect.
2. Centrifugal sedimentation is the use of different density of each component in the slurry, which is rotated under the centrifugal force. To realize the liquid - solid (or liquid - liquid) separation.
3. The speed of separation is slow when the viscosity of slurry is high.
4. It is good for centrifugal sedimentation when the slurry density is different in each component.
| type of pipe | pcs/8hours |
| φ200*1000mm | 150 |
| φ300*1000mm | 150 |
| φ400*1000mm | 120 |
| φ500*1000mm | 110 |
| power | 22kw |
| overall | 2200*1600*4150mm |
| electrical source | Max 1400r/h |
| vibration frequency | 380V/50Hz |
| total mass | 3000kg |
