• Model NO.：ZY-HF63
• Pipe Diameter：12-63mm
• Pipe Thickness：0.7-3.2mm
• Pipe Shape：Round, Square or Rectangular
• Uncoiler：Double-Head
• Solid State High Frequency：200kw
• Cutting：Flying Saw
• Main Motor：DC75kw
• Loop：Horizontal Spril Accumulate
• Color：as Your Requirement
• Transport Package：Rain-Proof Package, Shipping
• Trademark：Zhangyun Machinery
• Origin：Zhangjiagang City
• HS Code：8515219000
• Production Capacity：10sets,Month

Basic Info.

Model NO. ZY-HF63 Pipe Diameter 12-63mm Pipe Thickness 0.7-3.2mm Pipe Shape Round, Square or Rectangular Uncoiler Double-Head Solid State High Frequency 200kw Cutting Flying Saw Main Motor DC75kw Loop Horizontal Spril Accumulate Color as Your Requirement Transport Package Rain-Proof Package, Shipping Trademark Zhangyun Machinery Origin Zhangjiagang City HS Code 8515219000 Production Capacity 10sets/Month

Product Description

Welded Tube MachineHigh frequency welding is used in the production of steel welded pipes. High frequency welding has larger power supply, and higher welding speed can be achieved for steel pipes with different material, caliber and wall thickness.

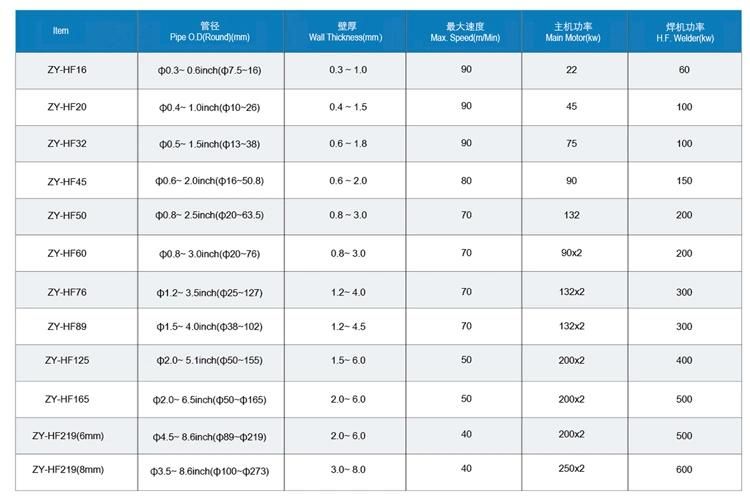

Paramters


Working Process
Double-head un-coiler →→Strip-head Shearer & TIG butt welder station →→Horizontal spiral accumulator group →→Forming M/C (Main driving unit + Flattening Entry unit + Breakdown section + Fin pass section + Seam guide unit + High frequency induction welding system + Squeeze welding roller unit + Outside scarfing unit + Horizontal ironing stand) →→ Emulsion water Cooling section →→ Sizing M/C (Main driving unit  + Sizing section + Speed testing unit + Turk straightener + Vertical pull-out stand) →→ NC flying saw under computer control →→ Run-out table



FAQ:Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.

Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.

Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.

Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
     2) We welcome you visit us and test machine by yourself in our factory.
 Q: what is the MOQ?
A: One set

Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.

Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
