• Model NO.：QMY12-15
• Demold Method：Hydraulic
• Molding：12PCS
• Molding Cycle：10-15s
• Excitation Frequency：3200Hz
• Hydraulic System Pressure：16-20MPa
• Voltage：380V
• Capacity：12000-13000 PCS,8h
• Products：Hollow Block, Solid etc
• Transport Package：Nude Package
• Specification：3250*2100*2300mm
• Trademark：SHIYUE
• Origin：China, Shandong
• HS Code：8474802000
• Production Capacity：3000

Basic Info.

Model NO. QMY12-15 Demold Method Hydraulic Molding 12PCS Molding Cycle 10-15s Excitation Frequency 3200Hz Hydraulic System Pressure 16-20MPa Voltage 380V Capacity 12000-13000 PCS/8h Products Hollow Block, Solid etc Transport Package Nude Package Specification 3250*2100*2300mm Trademark SHIYUE Origin China, Shandong HS Code 8474802000 Production Capacity 3000

Product Description

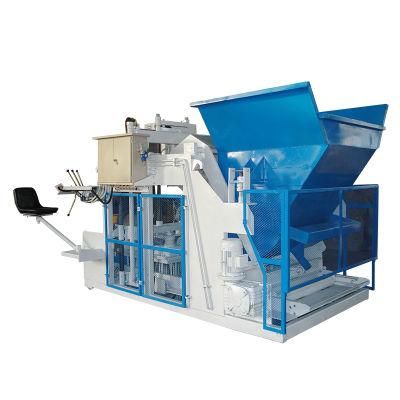

Type	QMY12-15
Overall dimension	3250*2100*2300mm
Molding	12 Pcs/mould(400*200*200)
Capacity	12000-13000Pcs/day
Demold method	Hydraulic
Turning method	Hydraulic
Hydraulic pressure	16-20Mpa
Excitation frequency	3200Hz
Total power	16.5KW
Total mass	4500KG
Molding cycle	10-15S

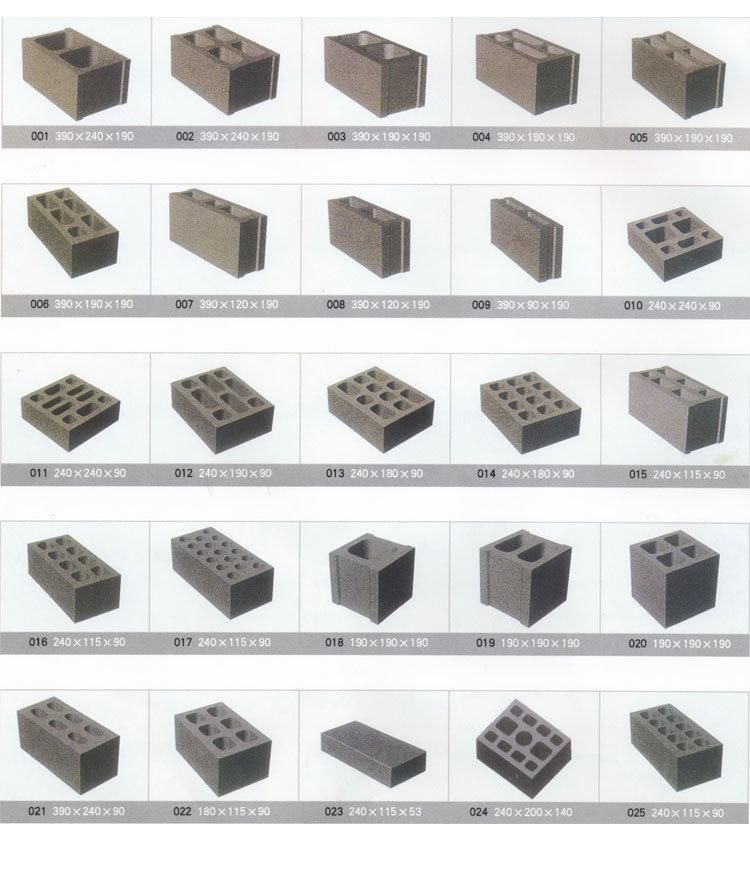

Brick size	400*240*200/400*200*200/400*115*200  All kinds of moulds can be made by customers' drawings
Moving method	Automatically move and hydraulic steering
Excitation way	Three-dimensional box excitation
Raw material	Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue,   gravel, perlite, and other industrial wastes.

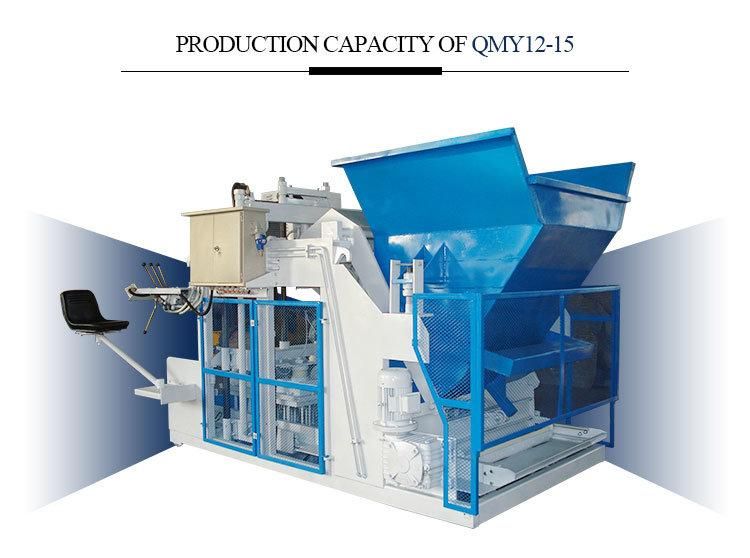

Size(L*W*H)	Pcs/Mould	Pcs/Hr	Pcs/8Hr
400*100*200(16*4*8 inches)	22	5280	42240
400*150*200(16*6*8 inches)	14	3360	26880
400*200*200(16*8*8 inches)	12	2880	23040

Shipping and delivery

1. The whole brick machine production line equipment is mainly the full container sea shipping,

2. Brick machine equipments finish manufacturing and testing, next to clean up, and then do another paint protection,

3. Before shipment to use plastic film winding, wrapped the entire brick machine in case of water or moisture,

4. Then load brick machines into the container by forklift,

5. During loading to tighten the machine with reinforcement ring in container, so as to avoid the damage by transport bumps on the brick machine.

Our service

Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of build factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material,
capacity and the size of brick)
(3) Welcome to visit our factory and production line anytime

Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time

After-sale:
(1) The engineer will guide to carry out the plant at the clients side.
(2) Set up, fix,and operate
(3) Will not stop training the operator until they are satisfied at clients side.
(4) 24 hours service
(5) Recall clients regularly ,get feedback in time,keep well communication with each other.

Our factory
Shiyue Machinery is located in Linyi,Shandong. With advanced technologies and rich experiences on manufacture. We have specialized in stationary block machine,mobile block machine, clay block machine, crusher,pipe making machine, pole making machine,concrete mixing plant etc.After 27-year's effort,we have receive good reputation from many countries such as India, the United States, Russia, the United Kingdom, the Philippines, Canada, Australia, South Africa, Pakistan, Brazil, Malaysia, Sri Lanka, Mexico, Nigeria, Kenya etc.What's more,our machines have won'Product patent award',and 'product innovation award' and so on.Shiyue machinery your best choice for your business


FAQ

1.Question:Does the machine could change mold?
Answer:Yes,this machine could change different kinds of mold.The machine could produce interlock, paver size depending on your local requirements.
2.Question:What is the electric voltage and rate?
Answer:Our local electric voltage is 380v, 3phase, 50hertz, the electricl voltage can be revised according to local situation.
3.Question:How about the service life of this machine?
Answer:This machine could work for about 6-10 years if your side maintain well.
4.Question:What's your machine warrenty?
Answer:12 months guarantee,we send more spare parts for you when shipping machine to you.
5.Question: The mode of transportation.
 Answer: by sea, by land or by rail according to customer local need
