• Model NO.：QT 4-18,4-20,4-15s
• Hydraulic Press：21 MPa
• Vibration Frequency：0-60 Hz
• Pallet Size：850*550*20-22 mm
• Machine Weight：3800 Kg
• Workers：5-7 Workers
• Related Accessories：Jq500 Mixer, 1000 Psc Pallets
• Vibration Force：65-75 Kn
• Rated Voltage：380V, 220V
• Products：Hollow, Solid Blocks, Pavers, Houdis, Curbstone
• Machinery Test Report：Provided
• Brick Raw Material：Cement, Concrete, Sand, Construction Waste...
• Applicable Industries：Building Material Shops, Home Use, Retail...
• After-Sales Service Provided：Online Support, Free Spare Parts
• Transport Package：Nude Package in Container
• Specification：3700*2100*2700 mm
• Trademark：XINMING
• Origin：Linyi, Shandong
• HS Code：8474802000
• Production Capacity：50000 Pieces,Year

QT4-18 Fully Automatic block making machine1) Adopt the intelligent PLC cintrol system, automatic fault diagnosis,less labour cost.

2) By changing molds can produce concrete hollow block, solid block,paver block and so on.
3) We provide customized services. you can choose your favourite color and shape, and we also can custom your own logo.
4) Our machines have reasonable design and compact structure, realize directional vibration, frequency conversion braking, and immediately cancel energy consumption, without manual feeding, which greatly reduces labor intensity.

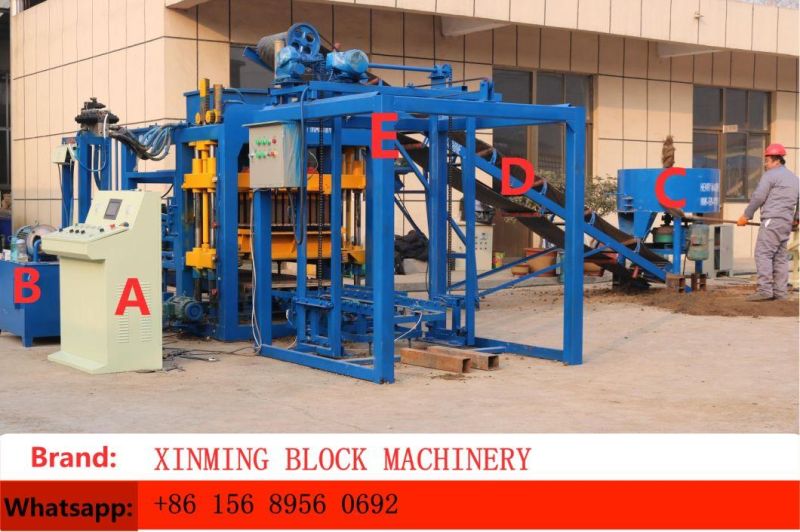

 Related Accessories:NO.ModelFunctionAPLC ControllerControl the whole production lineBHydraulic StationProvide the hydraulic pressureCJQ500 MixerMix the materialsDconveyor BeltConvey the raw materials to host machineEStackerStack the pallet of blocksFTrolleyTransporting a certain amount of blocksGAccessories & ToolsSpare parts Detail Introduction:Name: PLC Control system

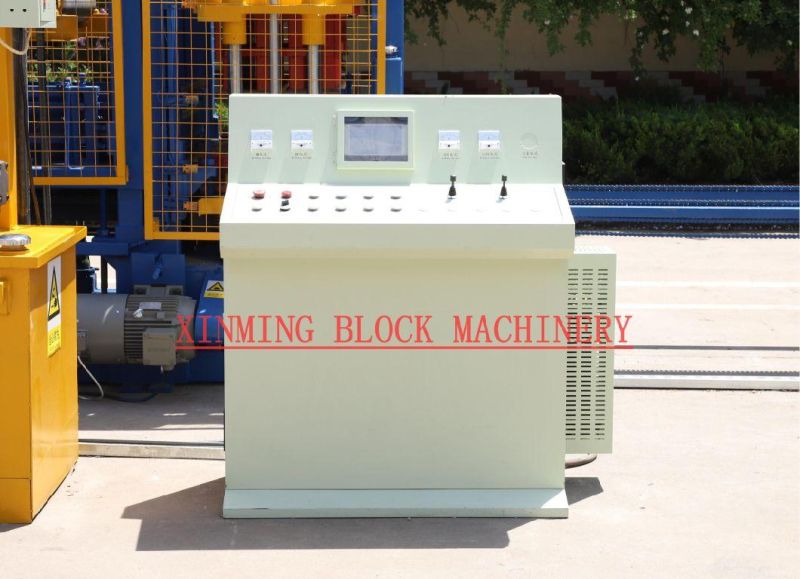

Function: Control the operation of the brick making machine: feeding, shaking, pressing, sending and other operating instructions.

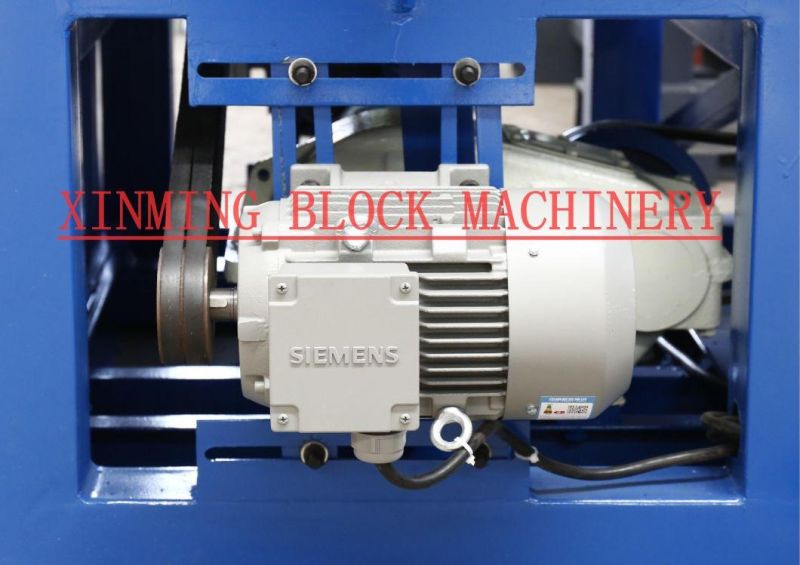

Advantages: Programmable Logic Controller, intelligent control system, easy to operate.Name: Electrical Motor
Function: Provide electrical support for the operation of the machine.
Advantages: Using Simens Motor variable frequency motor, can start frequently, does not damage the machine, and also saves electricity.Name: Mold
Function: Used as a model to produce various styles of bricks.
Advantages: After heat treatment, not easy to rust, adopting carburizing technology, makes the mold more wear-resistant and longer service life.

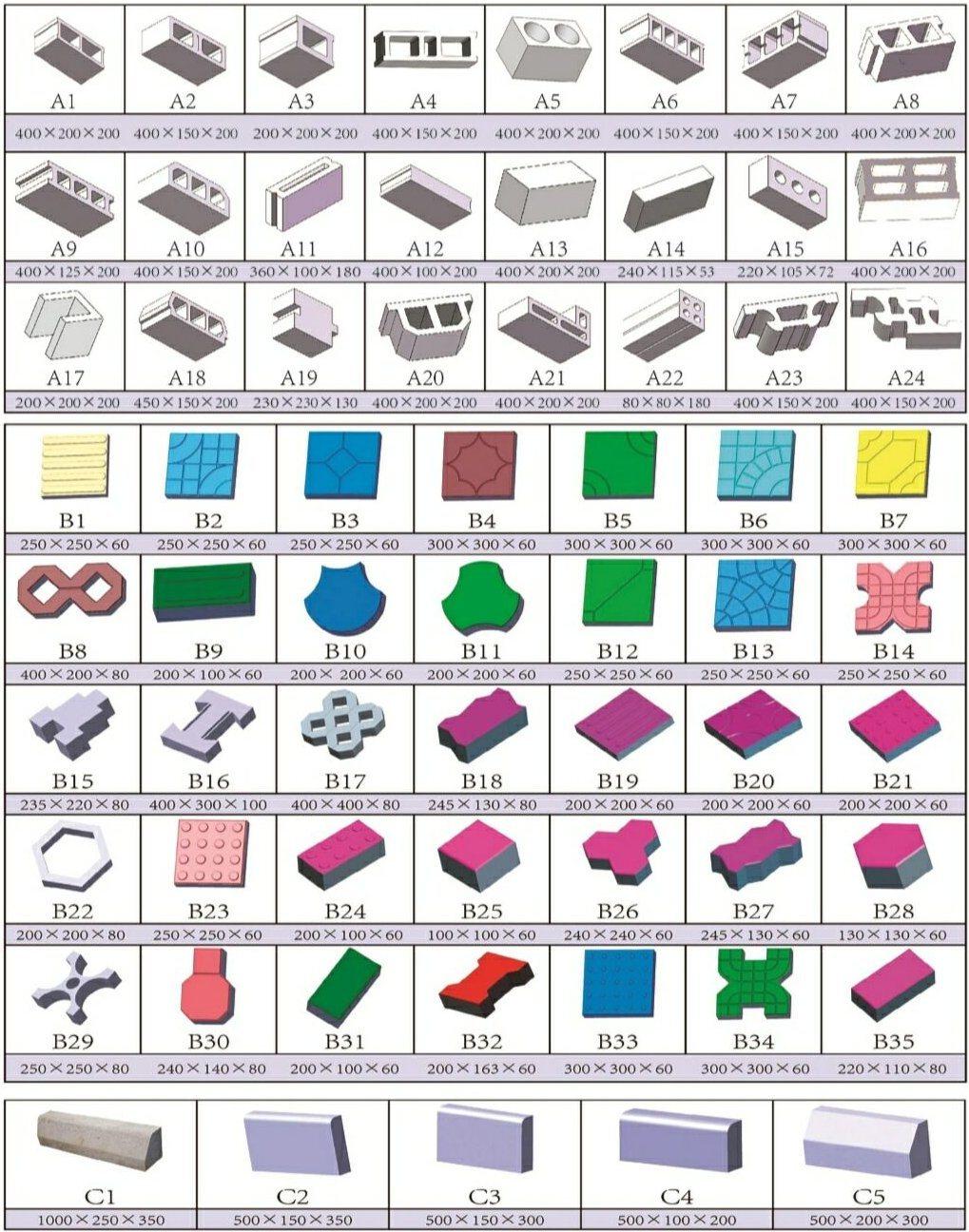

 Theoretical Production Capacity:    QT4-18 automatic concrete cement block making machine can product hollow blocks,solid brick, paver brick or curbstone etc. by changing molds. The following are our popular type of blocks (Can custom by yourself):

 Sample Display:

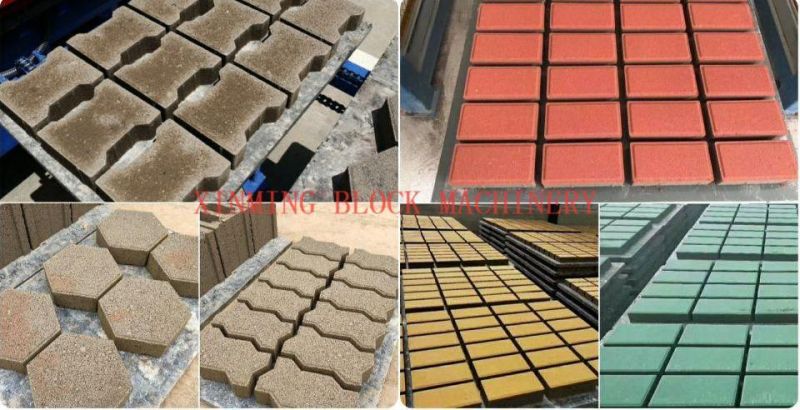

 Finished Product Display

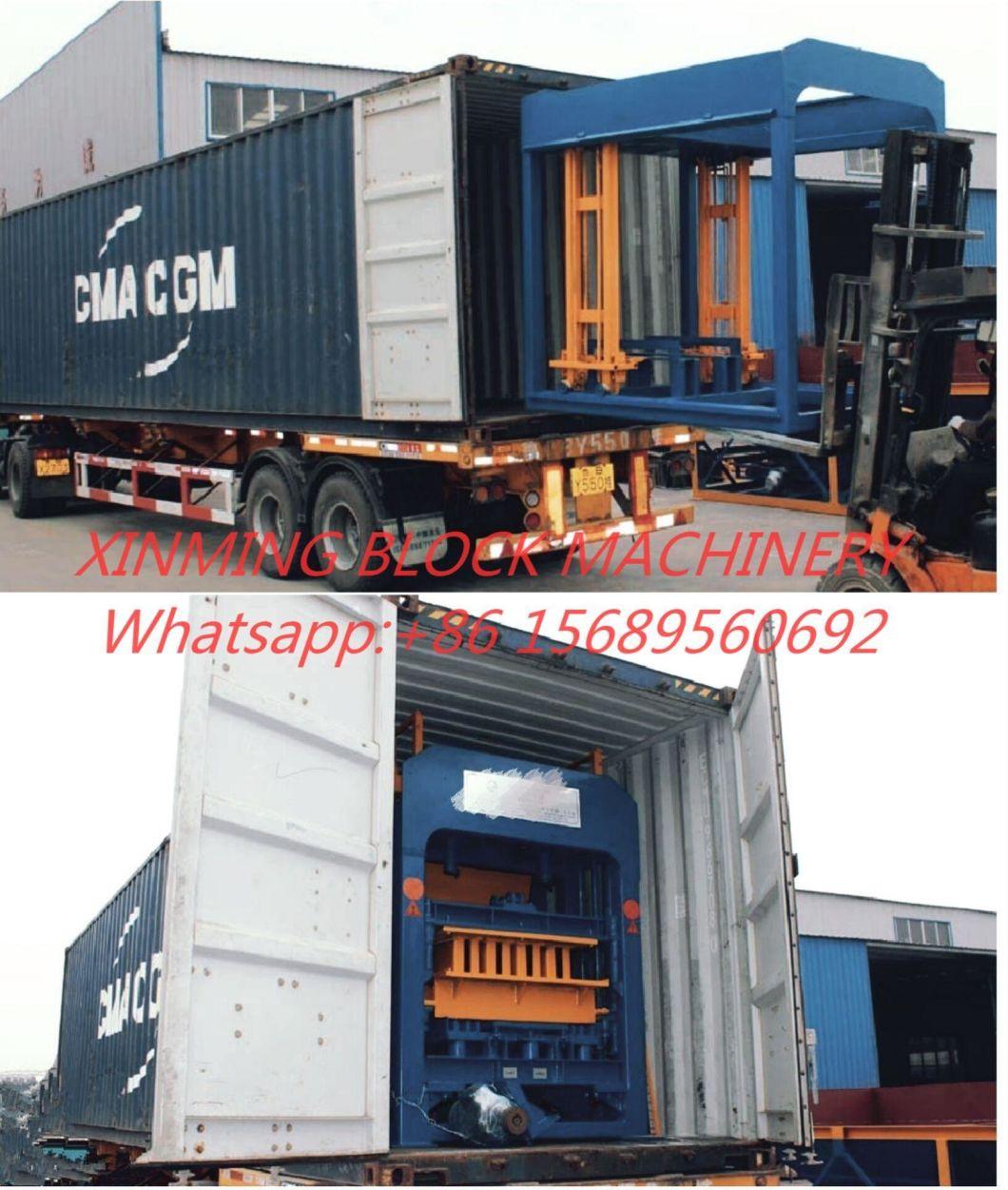

 Packing & Delivery   We use nude packagein container or plywood box with iron frame packing to ensure that the machines arrive at the destination in good condition.



Company Introduction



Contact us
   Below is our contact information, please contact us. We can send you many machine working videos by mobile. We can talk further.
    Thank you for your support and trust!

    Export company: ShanDong Maiwoden Ioport and Export co.,ltd.
    Add: Tancheng Industrial Area, Linyi City, Shandong , China

   Welocone to come to visit our factory!
