• Model NO.：qt4-15
• Raw Material：Concrete,Cement,Flyash,Sand and So on
• Vibration Frequency：2800-4500 ( R,Min)
• Color：According to Your Needs
• Weight：5t
• Molding Cycle：15s
• Vibration Type：Platform Vibration
• Pallet Size：1020X570mm
• Hydraulic：Yes
• Transport Package：Nude Packages According to Your Needs
• Specification：5760-9600pcs,8 hours
• Trademark：shiyue
• Origin：Shandong China
• HS Code：8474802000
• Production Capacity：5000sets,Year

Overall Dimension

7100*1600*2610mm

dimension of host machine

2800*1800*2550mm

Rated Pressur

16MPa

Main Vibration Form

Platform Vibration

Vibration Frequency

4600 ( r/min)

Pallet Size

1020*570*20/25mm

Molding cycle

15-25 (s)

Overall Power

27.5KW

Host machine power

19.2kw

Vibration Force

40KN

General water consumption

4T/day

Total Mass

5T

Demolding method

Hydraulic

Mixer model

JQ500/JD500/JS500

Molding area consumption

400*800mm

Factory Area

500m2

Applied Products

Concrete blocks, hollow/solid blocks, pavers, interlocking

blocks ,

 curbstone, colored pavers ,etc.

Raw Material

Crushed stone, sand , cement, dust, and fly ash, gravel, slag,

and other raw material , etc.

Applied Fields

widely used in buildings, road pavers, squares, gardens,

 landscaping,

 city constructions, etc.

certificate

ISO9001/CE/SGS

Warranty

1YEAR

Processing

Brick Production Line

Automatic

YES

After-sales Service Provided

Engineers available to service machinery overseas

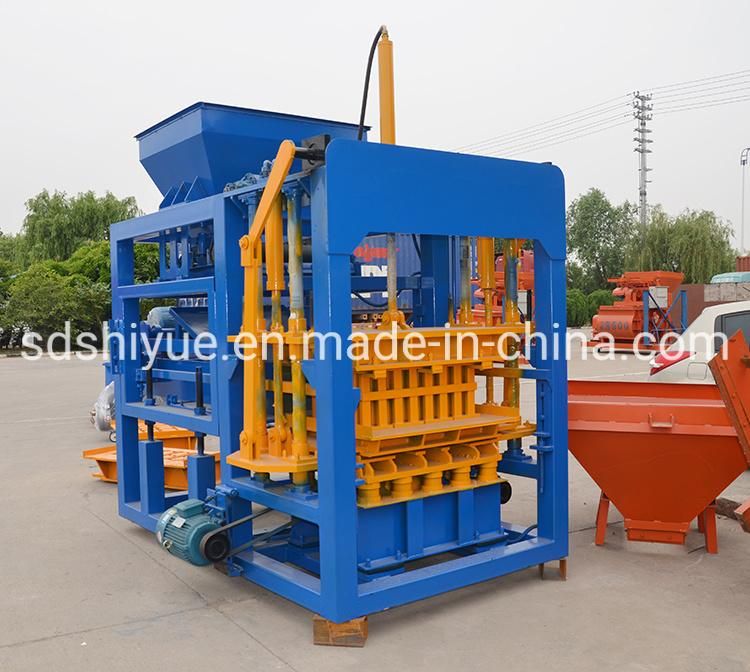

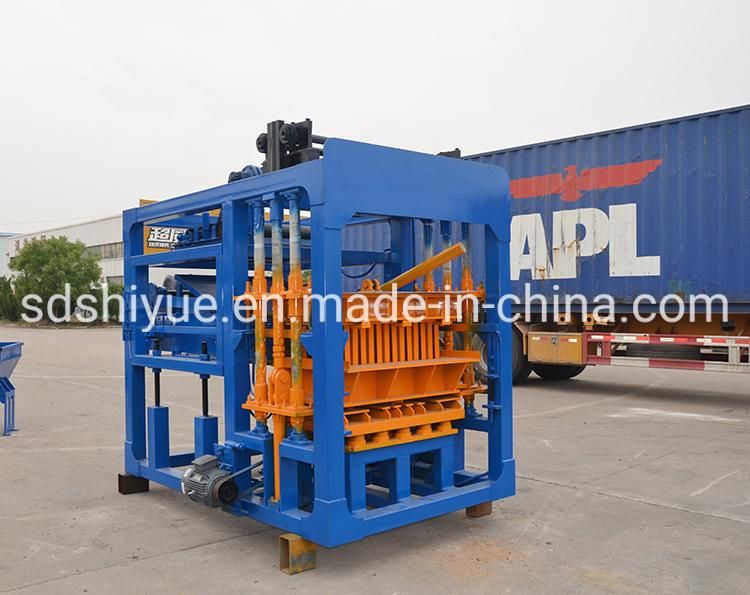

Machine photos

Capacity

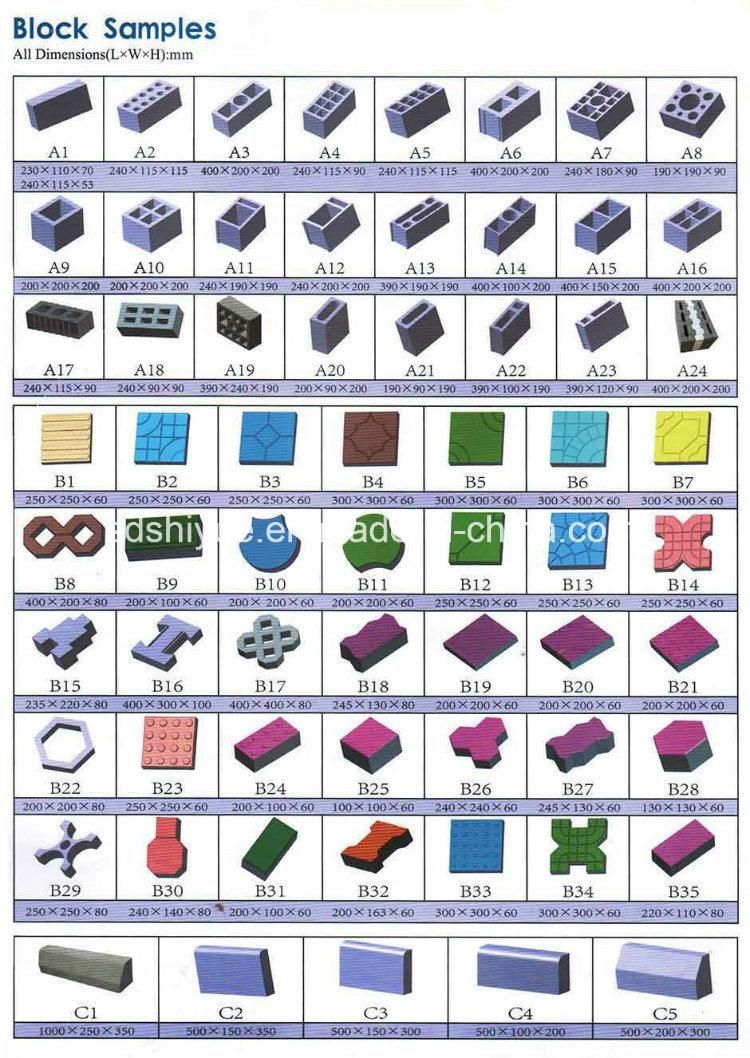

The machine can make many kinds of blocks only by changing the molds

Item

Specification size

Quantity per mold

Cycle mouding

Per hour

Per day

Hollow

brick

400*200*200

6pcs

16-20s

1080pcs

8640pcs/day

Porous

brick

240*115*90

14pcs

15-18s

2800pcs

22400pcs/day

Standard brick

240*115*53

30pcs

14-17s

6800pcs

54400pcs/day

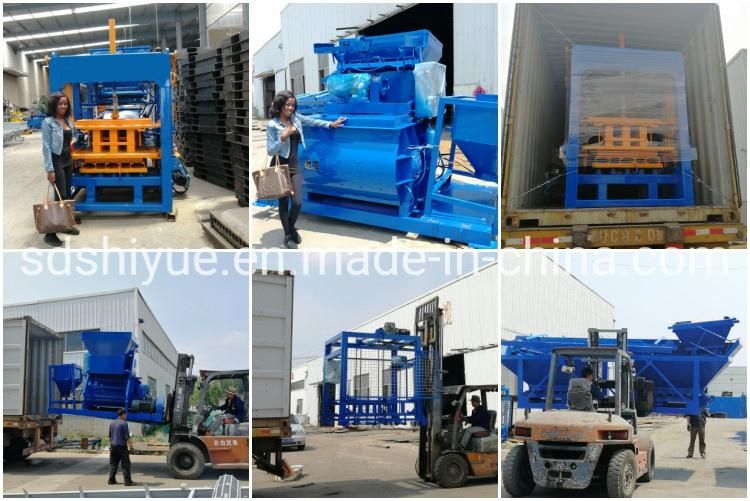

Machine delivery




FAQ

1. Q: What is the molds sizes ? i want to make a special one
 A: It is noproblem ,All kinds of mould can be made by customer's drawings

2.Q: How is about the payment terms ?
  A: It is usually T/T 30% down payment, 70% upon machinery completion, we can also do other payment terms

3. Q:When will your side delivery the machine for me ?
   A: The machine usually be shipped within 20days after the deposit,and it also depends on the other conditions

4. Q:How is about the package ?
   A: Nude packing,or according to your needs

5. Q: How is about the warranty ?
  A: All the machine enjoys one year's warranty, in this period , any problems or partsof the machine, please feel free to contact us . We will try our best to make it .
