• Model NO.：LJB2B-CNC-5000
• Air Consumption：200L,Min
• Spindle Speed：3200r,Min
• Cutting Length：400~4200mm(400~5000mm)
• Cutting Width：10~130mm
• Cutting Height：10~300mm
• Cutting Angle：90° 45° 67.5°
• Saw Feeding Speed：0~3m,Min
• Saw Blade Standard：φ500×4.4×φ30×z120
• Overall Dimension：5500(6300)×1700×1600mm
• Transport Package：Plastic Cover or Plywood Cases
• Trademark：YUEFENG
• Origin：Shandong
• HS Code：847780
• Production Capacity：100sets,Month

Basic Info.

Model NO. LJB2B-CNC-5000 Air Consumption 200L/Min Spindle Speed 3200r/Min Cutting Length 400~4200mm(400~5000mm) Cutting Width 10~130mm Cutting Height 10~300mm Cutting Angle 90° 45° 67.5° Saw Feeding Speed 0~3m/Min Saw Blade Standard φ500×4.4×φ30×z120 Overall Dimension 5500(6300)×1700×1600mm Transport Package Plastic Cover or Plywood Cases Trademark YUEFENG Origin Shandong HS Code 847780 Production Capacity 100sets/Month

Product Description

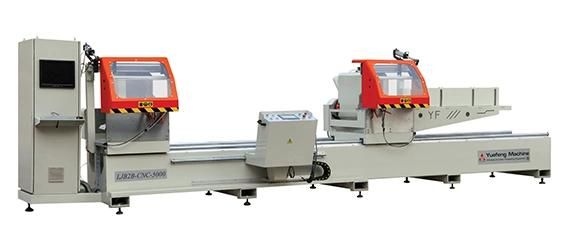

Double Head Aluminum Window Profile Precision Cutting Saw Machine



 >Mainly used for profiles cutting, such as aluminum, PVC and curtain wall profiles.
>Saw blades be installed on the motor directly, with the lever swing mode for cutting.
>The high accuracy imported saw blades result high accuracy cutting.
>The speed reducer be driven by Imported servo motor, results any angle could be cut between 45°~157.5°
>The Imported control system could optimize the profile cutting.
>Several profiles size could be input in once, so the cuttings could be finished continuous.
>Input the cutting datas you need directly, do not need back to reference point first when changing the cutting length.
>The ball screw be driven by imported servo motor drives the saw head, results high speed and high accuracy for repeat locating.
>With bar code printer, result a digital production.

Model	LJB2B-CNC-5000
Input voltage	380V 50Hz
Input power	6.8Kw
Air pressure	0.5~0.8MPa
Air consumption	200L/min
Spindle speed	3200r/min
Cutting length	380~5000mm
Cutting width	10~135mm
Cutting height	10~230mm
Cutting angle	45°~ 57.5°
Saw feeding speed	0~3m/min
Saw blade standard	φ500×4.4×φ30×Z120
Overall dimension	7000×1800×1800mm
