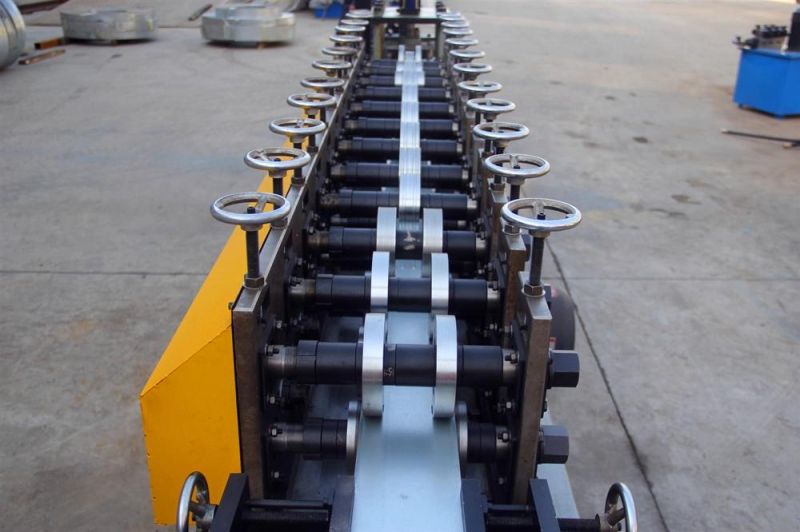

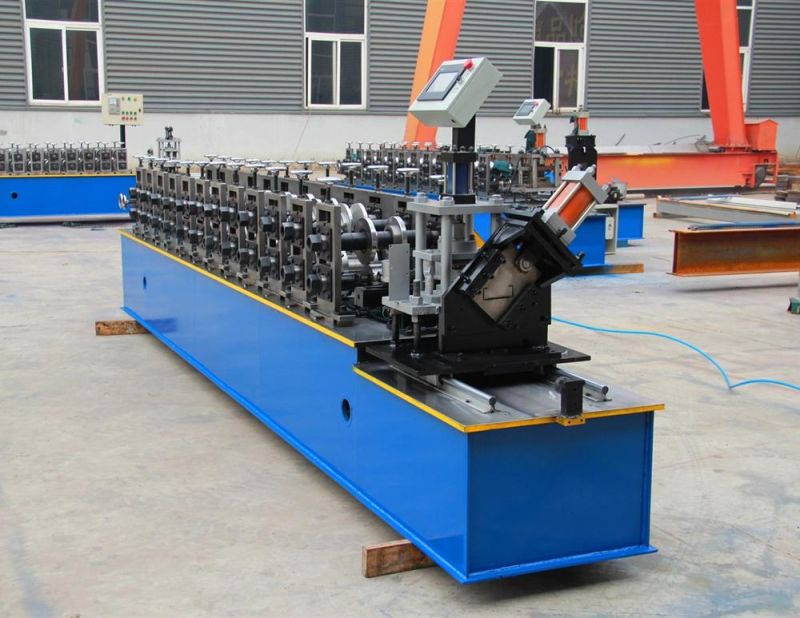

Stud Truss High Speed Light Steel Keel Roll Forming Machine
Tianjin Haixing Imp. & Exp. Co., Ltd.- Certification：CE, RoHS, GS, ISO9001, SGS,BV
- Customized：Customized
- Condition：New
- Control Type：CNC
- Automatic Grade：Automatic
- Drive：Hydraulic
Base Info
- Model NO.：c keel machine
- Name：Stud Truss Light Steel Keel Roll Forming Machine
- Roller Station：12rows Plus Leveling Device
- Main Frame：Square Steel Frame
- Shaft Diameter：50mm
- Shaft Material(Hard)：High Grade 45# Steel, Heated and Quenched, Cylindr
- Roller Material：Bearing Steel,Quenching and Tempering
- Forming Speed：15-25m,Min
- Motor Power：3kw or Customer′s Need
- Hydraulic Pump：3kw or Customer′s Need
- Voltage Standard：380V,3phases,50Hz
- PLC System：Delta Brand,Taiwan
- Size：5.6*0.8*1.5meters
- Weight：2.6tons

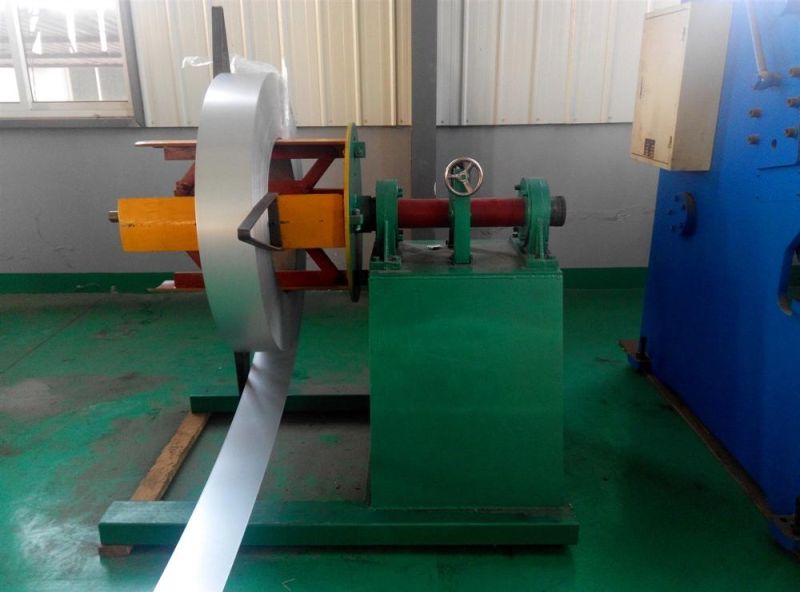

- Decoiler：1 Set Manual with Free
- Transport Package：Main Body Plastic Film, Spare Parts Put Carton Box
- Specification：5.6*0.8*1.5Meters
- Trademark：No
- Origin：China
- HS Code：84552210
- Production Capacity：200sets,Month
Description
stud truss high speed light steel keel roll forming machine1 Suitable to process (Prepainted)galvanized steel strips 2 Rollers Angle :10Rows Roller Diameter :40mm
U shape :8Rows Roller Diameter :50mm
C shape :12Rows Roller Diameter :50mm
Omega :10Rows Roller Diameter :50mm 3 Main frame Square steel frame 4 Dimensions 5.6*0.8*1.5m 5 Wallboard size 16mm,the materials is 45# steel 6 Weight About 2.6T 7 Driving method Gear driver 8 Motor power 3Kw 9 Pump Station Motor 3Kw 10 Thickness of the plate 0.6-1.0mm 11 Productivity 15-25m/min 12 Cutting way Hydraulic cutting or fly saw cutting 13 Diameter of the roller Φ50mm 14 Voltage 380V 50Hz 3phases ,based on your need . 15 Control system PLC control (Delta) 16 Touch screen Delta 17 Rolling materials 45# forging steel with chromium plate 18 Length Tolerance ±2mm

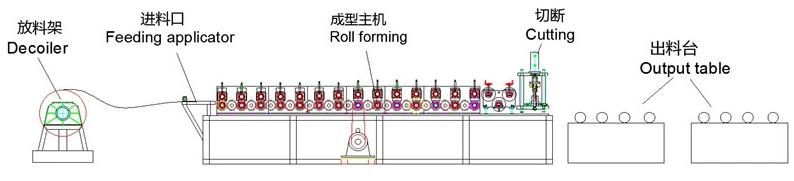

Production Flow of stud truss high speed light steel keel roll forming machine:
Passive Decoiler 1Set Feeding Platform with Pre-cutter 1Set Roll Forming Machine 1Set PLC Control System 1Set Hydraulic Cutting System 1Set Exit Rack for roofing production 2Pieces 3Meters Spare parts One carton box

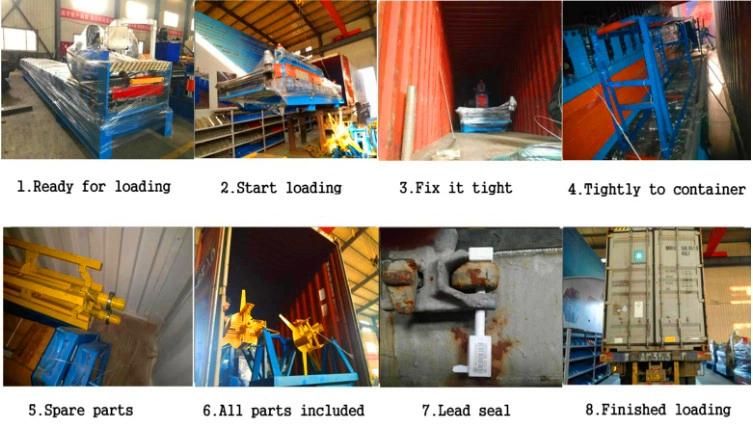

Export standard packing of stud truss high speed light steel keel roll forming machine:
1.The main body of the roll forming machine will be naked packing into the container,covered with plastic film.
2.Steel wire fix the machine into the container, in case any damage when shaking on the sea.
3.The spare parts will be packed into the carton box.
4.The received goods table put into carton box .
5.Manual decoiler naked package .
After Sales Service of stud truss high speed light steel keel roll forming machine:
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.
FAQ:
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll
forming machines.
Q: Can a machine produce only one style profile?
A: Not complete. Suitable for flowers design manufacturing machines. It can produce more than 3 kinds on one machine(change flower mold roller )
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 35 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other
parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged
part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through
negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to
install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation

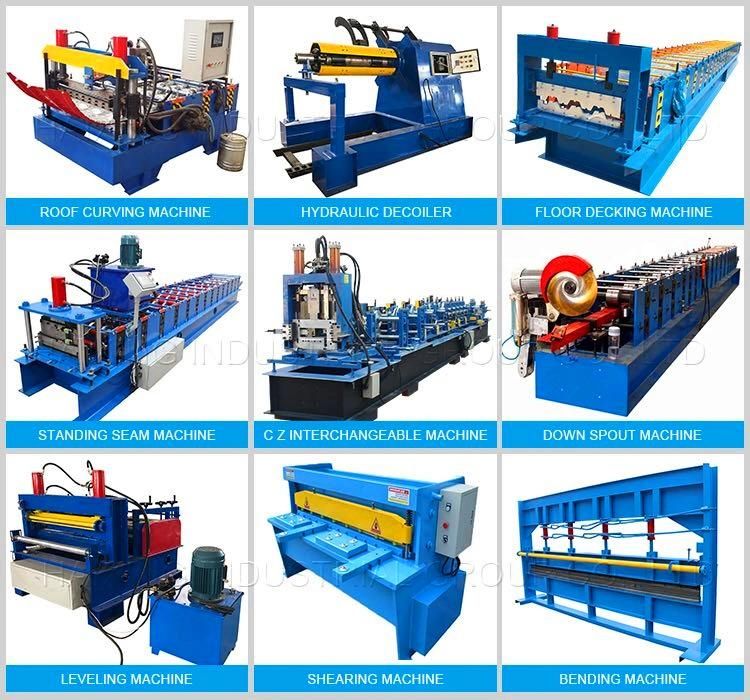

Relative popular sell machines photos showing
