Frame and Roofing Roll Forming Machine Shipping Container House Post
Cangzhou Nexus Machinery Co., Ltd.- Warranty：12 Months
- Tile Type：Steel Purlins
Base Info
- Model NO.：NM1286
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Beam Purlins for Container House
- Transmission Method：Electric
- Product Name：Frame and Roofing Roll Forming Machine
- Raw Material：Gi Sheet
- Thickness Range：1.0-3.0mm
- Machine Power：15kw+5.5kw
- Machine Weight：About 7 Tons
- Roller Material：Gcr15 Steel
- Shaft Diameter：80mm
- Operation Type：Touching Screen with Buttons
- PLC Brand：Siemens,Panasonic,Delta
- Transport Package：Plastic Film & Steel Wire Fixed
- Specification：8500mm*1500mm*1500mm(L*W*H)
- Trademark：NEXUS MACHINERY
- Origin：China
- HS Code：8455221000
- Production Capacity：30 Sets , Months
- Package size per unit product：850.00cm * 80.00cm * 180.00cm
- Gross weight per unit product：6000.000kg
Description
Frame And Roofing Roll Forming Machine Shipping Container House PostConfigurations Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table. Control System PLC Inverter Encoder Touch Screen Main Frame 400mm H-Beam Total Power 22 kw Power Supply 380V, 3-Phase,50Hz Forming Speed 10-20m/min Roll Station 18 stands Decoiler capacity 3.5 tons Roller Diameter 80mm Feeding Thickness 2.0-3.0mm Backboard Thickness 20mm Cutter Standard GCr12 Roller Standard Gcr15# Overall Size About 8500×1000×1400mm Total Weight About 6 T Custom According to customer's requirements

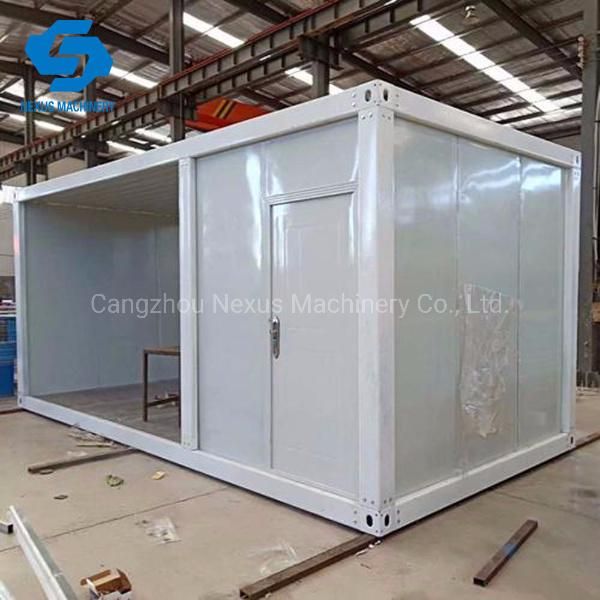

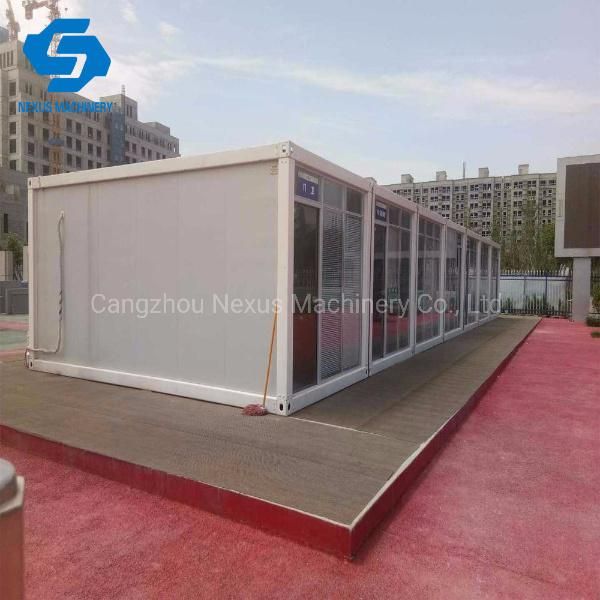

Applications of CE Container House Beams Cold Roll Forming Machine With Hydraulic Cutter:
ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
FAQ:
1. How long the machine could be made?- Normally speaking, metal purlins machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
Applications of CE Container House Beams Cold Roll Forming Machine With Hydraulic Cutter:
ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
FAQ:
1. How long the machine could be made?- Normally speaking, metal purlins machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
