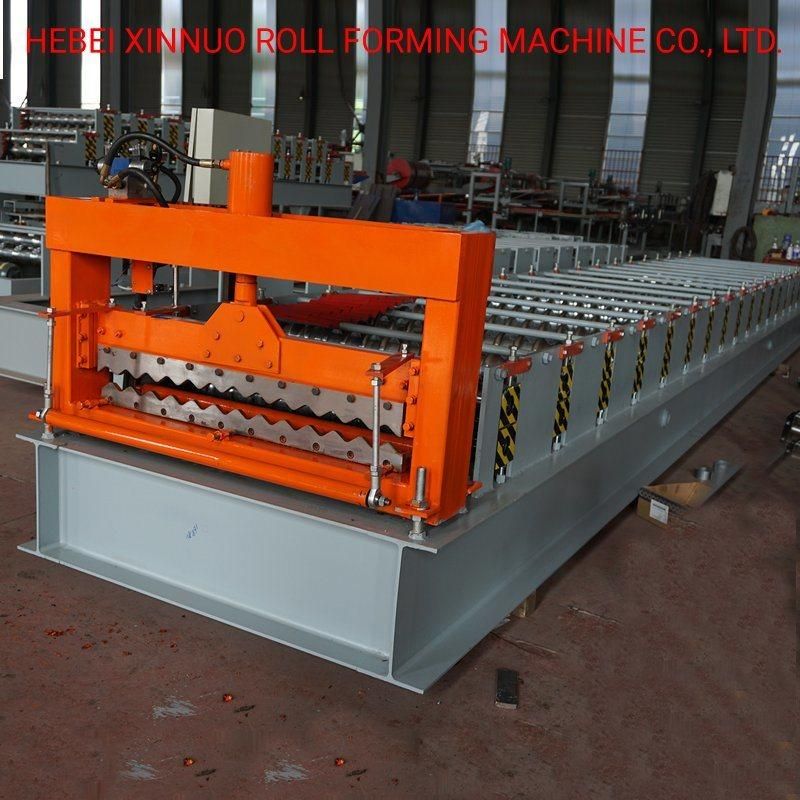

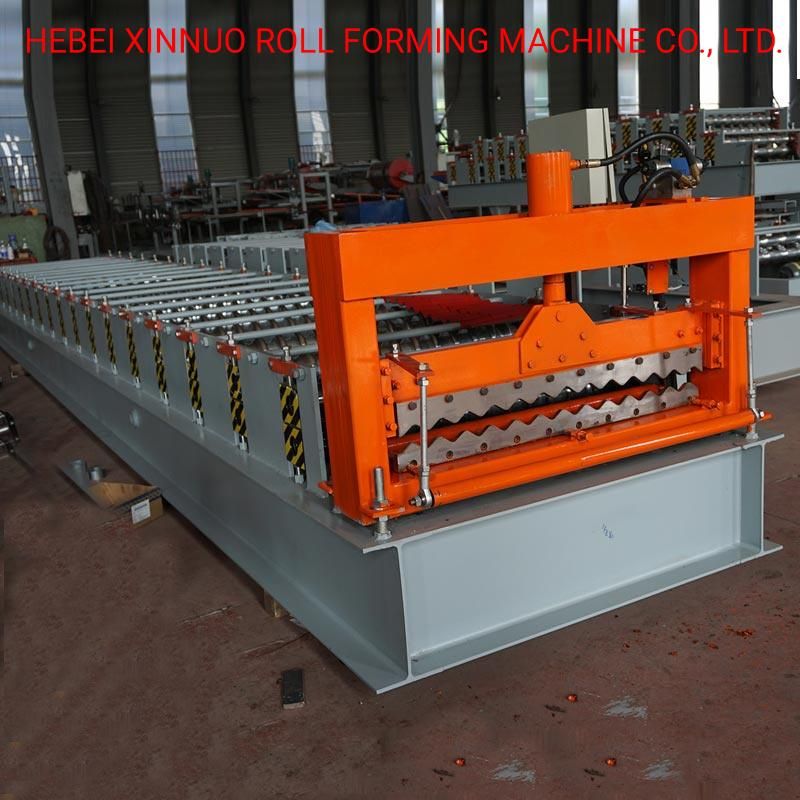

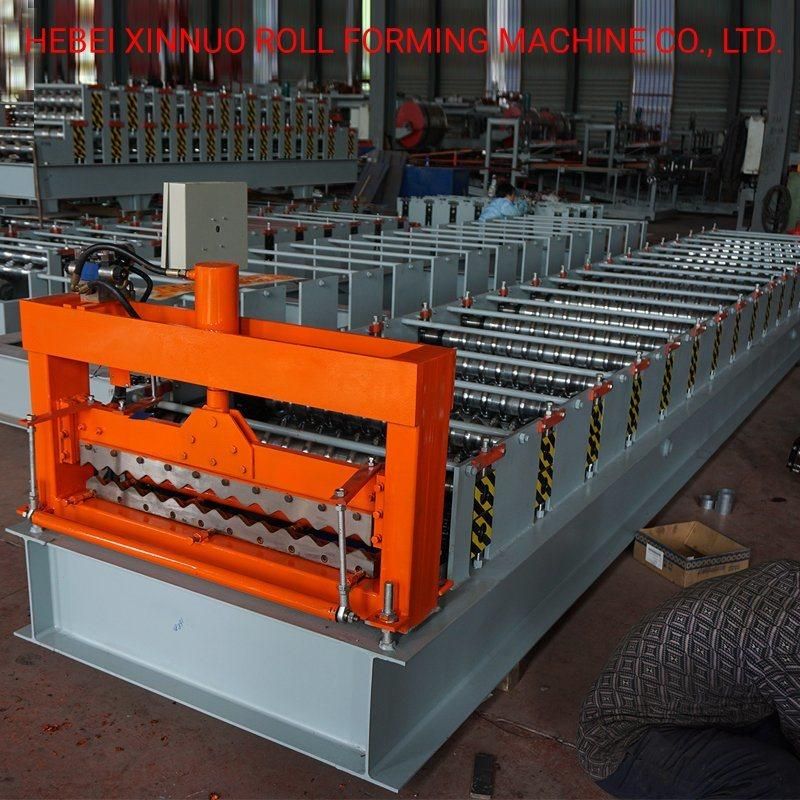

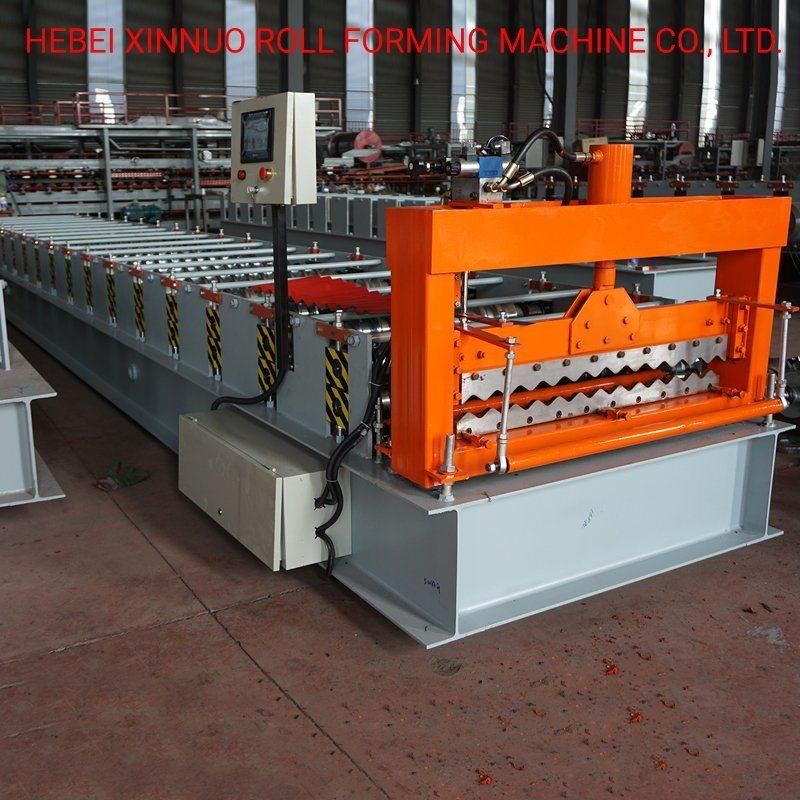

Corrugated Roof Sheet Cold Roll Forming Machine Tile Forming Machine for Metal Sheets
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof
- Transmission Method：Electric
Base Info
- Model NO.：800 corrugated machine
- Color：as Required
- Raw Material：Color Sheet
- Transport Package：Main Machine Is Nude
- Specification：6000*1300*1500mm
- Trademark：kexinda
- Origin：China-Mainland
- Production Capacity：1 Set Per Month
Description

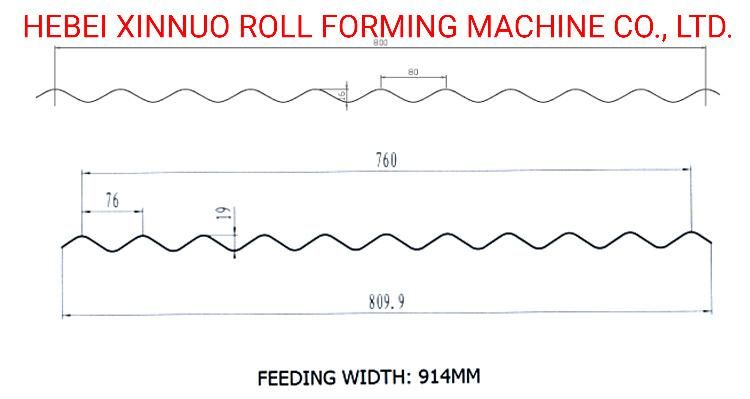

material: galvanized sheet or colored armor plateEquipment operation Automatically Voltage AC380/50-60Hz Number of roller 11 Thickness of sheet(mm) 0.3-0.8 Material width(mm) 1000/1200 Formed width(mm) 850 Productivity 0-9m/min Diameter of shaft 70mm Dimension of main structure(mm) About 6000*1300*1500mm Weight About 3000 kg Total power(kw) 7kw Driven system Single Power of hydraulic system 3kw Power of main molding core 4 kw(cycloidal planetary gear speed reducer) precision 10m

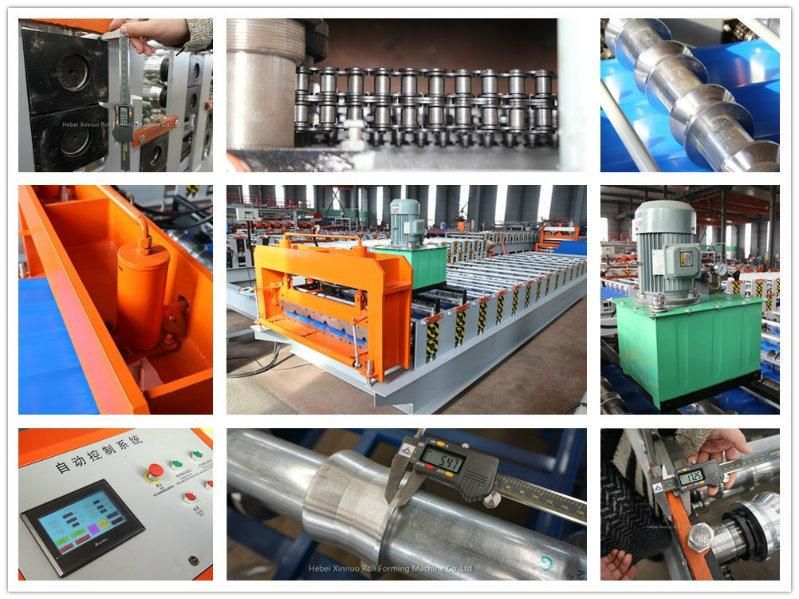

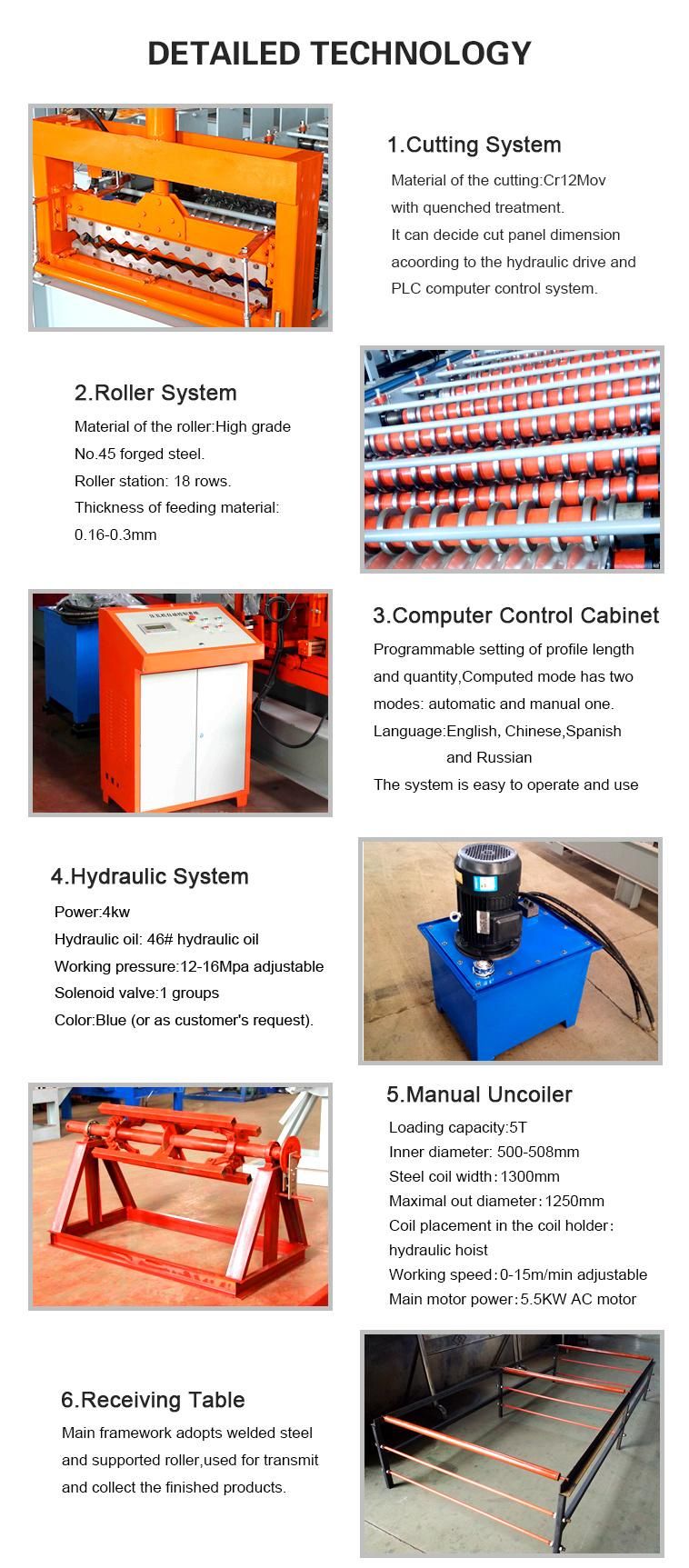

OUR ADVANTAGE
| Our machine | Influence of the machine | |
| Main forming machine body | High strength H350 or H400 steel. machine through milling machine after welding | Sturdy and durable, ensure the plate standard |

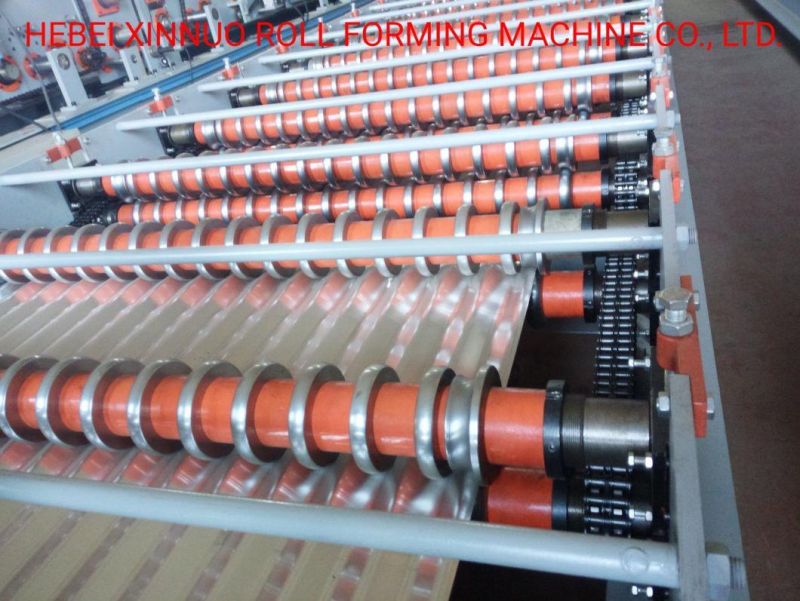

| Material of the roller | High grade No.45 forged steel | Ensure the forming effect of the panel and the use age will be longer,the surface of the panel |
| Material of the cutting | GCr12 steel with quenched treatment | Cutting is out of shape not easily and use age will be longer,the panel size precision |
| Material of the active shaft | High grade solid No.45 carbon steel, Shaft diameter is 72mm. | Improve the integrated mechanic feature of the shaft and keep product standard |
| Control system | PLC control system,some elements are imported from Japan and Germany | Machine become more accurate and more stable |
DERAIL
