• Model NO.：Qt4-40
• Vibration Force：20kn
• Upper Vibrator：2.2kw
• Nether Vibrator：4.4kw
• Electricity：220V,380V
• Total Weight：1500kgs
• Power Type：Electric Motor
• Mixer Model：Jq350 Concrete Mixer
• Processing：Brick Moulding Machine
• Color：Optional
• Standard Hollow：400*200*200mm
• Model：Qtj4-40
• Transport Package：Wooden Packaging
• Specification：1580*1100*2100mm
• Trademark：XM
• Origin：China
• Production Capacity：5040PCS,8hours

QTJ4-40  Theoretical Production capacity

Size (LxWxH)

Pcs/Mould

Pcs/ Hr

Pcs/ 8 Hr

400X100X200

7

600-700

4800-5600

400X150X200

5

450-500

3600-4000

400X200X200

4

350-400

2800-3200

400X250X200

3

250-300

2000-2400

1.Very low investment,can save cost quickly,is the ideal choice for small and medium factory

2.Electric control,comparing to the traditional brick machine,save more electric power

3.The molds are changeable according to customer's requirment

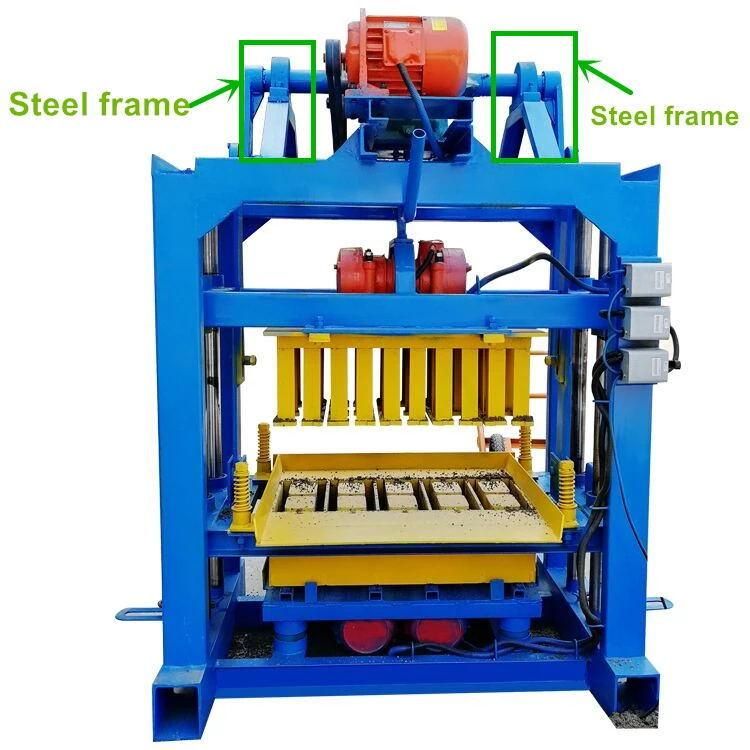

4.Our solid leaders,channel steel stander more firm than others

5. Not using fire to bake blocks and not building kiln to save the energy sources and fields.

6. No chimney to protect the environment and avoid pollution.

7. Production process is simple, they can be made everywhere .

8. Low investment and achieving much faster results, customers can profit in half a year after investing.

9. The block can be produced all around the year.

10. Good looking, construction convenient, low-floor real jigsaw puzzle, and the high buildings

do filler and cheap.

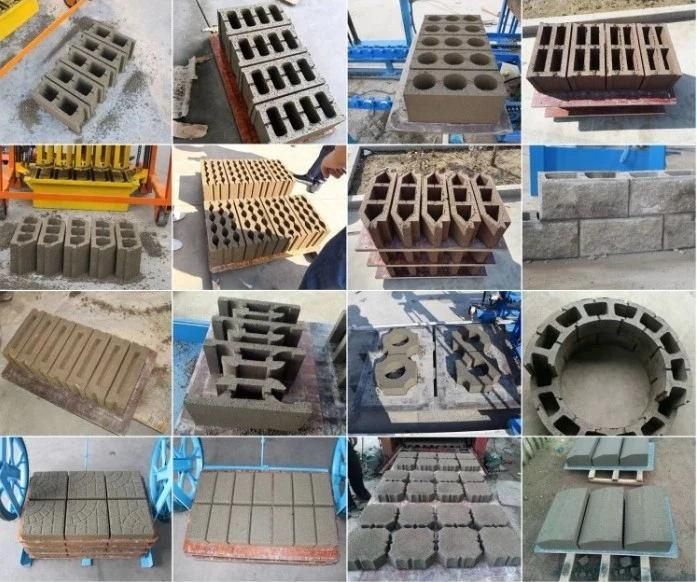

 This QT4-40 Manual block machine can prdouce many different types just by Changing the different moulds.Such as hollow blocks,solid blocks,solid bricks, pavers,Hourdis and curbstones even the split face blocks.

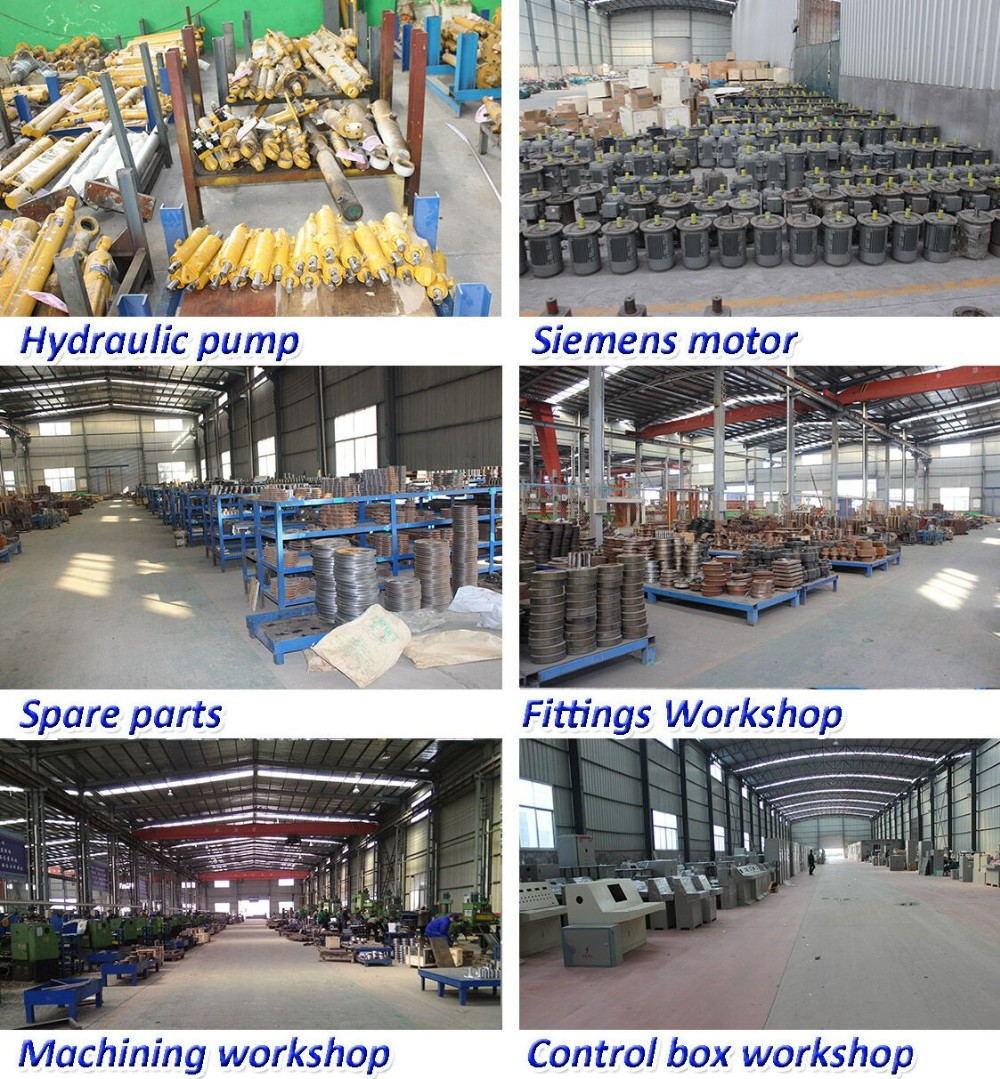

Xinming Machinery Co., Ltd is one of the biggest professional manufacturers of block machine with 18 years histories.  Our Factory is located in Linyi City, Shandong Province, China.

On the basis of Rich experience and advanced Germany technologies, Xinming Machinery are majored in models of concrete block machine and clay interlocking brick machine to meet requirement of all customers. Such as automatic block machine, semi-automatic block machine, manual block machine, paver machine, curbstone machine and clay interlocking lego brick making machine. Xinming Machinery is widely used and praised in more than 70 countries such as Ghana, Kenya, Peru, Mexico, Vietnam, Sudan and so on.
