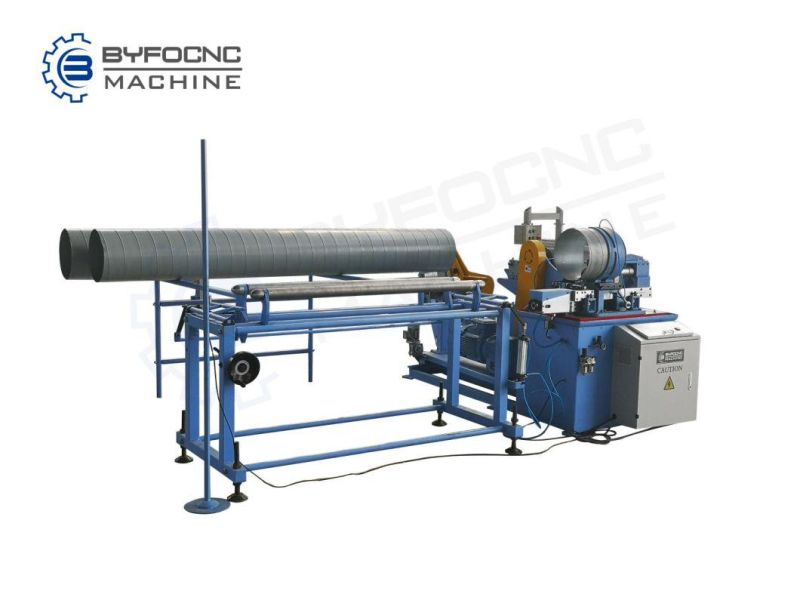

Auto Galvanized Metal Duct Round Pipe Machine Spiral Duct Machine
Nanjing Byfo Machinery Co., Ltd.- Pipe Material:Galvanized Steel
- Condition:New
- Customized:Customized
- Theory:Roll Forming Machine
- Application:Industry
- Type:Pipe Production Line
Base Info
- OEM:Available
- Color:Optional
- Certificate:CE&ISO
- Dimension:3.3 X 1.7 X 1.5 M, 2.1 X 1.0 X 1.0 M
- Model No.:Byl-1600
- Voltage:380V, 220V, 415V or Customized
- Power:12kw
- Weight:2300kg
- Name:Spiral Duct Forming Machine
- Control System:PLC
- Diameter:100-1500mm
- Working Speed:0-27m,Min
- Mold Material:Steel
- Lockformer:out Lock
- Cutting Method:Roll Cutter
- Transport Package:Standard Seaworthy Package
- Specification:3.3 x 1.7 x 1.5 m
- Trademark:BYFOCNC
- Origin:China
- HS Code:845522909
- Production Capacity:100 Sets,Month
Description
Basic Info.
OEM Available Color Optional Certificate CE&ISO Dimension 3.3 X 1.7 X 1.5 M, 2.1 X 1.0 X 1.0 M Model No. Byl-1600 Voltage 380V, 220V, 415V or Customized Power 12kw Weight 2300kg Name Spiral Duct Forming Machine Control System PLC Diameter 100-1500mm Working Speed 0-27m/Min Mold Material Steel Lockformer out Lock Cutting Method Roll Cutter Transport Package Standard Seaworthy Package Specification 3.3 x 1.7 x 1.5 m Trademark BYFOCNC Origin China HS Code 845522909 Production Capacity 100 Sets/MonthProduct Description

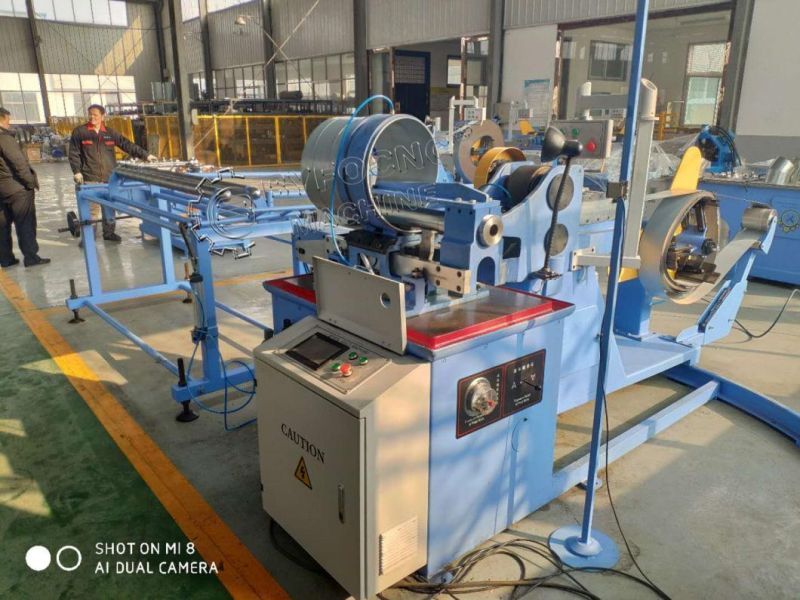

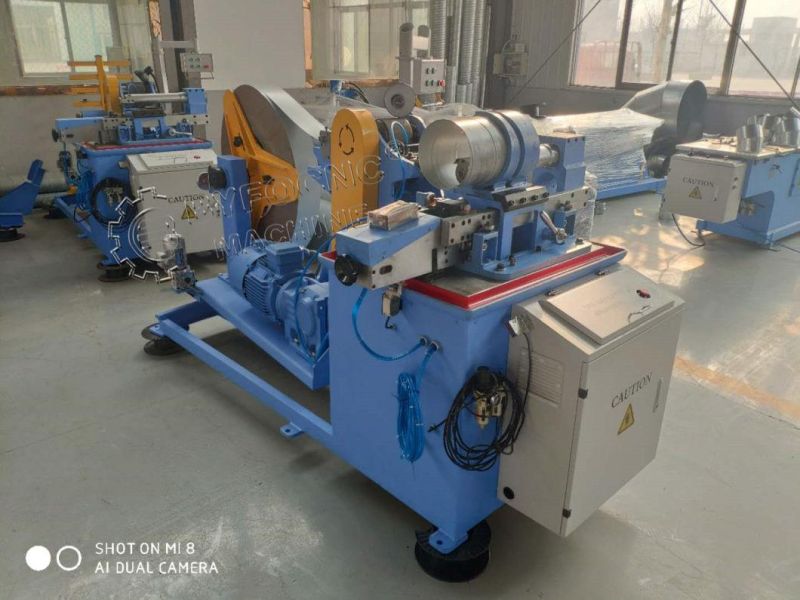

Byfo Tubeformer Factory Direct Good Quality Spiral duct forming machineB1600 spiral machine is the most advanced air control equipment, easy to install and move, flexible regulation, field construction.
Main Technical Data:
Diameter range | Φ80-Φ1500mm |
Thickness of Strip | Galvanized steel:0.5-1.2mm Stainless steel:0.4-0.8mm |
Width of Strip | 137mm |
Strip Speed | 1-27m/min |
Dimension (L x W x H): | 3300*1700*1500mm(main part),2100*1000*1000mm(standard support) |
Lock seam | Outside tube, on the inside on request |
Weight | 2300kg |
Control System | PLC automatic control |
Compressed air power | 0.5-0.7kmp |
Electrical | 380V/3PH/60HZ(According to customer's request) |
Total Motor Power | 12kw |
Suitable Material | Aluminum, Stainless steel, Galvanized steel |
Cutting system | Roller cutter |
