• Model NO.：SJ90 single screw extruder
• Material：Plastic Granules
• Finial Products：Plastic Sheet
• Name：PVC Sheet Production Line
• Screw Material：38crmoaia
• Heating：Omron Electric
• Screw Cooling：Fan
• Motor Brand：Sciemens
• Transport Package：Covered by PE Film
• Specification：CE& ISO2001
• Trademark：Jiangsu FAYGO Union Machinery Co., Ltd.
• Origin：China
• HS Code：847000
• Production Capacity：200kg,H

ModelMulti layerSingle layerHighly-effcientExtruder specificationØ 120/33, Ø 65/33Ø 120/33Ø 150/33Thickness of the product0.25-1.5mm0.20-1.5mm0.20-1.5mmMain motor power110kw/45kw110kw160kwMax extrusion capacity500kg/h450kg/h800kg/h
pp/pe sheet production line Main Features
1. Good mould ability due to the large L/D ratio of the screw in the extrusion unit
2. Advanced hydraulic pressure, high speed net changing fitting without stopping the machine
3. Convenient operation, excellent function
4. Improves production efficiency
5. The mould of heat inside is featured by easy mould adjusting, equal sheet thickness, constant flowing speed, high hot utilization and energy saving
6. Sheet cutting machines work automatically, such as cutting sheets with settled length, counting number by adopting the micro-computer and laser-pressed control.
pvc sheet production line especialy PET sheet Features

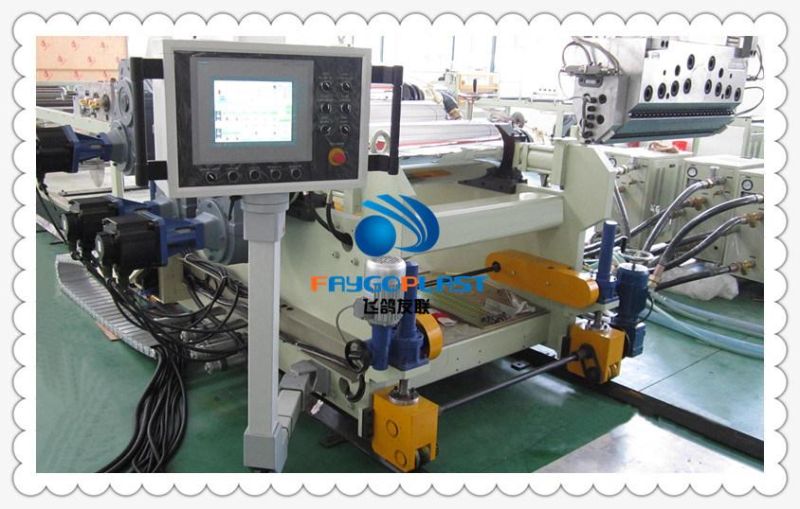

Plastic single-layer or multi-layer sheet extrusion machine
It's one of the most advanced production lines with matured technology and stability in China. Compared with other same kind equipment, it's over 30% higher in overall efficiency. Line is suitable for PS, PP, PE as well.
Free of crystallization drying system, the new designed line can greatly reduces cost of production.
PETG is called low temperature PET, it's a new environment-friendly packing material with features such as high luster, good transparency, excellent barrier property, self-adhesion, which is used for glue bonding and high-frequency processing.
CPET is a kind of modified PET. With good resistance to high temperature, it is usually used for package in microwave oven.
It can be used as top grade package for cosmetics, medicine, tobacco & alcohol and common goods such as stationery, advertisements, posters and all kinds of cards.
