• Model NO.：CYS
• Automatic：Yes
• Exported：25 Countries
• Raw Material：Clay. Mud Soil Shale

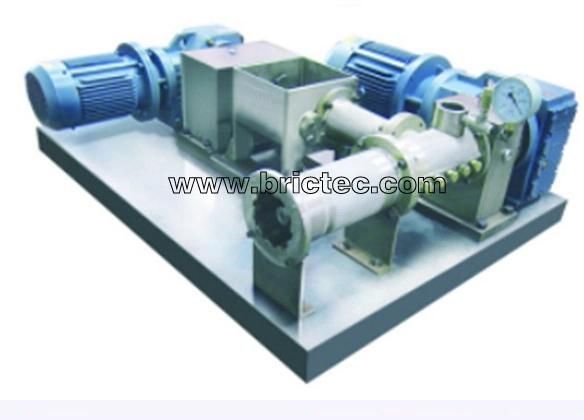

• Method：Vacuum Extruder
• Processing：Brick Production Line
• Product：Brick
• Brick Raw Material：Clay
• Transport Package：Sea Worthy Packed in Containers.
• Specification：3.6x120
• Trademark：brictec
• Origin：China
• HS Code：8474
• Production Capacity：Annual 15 Million

Basic Info.

Model NO. CYS Automatic Yes Exported 25 Countries Raw Material Clay. Mud Soil Shale Method Vacuum Extruder Processing Brick Production Line Product Brick Brick Raw Material Clay Transport Package Sea Worthy Packed in Containers. Specification 3.6x120 Trademark brictec Origin China HS Code 8474 Production Capacity Annual 15 Million

Product Description

Company Description

>We majors in the abroad & home fired-brick designing, kiln designing, factory building designing and turn-key project.
>We have many professional specialists, among which 6 are professor-level engineer and 10 are of high title.
>We have accomplished over 50 brick projects of engineering, trading, technical support in Asia, Africa and South American countries.
>We have also successfully constructed over 20 production lines in China.
The business scope of our company is:
Turnkey project of brick plant
Design & Build Complete Modern Brick Plant
Consultancy Services for Brick Plant
Retrofit and Modernize of Existing Brick Plant
Supply Brick Making Machinery
Build Dryer & Kiln

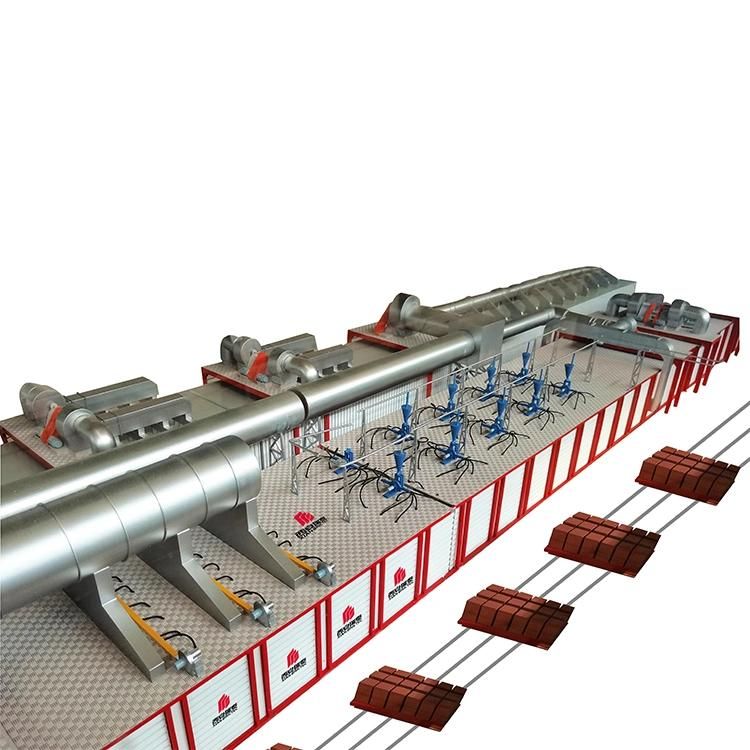

TUNNEL KILN


Tunnel kiln is an advanced and automatic technology in brick making industry.

The advantage as following:

1. Continuous kiln
A tunnel kiln is a type of continuous kiln that is typically open on both ends and heated centrally. Building materials, such as bricks, may be passed through the device in an uninterrupted fashion, allowing large volumes to be processed without shutting off the kiln between batches.

2. Fuel
A number of different methods can be used to heat tunnel kilns. Typical heat sources include coal, gas, and other fuel.

3. Automatic Computer-controlled
Tunnel Kilns are computer-controlled, continuously operating car-bottom kilns. Computer technology allows kiln car movement through the kiln to be controlled for changes in firing curves and firing temperatures. Automatic controls can be programmed to make firing changes for differences in product size and color.

4. High capacity
Ferry Pushers move the train of cars non-stop at a predetermined rate. This method is ideal for all ceramic industries requiring high volume production and/or a continuous production process.

If you are interested in tunnel kiln, you have to consider two conditions:
1. The fuel can be coal, gas, coal-gas, oil etc.
2. The investment budget will be depend on the automatic degree (project design and feasibility study, investment pay-back period)


Before-sale services:
(1) Tell customer how to build a brick plant, the complete plant including three parts, brick shaping machinery, drying and firing. (Confirm clay, power electricity, water, land area, fund)

(2) Guide customers to choose the best and economic plant, recover the investment within short time.

(3) site inspection

(4) We are responsible for the offer, flow chart, and detail specification of each machinery.

In-Sale services:

(1)Quality control must be inspected strictly

(2)In accordance with the agreements stipulated in the contract

After-sale services:
(1) We will send the technicians to guide with device installation, debugging and training operators until customers are fully satisfied.

(2) Guarantee for machinery, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:
1. Daily wear and tear 2. Mishandling or improper operation3. Incoming power supply fluctuation
4. Consumable and spare parts.

(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.

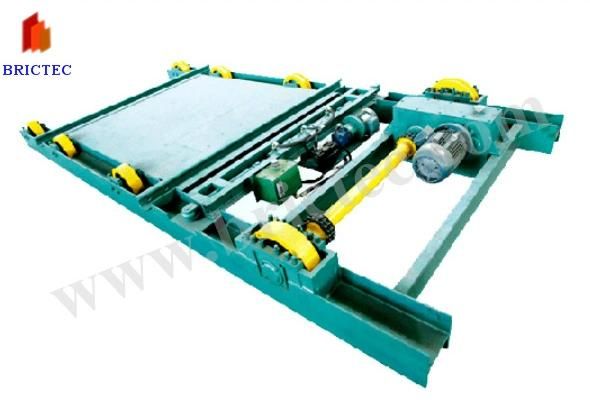

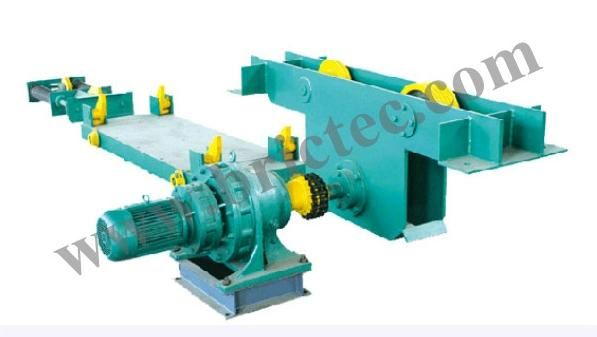

model	CYS-4	CYS-4.6	CYS-6.9
purpose	3.3m	4.6m	6.9m
Max. hauling power(KN)	22	45	60
Max. travel(mm)	2800	2800	3750
stretching speed(m/min)	6	6	5
power(kW)	3	3	4
reducer model	BWED42	BWED42	BWED53
size(mm)	4480×1380×732	5050×730×737	5650×1380×795
