• Model NO.：QT3-20 Semi Automatic Hydraulic Block machine
• Rated Pressure：16MPa
• Cycle Time：25-35s
• Power：17.5kw
• Pallet Size：680X550mm
• Vibration Force：60kn
• Color：Blue or Customized
• Name：Qtf3-20 Semi Automatic Concrete Block Machine
• Transport Package：Container
• Specification：4000x3500x2300mm
• Trademark：HF
• Origin：Shandong, China
• HS Code：8474802000
• Production Capacity：6000PCS,Day

Basic Info.

Model NO. QT3-20 Semi Automatic Hydraulic Block machine Rated Pressure 16MPa Cycle Time 25-35s Power 17.5kw Pallet Size 680X550mm Vibration Force 60kn Color Blue or Customized Name Qtf3-20 Semi Automatic Concrete Block Machine Transport Package Container Specification 4000x3500x2300mm Trademark HF Origin Shandong, China HS Code 8474802000 Production Capacity 6000PCS/Day

Product Description

QT3-20 Semi Automatic Hydraulic Concrete Cement Sand Interock Paving Block Making Machine Siemens brand PLC control system / Siemens Motor / Omron Switch / International Standard Steel / Manganese steel mold

Product Introduction

QTF3-20 Semi Automatic Concrete Block machine is applied to urban-rural concrete block enterprises manufacturing wall blocks ,roadway blocks ,and shadow wall blocks.
It adopts hydraulic drive compression molding .and the high-speed and strong vibration ensure the qualified product molding layered material -distributing manufactures paving bricks of various color ,it is especially applied to manufacturing high-mixture fly ash solid brick and cork bricks ,etc.
This color paver forming machine is a practical machine that simple in structure, artistic in figure. Especially suitable to the production of the paving brick, bread brick, it can produce various kinds of paving bricks, roads bricks etc.

Technicals

Model	QTF3-20
Rated pressure	17.5Mpa
Dimension	4000*3500*2300mm
Forming Cycle	25-35s
Vibration form	Platform vibration
Weight	3500kg
Power	17.5kw
Vibration force	60KN
Working area	1500 sq.m
Pallet size	680x550mm

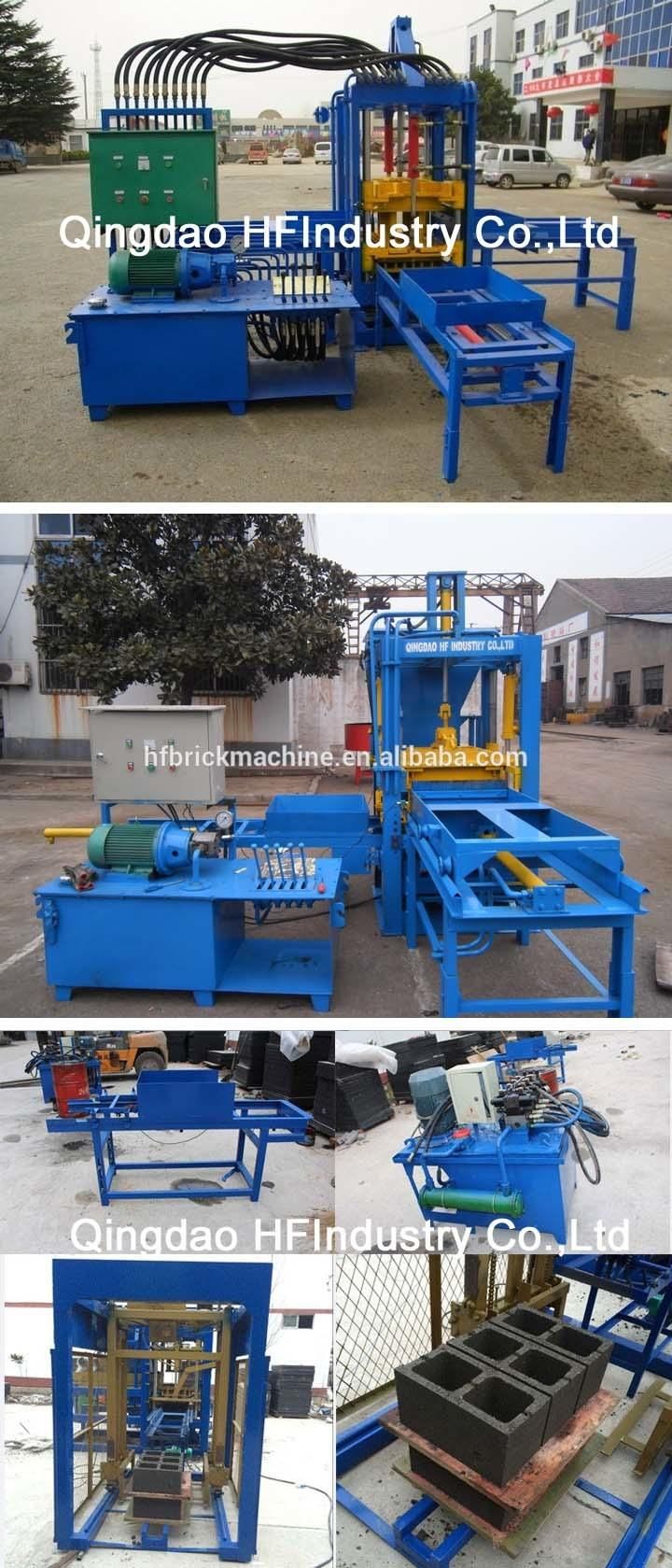

Machine pictures

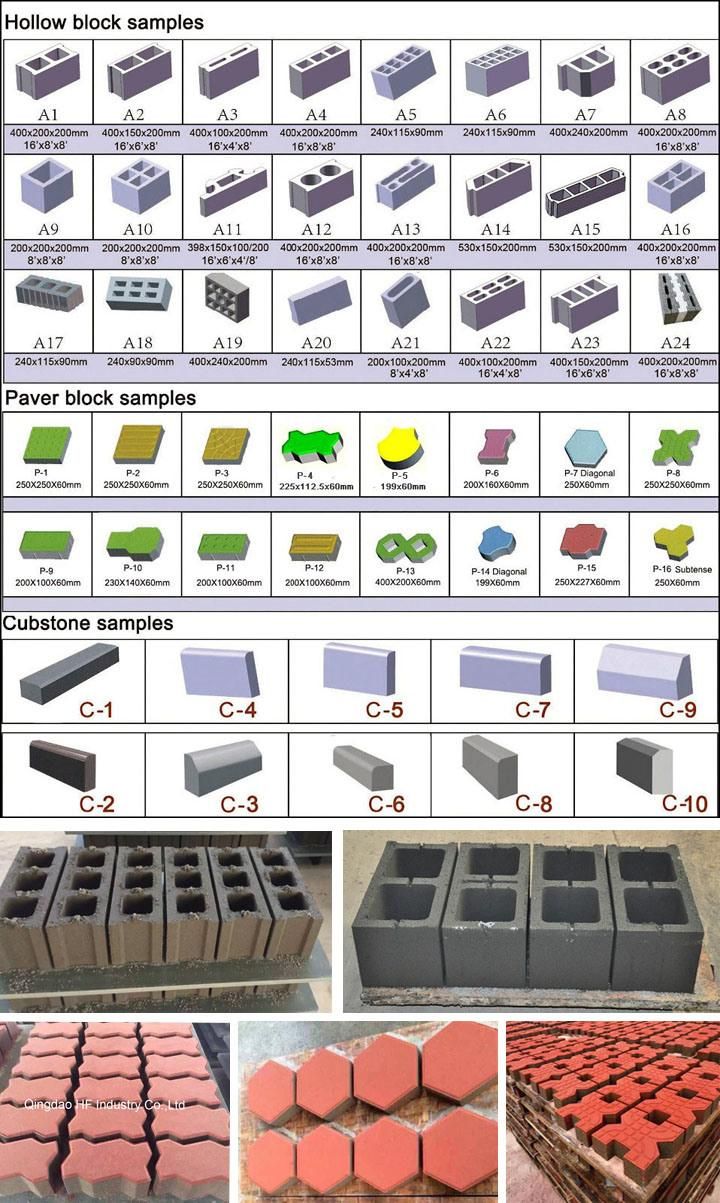

Block samples

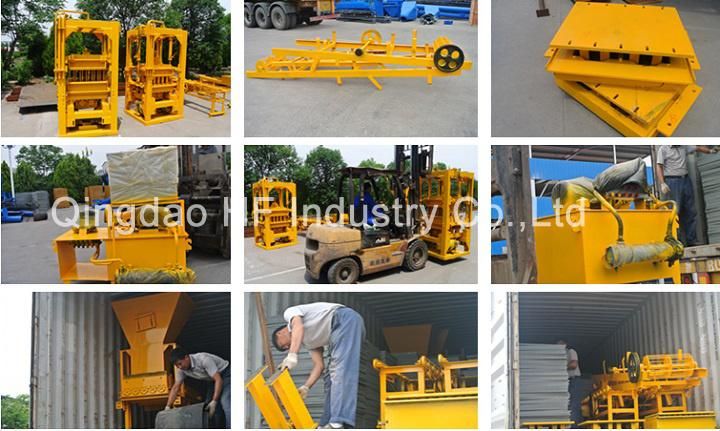

Loading



Our factory
QINGDAO HF INDUSTRY CO.,LTD is the professional supplier and exporter for block making machine and brick machine. For the past 26 years, our company has been manufacturing a wide selection of concrete block making machines. We offer automatic and semi-automatic block production lines for making hollow/solid /paver/curbstone blocks. In addition to these, we are also a leader supplier of block pallets for concrete brick production.
Quality is the core of our company. Advanced inspection equipment and stringent quality control tests make us pass ISO9001:2008 certification.

We implement "Three-Guarantee" installation and debugging for free, focusing on quality and after-sales services. Our company also supplies training services to clients.Our products have been exported to Africa, South America, Middle East,South Asia,East Europe,Russia and so on.
