• Model NO.：CLJZD-CNC-6000
• Rotary Speed：2800r,Min
• Cutting Length：400-5800mm
• Cutting Width：120mm
• Cutting Height：120mm
• Cutting Angle：45,90 and 135 Degree
• Machine Dimension：16000*2600*2000mm
• Weight：4000kg
• Transport Package：Wooden
• Specification：Saw blade diameter 500mm
• Trademark：Truepro
• Origin：China
• HS Code：846150
• Production Capacity：100sets,Year

Basic Info.

Model NO. CLJZD-CNC-6000 Rotary Speed 2800r/Min Cutting Length 400-5800mm Cutting Width 120mm Cutting Height 120mm Cutting Angle 45,90 and 135 Degree Machine Dimension 16000*2600*2000mm Weight 4000kg Transport Package Wooden Specification Saw blade diameter 500mm Trademark Truepro Origin China HS Code 846150 Production Capacity 100sets/Year

Product Description

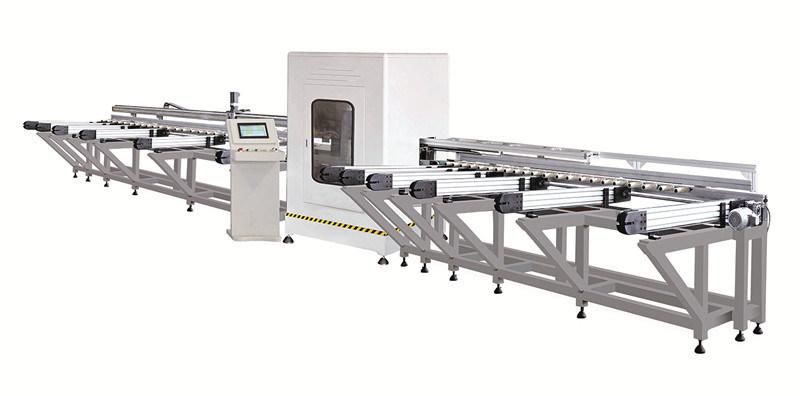

            Aluminum profile intelligent CNC cutting miter saw machining center for 45 degree


Machine feature:
1.Worktable auto feeding and clamping continuous.
2.High precision linear guide-way.
3.Mechanical arm,high precision gear and rack make feeding accuracy.
4.Blade connected directly with imported motor.To cut smoothly and steadly and high precision.
5.Cutting motion is servo controlled.Cutting efficiency and quality are much better.
6.SIEMENS control system makes machine working steady and reliable.
7.±45° or 90° cutting is finished continuous and effciency.
8.Totally closed design,operator protect.
9.Option:bar code printer for E-work.

Parameter:

Model	CLJZD-CNC-6000
Power Supply	220V/380V415V 50HZ
Cutting motor power	3*2.2KW
Feeding motor power	0.75Kw
Discharge motor power	0.75Kw
Air Pressure	0.5~0.8MPa
Saw Blade Specification	Φ500*Φ30*4.4*120T
Cutting Length	30~120mm
Cutting Width	30*120mm
Raw materials	400~5800mm
Cutting angle deviation	±5'
Length deviation	±0.2mm
Repeat locating length deviation	±0.05mm
Overall Dimension	16000*2600*2000mm
Weight	About 4000Kg

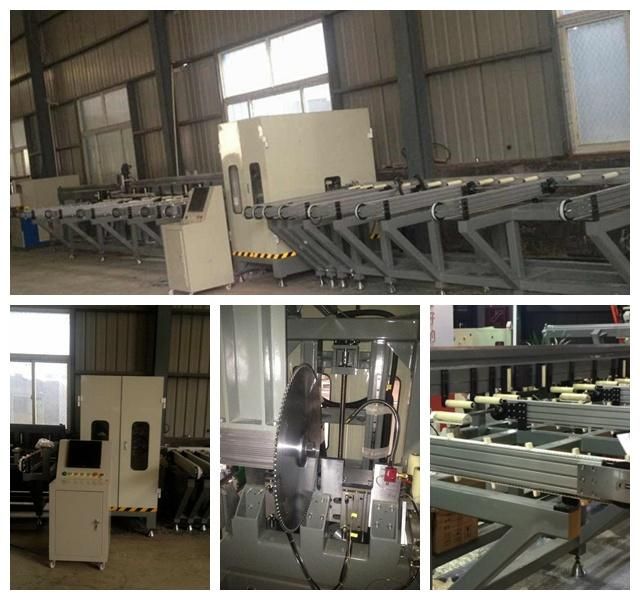

Machine details:






Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
