• Model NO.：ZY-GY160
• Production Speed：10-20m,Min
• Rolled Strip Width：Less Than 300mm
• Hydraulic Oil：46 # Hydraulic Oil
• Rolled Strip Steel Material：Q235
• Pressure：0.7MPa
• Transport Package：Shipping, Rain-Proof Package
• Trademark：Zhangyun
• Origin：Zhangjiagang City
• HS Code：8455212000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. ZY-GY160 Production Speed 10-20m/Min Rolled Strip Width Less Than 300mm Hydraulic Oil 46 # Hydraulic Oil Rolled Strip Steel Material Q235 Pressure 0.7MPa Transport Package Shipping, Rain-Proof Package Trademark Zhangyun Origin Zhangjiagang City HS Code 8455212000 Production Capacity 5 Sets/Month

Product Description

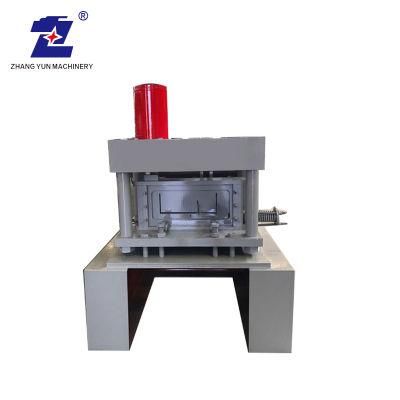

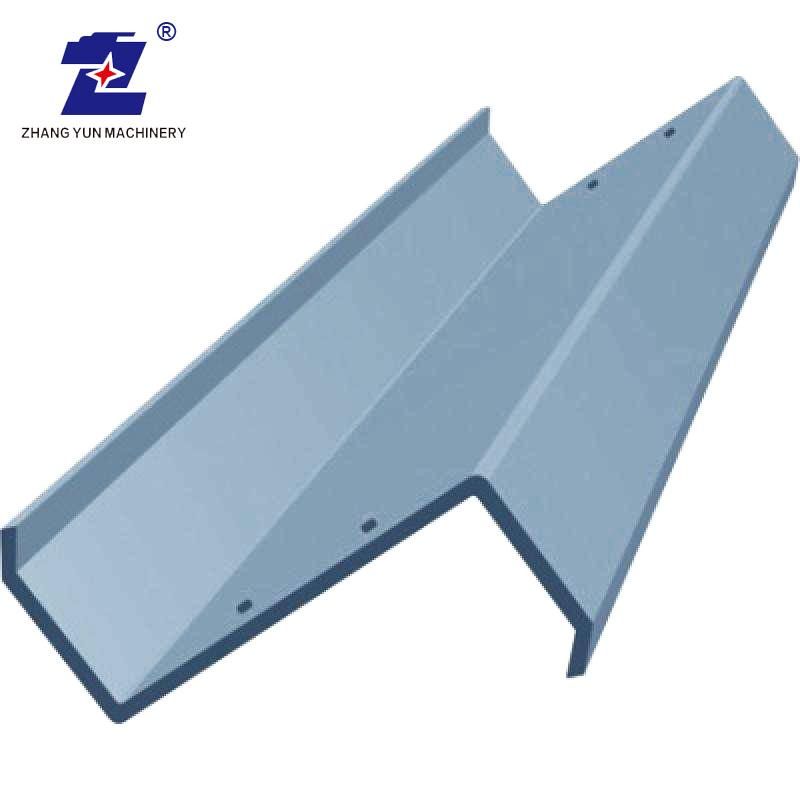

Galvanized Steel Profile Drywall Rolled Omega Forming Machine

Technical Specifications of the C channel roll forming machine

1. Equipment feeding direction: left into the right out.

2. voltage parameters 380,50Hz, 3 phase.

3. Gas source: flow rate of 0.5m3 / min; pressure of 0.7MPa.

4. hydraulic oil: 46 # hydraulic oil.

5. gear oil: 18 # hyperbolic gear oil.

6. Rolled strip width: ≤ 300 mm

7. Rolled strip steel material: Q235

8. Production speed: 10 ~ 20 m / min

9. Rolling workpiece length: custom

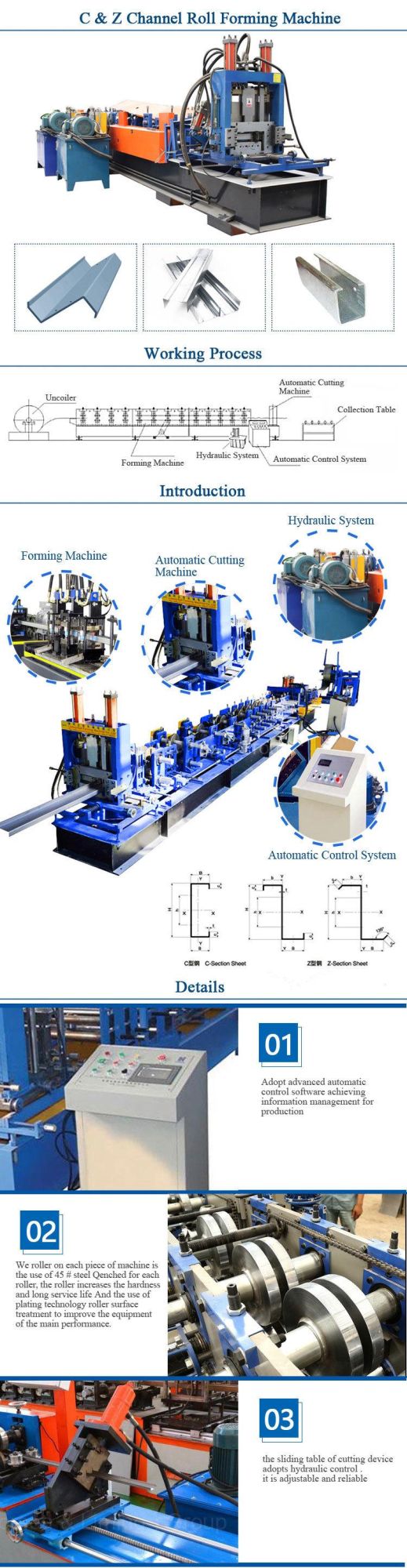

Production process
Discharge → leveling → cold forming → tracking cut off (hydraulic cut off) → receipt



FAQ
1.Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2.Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3.Q: what is the MOQ?
A: One set
4.Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5.Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6.Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7.Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.
9.Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
