High Capacity Mini Cement Production Line Export to World
Henan Zhengzhou Mining Machinery Co., Ltd.- Application:Construction, Mineral Operation
- Certification:CE, ISO
- Customized:Customized
- Automatic Grade:Automatic
- Certificate:ISO9001,ISO14000
- Installation:Under Our Engineer′s Guide
Base Info
- Model NO.:Various
- After Sale Service:We Offer
- Output:Can Be Customized
- Advantage:Professional Manufacture
- Experience:More Than 50 Years
- Design:by Professional Engineer
- Spare Parts:We Offer
- Testing:We Offer
- Transport Package:Standard Export Packing
- Specification:ISO9001, ISO14000
- Trademark:ZK
- Origin:Zhengzhou, China
- Production Capacity:50 Set,Sets Per Year
Description
Basic Info.
Model NO. Various After Sale Service We Offer Output Can Be Customized Advantage Professional Manufacture Experience More Than 50 Years Design by Professional Engineer Spare Parts We Offer Testing We Offer Transport Package Standard Export Packing Specification ISO9001, ISO14000 Trademark ZK Origin Zhengzhou, China Production Capacity 50 Set/Sets Per YearProduct Description

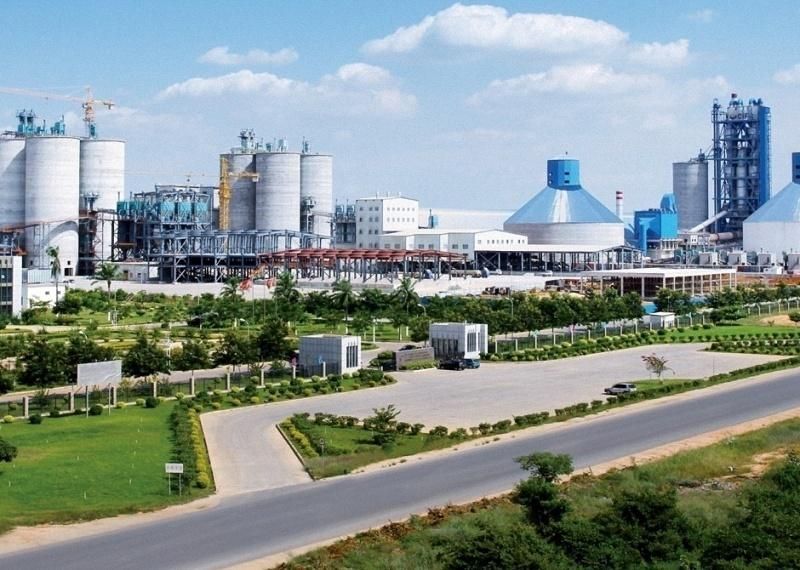

Features of Cement Production Line1. High level of automatization
Cement production line adopts DCS central control system, which is highly automatic.
2. Saving energy and protecting environment
The line adopts energy-saving equipments and the process is highly effective and simple. It can effectively reduce exhaust emission. Dust emission concentration is less than 50mg/Nm3.
Mined limestone is transported by conveyors to the crusher for crushing. Crushed limestone is ground by ball mill or vertical mill into powder, and then transported by conveyor to the raw material silo for storage and further mixing. After homogenization, raw material goes into the preheating system for decomposition. The decomposition rate is about 95%. After calcined in the rotary kiln, raw material becomes clinker. Clinker, gypsum, and other mixed materials are ground in ball mill into cement of qualified fineness. Powder separator is used to adjust fineness of cement to achieve energy-saving production. Packaging machine and automatic loading machine are used to pack and deliver bags of cement.
Main Equipments for Cement Production Line
Rotary kiln, vertical preheater, cement ball mill, raw mill, air swept coal mill, rotary cooler, jaw crusher, DTIIfixed belt conveyor, bag filter, bucket elevator, screw conveyor, ZSW series vibrating feeder, coal burner and so on.
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://www.hnzkmachine/
24-hour Free Sales Consulting Phone: 861-0371-55902868.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://hnzkjq.en.made-in-china.com/calcining.html
Rotary Kiln: http://hnzkjq.en.made-in-china.com/calcining/5.html
Preheater: http://hnzkjq.en.made-in-china.com/calcining/8.html
Cement Mill: http://hnzkjq.en.made-in-china.com/grinding/17.html
Rotary Dryer: http://hnzkjq.en.made-in-china.com/calcining/116.html
Raw Mill: http://hnzkjq.en.made-in-china.com/grinding/16.html
Ball Mill: http://hnzkjq.en.made-in-china.com/grinding/18.html
type(mm) | indiclination(%) | rotation speed(r/min) | input tempreture(ºC) | motor power(kw) | outpur(t/h) | weight(t) |
GZΦ800×8000 | 5 | 7.5 | ≤700 | 4-6 | 0.8-2.0 | 3.5 |
GZΦ1000×10000 | 5 | 6.19 | ≤700 | 5.5-7.5 | 1.0-3.5 | 5.6 |
GZΦ1200×10000 | 5 | 5.3 | ≤700 | 11-13 | 1.8-5 | 14.04 |
GZΦ1500×12000 | 5 | 4.5 | ≤800 | 13-15 | 3.3-7.5 | 17.76 |
GZΦ1800×14000 | 5 | 3.3 | ≤800 | 18.5 | 5-9 | 29 |
GZΦ2200×120000 | 5 | 3 | ≤700 | 22 | 6-12 | 33 |
GZΦ2400×18000 | 5 | 2.5 | ≤800 | 30 | 10-15 | 53.3 |
Mechanical Equipment of the cement plant :
1.Limestone crushing & conveying |
2..Clay crushing & conveying |
3.Clay & iron powder pre-homogenization pile |
4.Limestone pre-homogenization pile |
5.Raw material dosing station |
6.Raw material grinding & exhaust gas treatment |
7.Raw meal homogenization silo & feeding kiln |
8.kiln outlet |
9.Rotary kiln & triple air duct |
10.Kiln inlet & clinker conveying |
11.Raw coal crushing & conveying |
12.Raw coal pre-homogenization pile & conveying |
13.Coal powder preparation & conveying |
14.Clinker, gypsum storage & dosing & conveying |
15.Gypsum crushing & conveying |
16.Cement grinding & conveying |
17.Cement storage & bulk loading |
18.Cement packing & conveying |
19.Chemical laboratory equipment |
