Building Material Making Machinery

Cnm Yjg150 Galvanized Sheathing Ducts Making Machine

Henan Prestressing Equipment Co., Limited
  • Machine Color:Green, Blue, Electroplating Sliver, etc
  • Power(W):3kw

Base Info

  • Model NO.:CNM-YJG150
  • Type:Metal Ducts Making Machiine
  • Certificate:SGS, BV and ISO9001:2008
  • Main Motor Voltage:Ree Phase, 380V, 50Hz, Single Phase, 220V
  • Shape of Ducts:Round, Flat
  • Molding Ducts Speed:Fast
  • Diameter for Ducts:35mm-135mm
  • Steel Strip Thickness:0.25mm, 0.28mm, 0.3mm
  • Steel Strip Width:0.36mm
  • Certification:CE, ISO
  • Condition:New
  • Customized:Non-Customized
  • Structure:Horizontal
  • Transmission Method:Electric
  • Transport Package:Ply Wooden Case or Carton, or Container
  • Specification:SGS, ISO9001-2008, BV
  • Trademark:CNM
  • Origin:Hennan Province
  • HS Code:845521200
  • Production Capacity:200 Sets Per Month
  • Package size per unit product:200.00cm * 150.00cm * 200.00cm
  • Gross weight per unit product:200.000kg

Description

Producing Metal Duct Spee13.5m/min For 35 to 58mm Diameter  Metal Duct(Adjustable)12m/min For 60 to 85mm Diameter Metal Duct(Adjustable)11m/min For90 to 115mm Metal Duct(Adjustable)10/min For Diameter Of 120 to 135mm Metal Duct(Adjustable)VoltageThree Phase, 380V, 50HZ/ Single Phase, 220V, 50HZProduction CapacityAbout 5000 meters one dayFeaturesCan do continuous work(work 24 hours),saving labour, saving raw materials and costMain Power3kW, 7kw, 11kw, can be selectedCutting Machine Motor2.2KWLubricant Pump Motor40WWeight850KGDimension:1.7mx1.3mx1.5m

Speed can be adjustableMaking Flat Ducts SpecificationFlat Duct Width (mm)   (Can be Adjustable) Flat Duct Height( mm)                (Can be Adjustable)  5020 6020 7020 8020 9020 8040 10050
ROUND AND FLAT Post Tension Fully Auto Operated Corrugated Metal Pipe Forming Machine

Cnm Yjg150 Galvanized Sheathing Ducts Making Machine

OUR ADVANTAGES

Henan Prestressing Equipment Co.,Limited manufacture full complete post tension components, materials and post tension equipment for buildings and bridge construction.

Our Product Ranges:

1. Anchor System: unbonded monostrand anchor system, multistrands anchor system, flat anchor system, arch type flat anchor, anchor barrel and wedges, ground anchor, rock and soil anchor, anchor wedges, anchor bearing plate, spiral reinforcing rings.

2. PC Strand System: unbonded pc strand, bonded pc strand, 12.7mm prestressed cable, 15.24mm prestressed strand, epoxy coated pc strand,galvanized pc strand, 6mm, 7mm, 9mm pc steel wire.

3. Duct System: galvanized metal duct, HDPE plastic duct, curved type galvanized metal duct, flat duct, corrugated pipe.

4. Prestressing Equipment: Monostrand Stressed Jack and Pump. Multi-strands Post Tension Jack and Pump, YH30 Onion Jack, Corrugated Duct Making Machine, Flat Duct Machine, GYJ500A Compression Fitting Machine, Grouting Pump and Mixer Machine, Intelligent Tension System.

5. Heavy equipment: bridge girder launching machine, drilling rig, bridge girder transporter

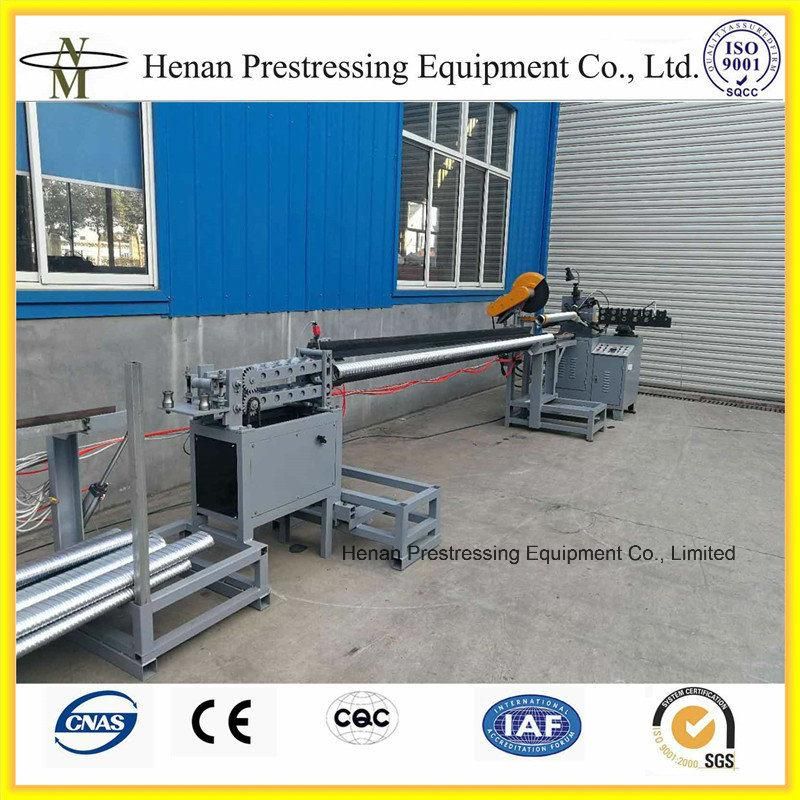

New Generation Post Tension Spiral Metal Duct Making Machine




1). Q: What information should provide before placing order?
We are appreciated you provide us detail information about your requirement:
1. Inner Diameter Duct you need.
2. Voltage for machine.
3. What is your required Destination Port.
4. Order Quantity.

2) Q: How is the delivery lead time:
A: Goods in stock: within 3 days, Goods out of stock(7 days), Goods need to be customized(10-15 days).

3) What is your Minimum Order?
A: MOQ: 1 Set.

4) Q: Payment Terms?
A TT, LC, Western Union, Paypal, etc.

5) Q: How to transport the goods:
A: by shipping, airflight, express.

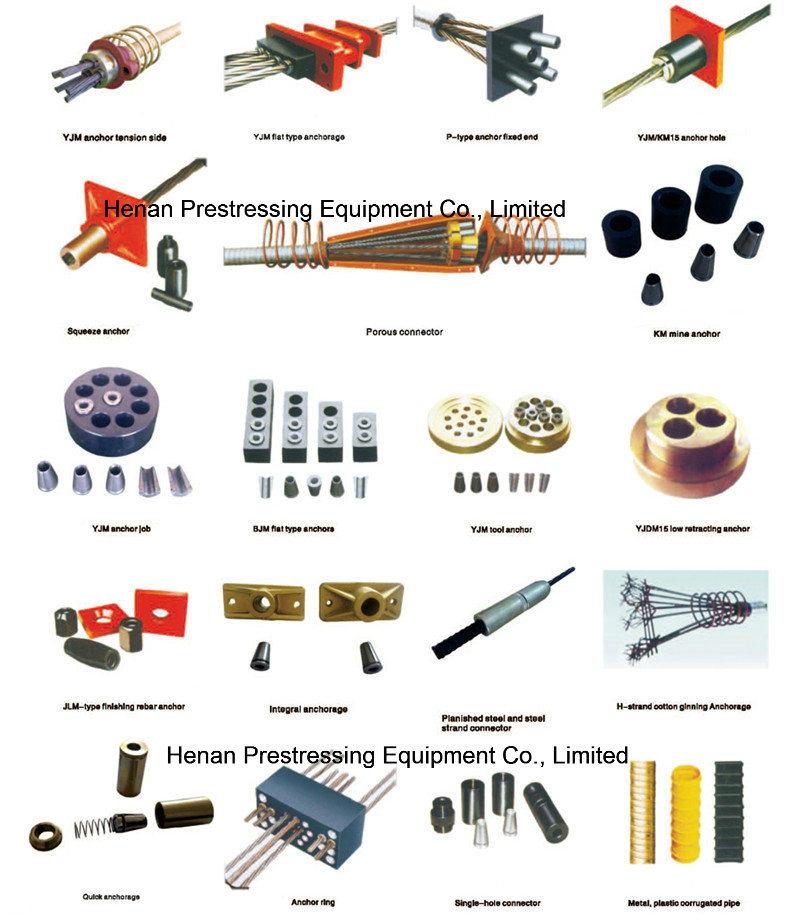

Prestressed Anchor System

Cnm Yjg150 Galvanized Sheathing Ducts Making Machine

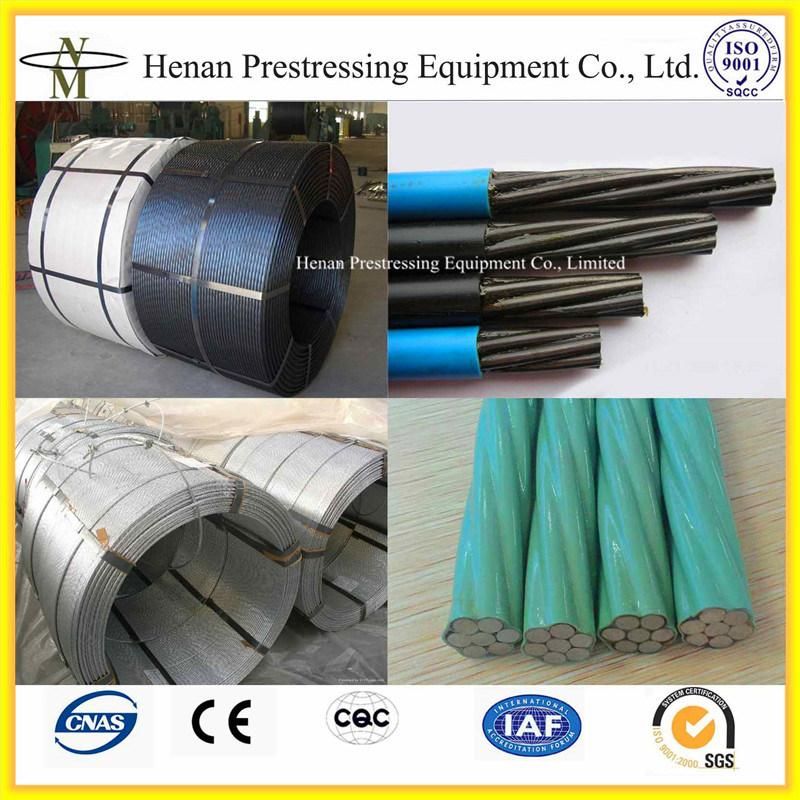

Prestressed Strand Cable



Cnm Yjg150 Galvanized Sheathing Ducts Making Machine

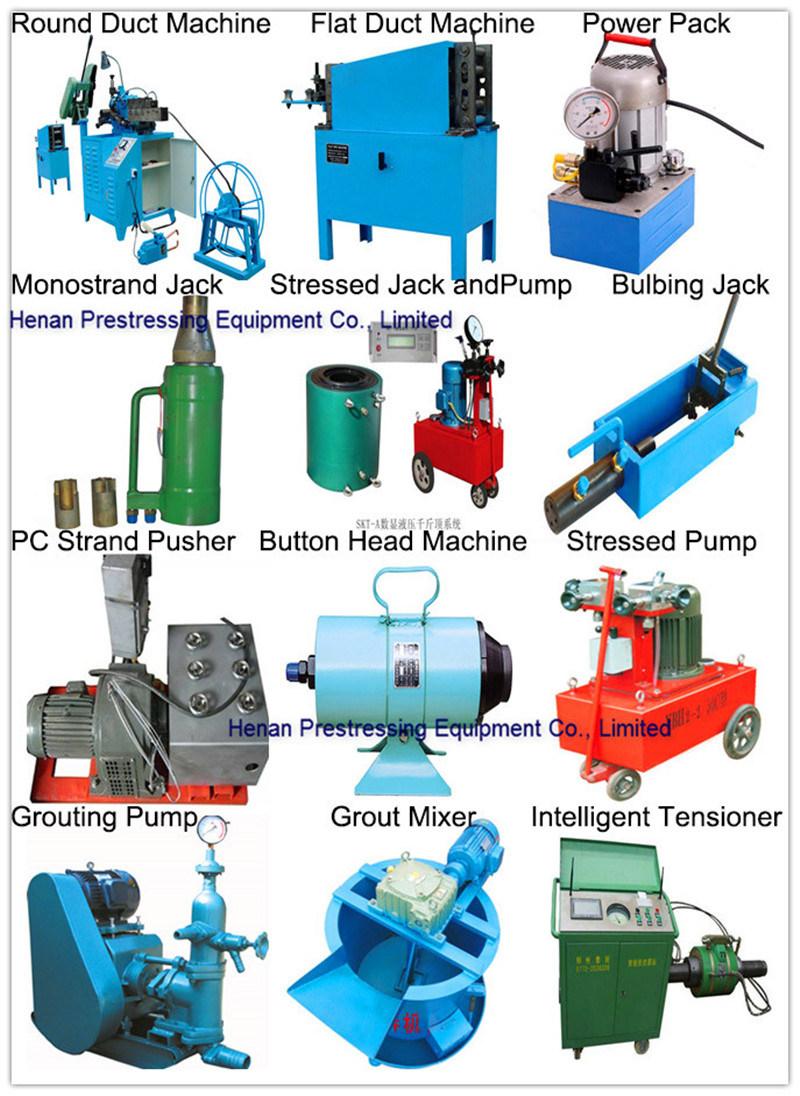

Prestressing Equimpent



Cnm Yjg150 Galvanized Sheathing Ducts Making Machine
