Building Material Making Machinery

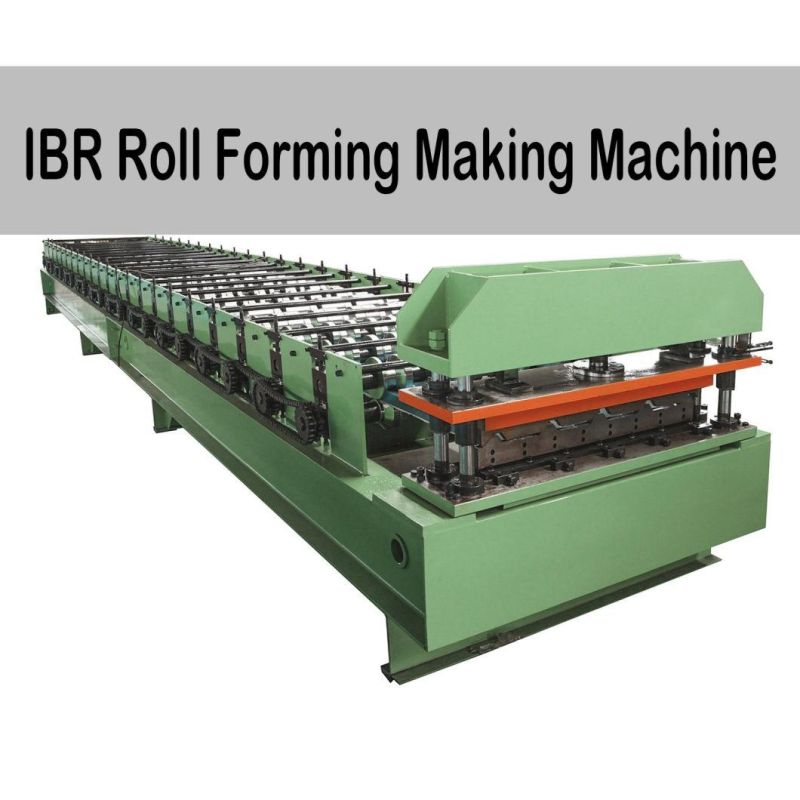

Metal Roofing Sheet Corrugating Ibr Pbr Iron Sheet Roll Forming Making Machine Cold Galvanizing Line

General Industry Tech Hebei Developing Co., Ltd.
  • Tile Type:Colored Steel
  • Certification:CE, ISO
  • Condition:New
  • Customized:Customized

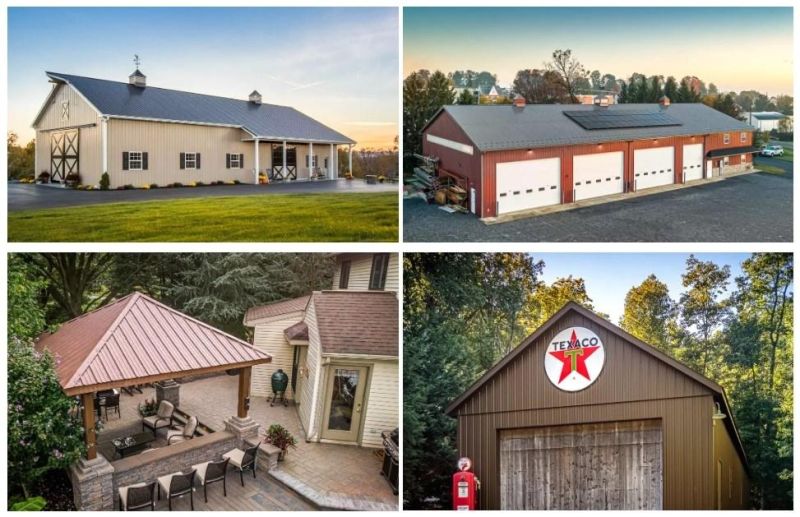

  • Usage:Roof, Wall, Floor
  • Transmission Method:Hydraulic Pressure

Base Info

  • Model NO.:IBR-ZTRFM
  • Speed:12m,Min
  • Coil Thickness:0.3-0.8mm
  • D.Shaft:80mm
  • Main Frame:350h
  • Power:9kw
  • Weight:6.5t
  • Thickness of Material:0.3-0.8mm
  • Dimension:7500X1500X1910mm
  • Voltage:380V 3phase 50Hz
  • Material of Roller:High Grade 45# Forged Steel Plated with Hard Chrom
  • Material of Cutting:Cr12 Mould Steel with Quenched Treatment
  • Workers:1-2 Only
  • Transport Package:Container
  • Specification:40ft
  • Trademark:GEIT-ZTRFM
  • Origin:China
  • HS Code:8455221000
  • Production Capacity:200sets,Year

Description

Overview

Product Parameters



Product Description

Metal Roofing Sheet Corrugating Ibr Pbr Iron Sheet Roll Forming Making Machine Cold Galvanizing Line
Metal Roofing Sheet Corrugating Ibr Pbr Iron Sheet Roll Forming Making Machine Cold Galvanizing LineMetal Roofing Sheet Corrugating Ibr Pbr Iron Sheet Roll Forming Making Machine Cold Galvanizing Line

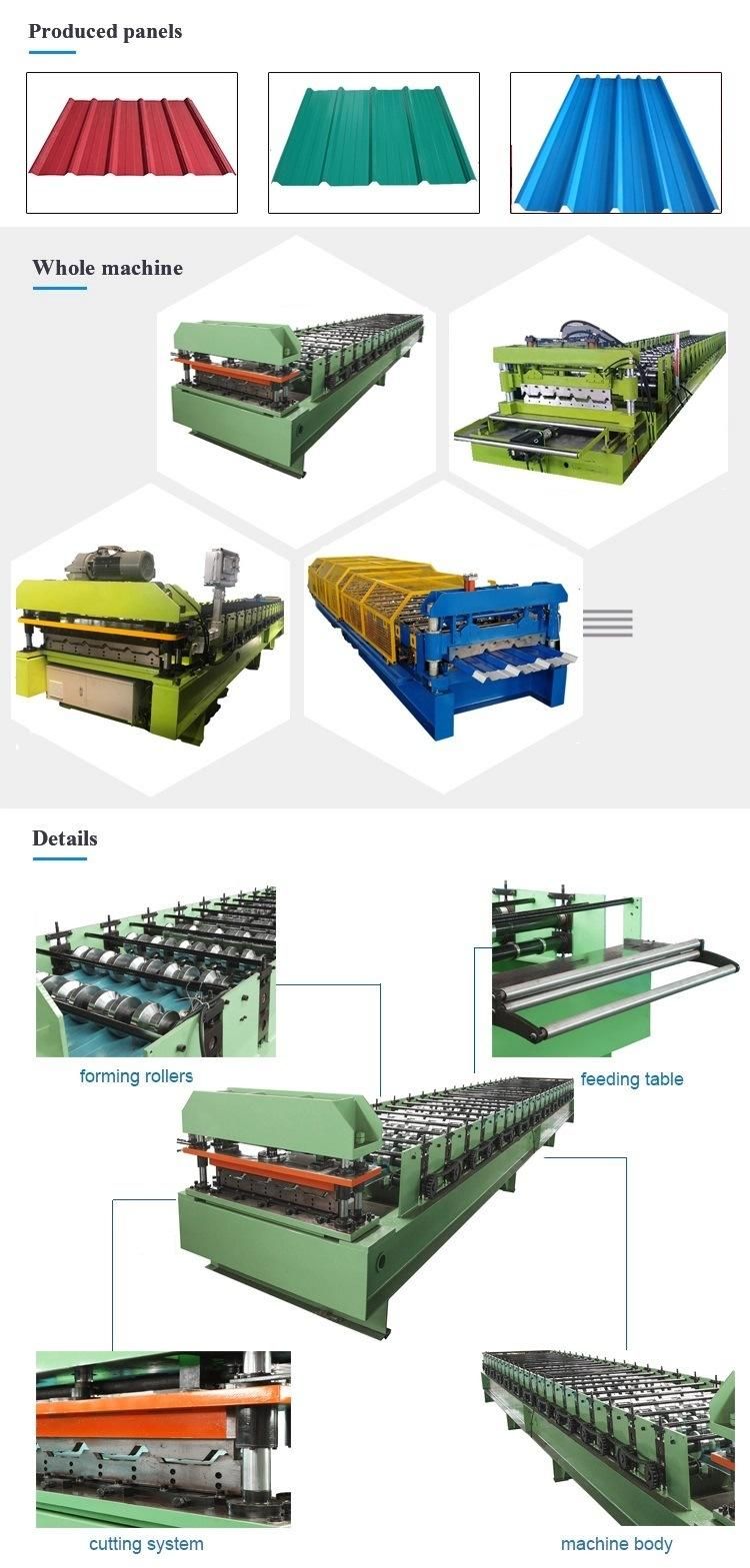

Detailed Photos

Metal Roofing Sheet Corrugating Ibr Pbr Iron Sheet Roll Forming Making Machine Cold Galvanizing Line

Metal Roofing Sheet Corrugating Ibr Pbr Iron Sheet Roll Forming Making Machine Cold Galvanizing Line

Certifications

Metal Roofing Sheet Corrugating Ibr Pbr Iron Sheet Roll Forming Making Machine Cold Galvanizing Line

Packaging & Shipping



Company Profile

GEIT GROUP  is a professional manufacturer and exporter which is concerned with the design, development and production of cold roll forming machines.
The factory located in Botou-Hebei, which focus on designing and manufacturing of different types cold roll forming machines.
