• Model NO.：PE
• Application：Industry
• Type：Pipe Production Line
• Material for Production：HDPE LDPE
• Diameter Range：110-2000mm
• Calibration Method：Vacuum Calibration
• Transport Package：Standard Package for Export
• Specification：ISO9001: 2008
• Trademark：Huashida
• Origin：Qingdao, China
• HS Code：8477209000
• Production Capacity：50 Sets,Year

Basic Info.

Model NO. PE Application Industry Type Pipe Production Line Material for Production HDPE LDPE Diameter Range 110-2000mm Calibration Method Vacuum Calibration Transport Package Standard Package for Export Specification ISO9001: 2008 Trademark Huashida Origin Qingdao, China HS Code 8477209000 Production Capacity 50 Sets/Year

Product Description

Plastic HDPE Thin Wall Jacket Shell Casing Pipe Extruder 110-2000mm

EFFICIENT      INTELLIGENT     HIGH QUALITY



Production line of HDPE jacket pipe is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as a protective cover of  PU foam thermal Pre-insulated Pipe according to international standard.
The HDPE jacket pipe is produced by vacuum calibrating method with smooth internal and external wall, long service life, good anti-corrosion insulation and mechanical performance.

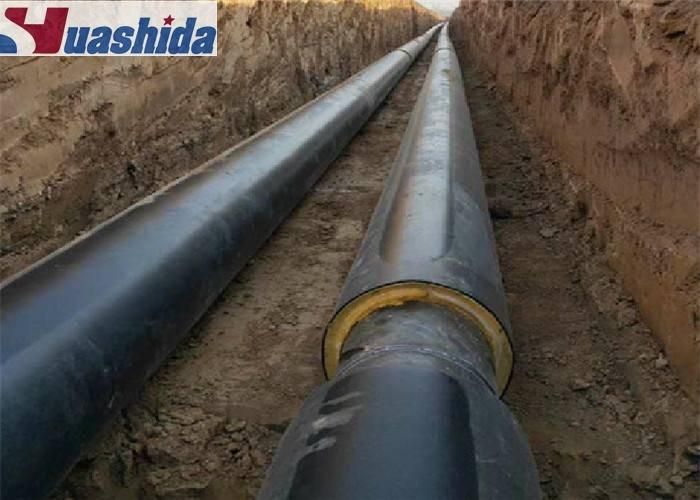

---Pipe Application: outer protective casing of  PUF thermal insulated pipe, which is widely used in central heating, cooling oil&gas transmission and other industrial areas.




Features of Production line of HDPE jacket pipe
-small dimension
-high degree of automation, can be operated by one person, saving labor costs.
-a long service life.
-high-efficiency extruder gives larger output, stable performance.
-pipe wall is average and smooth
-no waste of raw material
-once forming. No need to trim the edge.
Production range: 110-2000mm (by different models)

Production line composition:
-1set   Vacuum loader
-1set   Hopper dryer
-1set   High-efficiency single screw extruder
-1set   Vacuum calibration table
-1set   Water spraying tank
-1set   Hauling machine
-1set   Cutting machine
-1set   Discharging Frame

Style	PE-110/600	PE-365/760	PE-655/1380	PE-960/1680	PE-1054/1860
Main Extruder	SJ-75/33	SJ-90/33	SJ-120/33	SJ-150/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ365-760m	Φ655-1380mm	Φ960-1680mm	Φ1054-1860mm
Capacity	250-350kg/h	400-500kg/h	700-900kg/h	1000-1200kg/h	1000-1250kg/h
Installed power	160kw	240kw	480kw	580kw	580kw
Length	26m	32m	36m	40m	45m

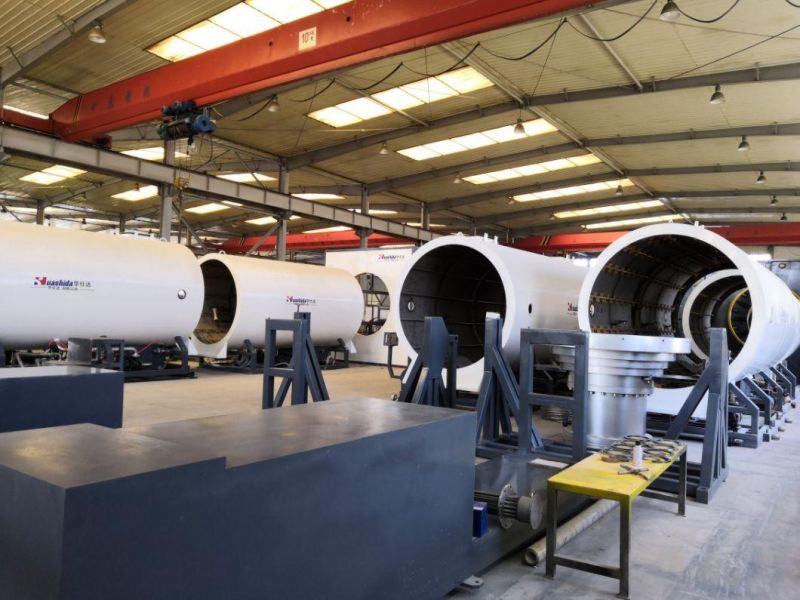

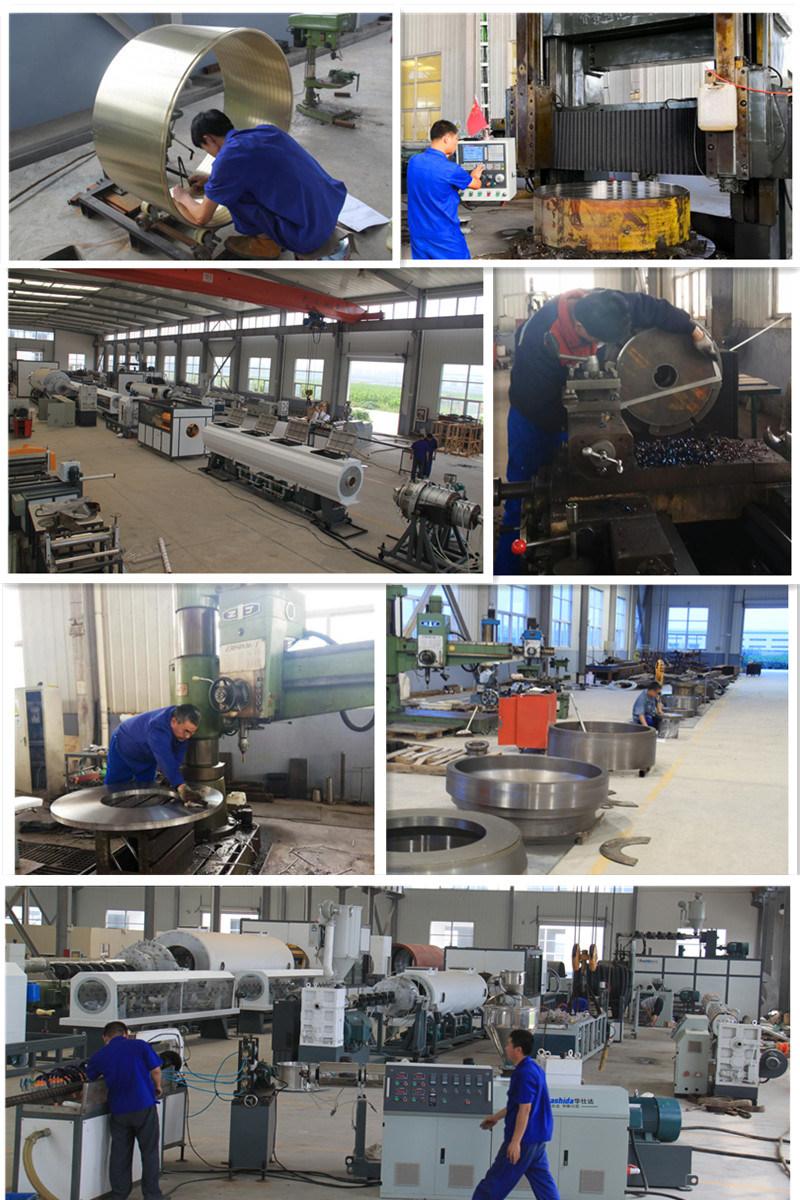

Workshop


Customers' inspection

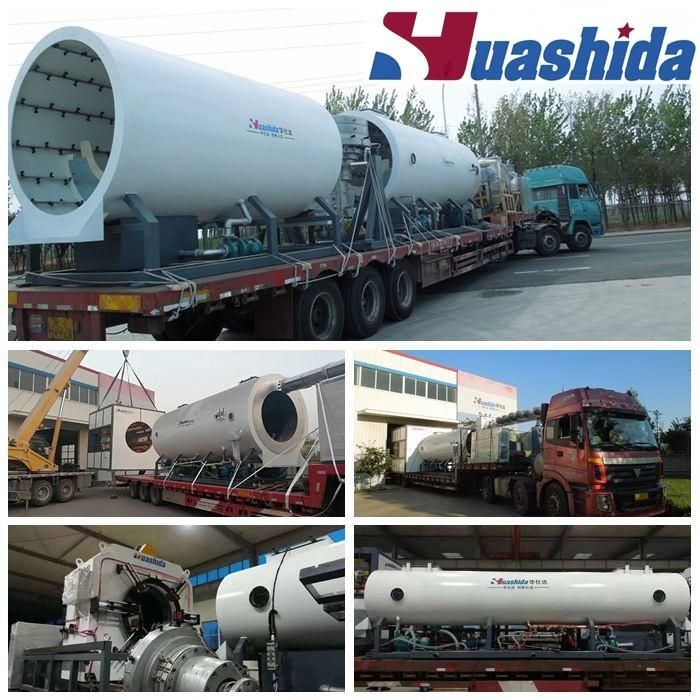

Delivery






Welcome customers to visit our factory!
