Color Stone Coated Steel Metal Roof Tile Sheet Making Roll Forming Machine
Cangzhou Hener International Trade Co., Ltd.- After-sales Service：Online Support, Free Spare Parts
- Warranty：2 Years
- Tile Type：Stone Coated Tile
- Certification：CE, ISO
- Condition：New
- Customized：Customized
Base Info
- Usage：Roof, Wall
- Transmission Method：Gear
- Thickness：0.3-0.8mm
- Max Line Speed of Roll Former：5-8m,Min
- Drive：Chain
- Appearance Size：4000*1000*2000mm
- Driving Section：3kw Excitation Motor or Frequency Speed Regulation
- Automatic Pressure Spray Tank：1 Set ; Capability: 200kg ; Range: 0.6~1MPa
- Automatic Glue Machine Motor：Servo Motor ; Power: 750W ; PLC
- Automatic Spray Gun：4 Set (Spare Parts)
- Auto Stone Coated Section：3500*1000*1500mm
- Manual Sandblast Gun：4 Sets
- The First Time Drying Section：25000*1000*1200mm
- Frame Type Thermal Insulation Wall：1.2mm Cold Steel with Rock Wool
- Automatic Temperature Controller：4 Sets ; Range: 0°~160°
- Infrared Heating Tube：30PCS ; Power: 30kw
- Auto Face Glue Spraying Section：3000*1000*2000mm
- Transport Package：in Nude, with Waterproof Cloth and Stow-Wood
- Specification：80000mm*1400mm*2000mm
- Origin：China
- HS Code：84552210
- Production Capacity：30sets,Month
Description
1
Horizontal, continuous product, stepless frequency conversion variable speeds,
PLC control, having reliable performances, easy operation.

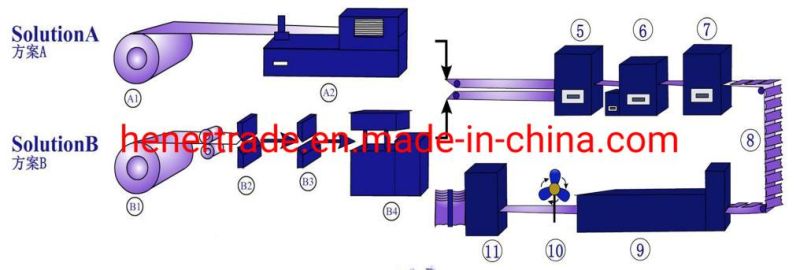

A1. Hydraulic decoiler 5. Automatic spray bottom dispensing machine
A2.Automatic roll forming machine 6. Automatic sand blasting machine
B1. Hydraulic decoiler 7. Automatic spray surface glue
B2.Cutter machine 8. Automatic roll frame
B3.Trimmer 9. Automatic curing tunnel drying oven
B4. Stamping forming machine 10. cooling machine
11. Finished product packaging equipment
NO. 1 Auto bottom glue spraying section
Appearance size
4000*1000*2000mm
Driving section
3KW Excitation motor or frequency speed regulation
(AS per customers' requirements )
Automatic pressure spray tank
1 set ; Capability: 200kg ; Range: 0.6~1Mpa
Automatic glue machine motor
Servo motor ; Power: 750w ; PLC
Automatic spray gun
4 set (spare parts)
Dust collecting fan
1 set ; Power: 200w
Damp proof lamp
1 pc ; Power: 100w
Conveying device
Chain reciprocating
Air compressor
1 set ; Power: 7.5kw
Dust control of axial flow fan
1 set ; Power: 200w
Agitator
1 set ; Power: 1.5kw
NO. 2 Auto stone coated section
Appearance size
3500*1000*1500mm
Framework
Steel welding
Conveying device
Chain reciprocating
Automatic sand hopper
1 set ; Capability: 200kg
Bucket lift
1 set
Manual sandblast gun
4 sets

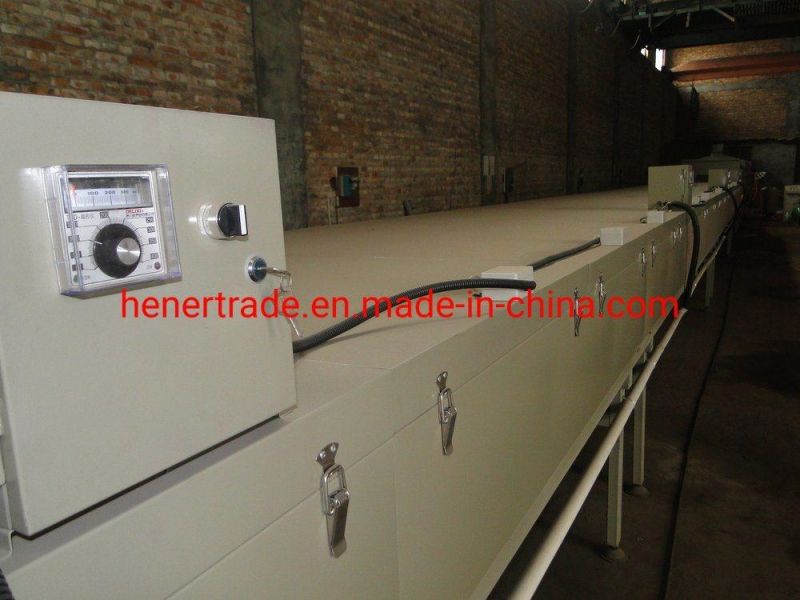

NO. 3 The first time drying section
Appearance size
25000*1000*1200mm
Framework
Steel welding
Frame type thermal insulation wall
1.2mm cold steel with Rock wool
Automatic temperature controller
4 sets ; Range: 0°~160°
Infrared heating tube
30pcs ; Power: 30kw
Conveying device
Chain reciprocating
Air cooling device
1 set ; Power: 200w
NO. 4 Auto face glue spraying section
Appearance size
3000*1000*2000mm
Framework
Steel welding
Damp proof lamp
1 pc ; Power:100w
Automatic pressure spray tank
1 set ; Capability: 200kg ; Range: 0.6~1Mpa
Conveying device
Chain reciprocating
Automatic spray gun
4 sets (spare parts)
Manual patch glue gun
4 sets
Dust control of axial flow fan
1 set ; Power: 200w
Automatic glue machine motor
Servo motor ; Power: 750w
NO. 5 The second time drying section
Appearance size
30000*1000*1200mm
Framework
Steel welding
Frame type thermal insulation wall
1.2mm cold steel with Rock wool
Automatic temperature controller
4 sets ; Range: 0°~160°
Infrared heating tube
30pcs ; Power: 30kw
Conveying device
Chain reciprocating
Air cooling device
1 set ; Power: 200w
About the workers need:
FAQ1. Does your company can customized my needed profile? Yes sir/Madam. Our machines are all customized according to customers' requests. Just provided me your needed profile
drawing and we can give you our professional machine design solution.2. If i don't have profile drawing, but i want to buy one machine, can you help me? Yes sir/ Madam. If you don't have profile drawings, the solutions have:2.1 : Provide me with your profiles' pictures ;2.2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you related
profile drawings.2.3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.3. What your company advantages? Yes sir/Madam. Our advantages have :3.1: We are a 12 years big factory. We have abundant machine designing and making experience. We can give you the best
machine solution.3.2: We have completed production system. And more than 20 sets of CNC machines which can support lots of machine
orders' making and guarantee the delivery.3.3 : We have 10 years foreign trade exported experience. Our sellers abundant experience can guarantee you will have a
pleasant purchase and use of the machine and after-sales experience. And cooperated with us , you can get more details about
the machine, including those problems that you can't think of but we can think of, we can tell you to ensure that you can buy the
most suitable machine for you.3.4 : We are a golden integrity roll forming machine company.
About the after-sale services, no worries, we will responsible for you. 4. Will i receive a good machine ? Same with my wanted ? Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again
before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received
is a good machine. Because after you satisfied with the machine, and then you pay balance. 5. What is the machine minimum quantity? One machine is okay. 6. What is your payment terms? 6.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.6.2 : We accept 100% L/C at sight6.3: We accept Western Union payments. 6.4 : Other payment terms you want to pay, please let me know and i will check and reply you.
