EPS/Rockwool Sandwich Panel Roof Sheet Roll Forming Machine Prodution Line

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Hydraulic Pressure

Base Info

  • Model NO.：970
  • Feeding Material Width：1200mm or Customized
  • Feeding Thickness：0.3-0.8mm
  • Main Motor Power：About 60kw
  • Cutting Method：Hydraulic Saw Cutting
  • Cutting Material：Cr12
  • Roller Material：45# Steel
  • Roller Station：14 Stations
  • Machine Color：as Customer Need
  • Transport Package：Main Machine with Simple Plastic Film.
  • Specification：size: about 45*2.25*2.25m
  • Trademark：KXD
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：3000 Sets,Year

Description

         Main parameters of roof sheet machine for sandwich panel machine1Suitable to processColor steel plate, galvanized sheet,aluminum coils and etc.2 Width of the feeding material1200mm3Roller station14 rows4Thickness of feeding material0.3-0.8mm5Productivity 10-15m/min6Rollers' material45# steel, with hard chrome on surface7Diameter of shaft80mm8Weight About 4.5 T9Size 8.5*1.55*1.5mm10Voltage380V 50Hz 3Phase11Main frame of machine300mm H steel12Main motor power4kw13Hydraulic cutting power4kw14Main frame350mm H steel
Overall power equipment:60 kw
Size of the line:overall length of the line is 38000mm(if your workshop is limited, please tell me, we will design the machine shorter for you)
Main machine unit size12500mm
Overall width of the line:2250mm(to make sure it can load in the container which is 2500mm width )
Overall height of the line:2200mm
Overall weight of the line:~12.5 t
rubber roller of machine unit45 stations
Main frame tube structure 80*180mm

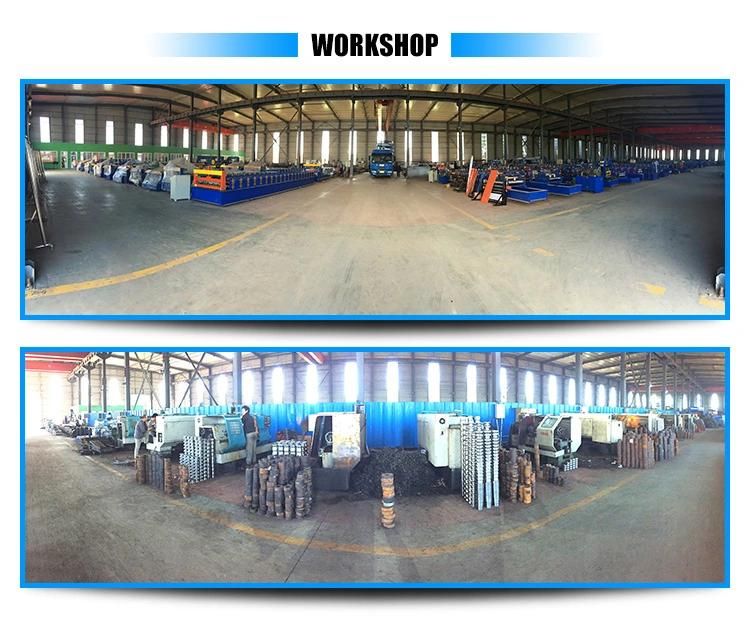

Our company information:

EPS/Rockwool Sandwich Panel Roof Sheet Roll Forming Machine Prodution Line

If there is anything I can do for you, please don't hesitate to contact me, my friend!

Contact: Ms Rita Gao
