• Model NO.：NM081
• Motor Power：50kw
• Material of Punching Mould：Cr12MOV
• Hydraulic Power：7.5kw
• Roll Forming Station：16 Groups
• Raw Material：Black Steel & Galvanized Steel
• Thickness of Raw Material：2.0-4.0mm
• Weight of Machine：About 25ton
• Electricity：PLC Detal, Made in Taiwan, 380V 50Hz, 3 Phases
• Transport Package：Steel Wires Fixed and 40gp Container Load
• Specification：9000mm*1800mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：Cangzhou, China
• HS Code：8455221000
• Production Capacity：10 Sets Per Month

Basic Info.

Model NO. NM081 Motor Power 50kw Material of Punching Mould Cr12MOV Hydraulic Power 7.5kw Roll Forming Station 16 Groups Raw Material Black Steel & Galvanized Steel Thickness of Raw Material 2.0-4.0mm Weight of Machine About 25ton Electricity PLC Detal, Made in Taiwan, 380V 50Hz, 3 Phases Transport Package Steel Wires Fixed and 40gp Container Load Specification 9000mm*1800mm*1500mm(L*W*H) Trademark NEXUS MACHINERY Origin Cangzhou, China HS Code 8455221000 Production Capacity 10 Sets Per Month

Product Description

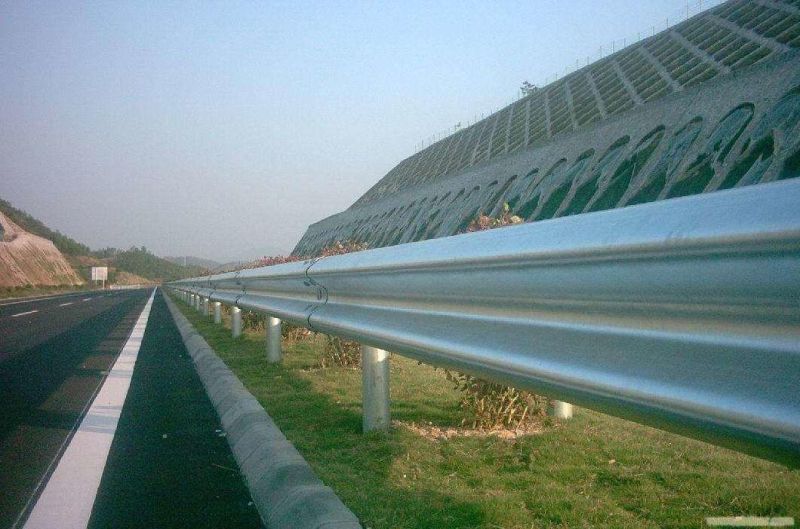

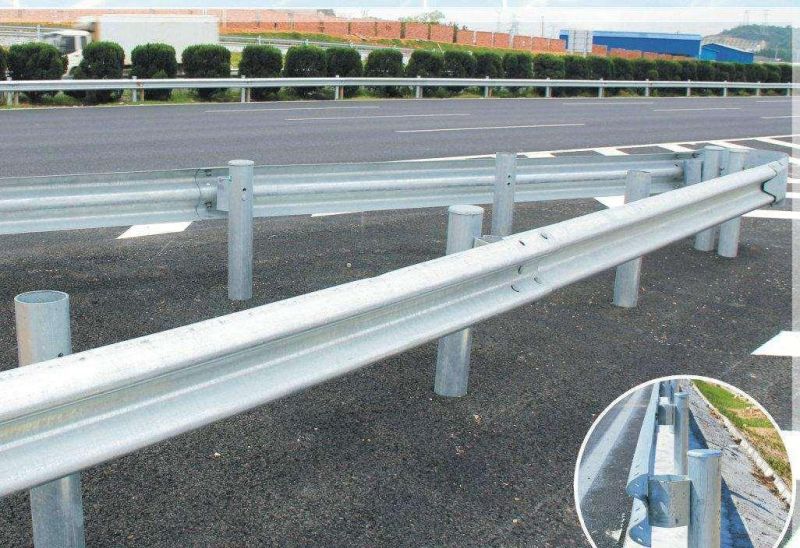

Standard Size Steel Guardrail Machine Highway Guardrail Roll Forming Machine

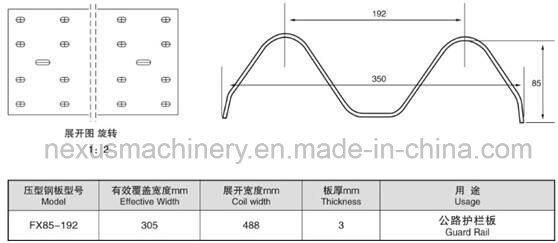

Profile drawings:

 The thickness of Material: 2.0-4.0 mm

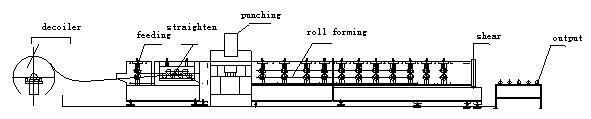

 Working flow:Uncoiler-Feeding-Leveling-- hydraulic punching-Roll forming-Hydraulic cutting-output table

Main Specification
Manual decoiler

1. Capacity: 3 ton
2. Loading width: MAX 600mm
3. Valid expanding range for coil inner diameter: 480-520mm

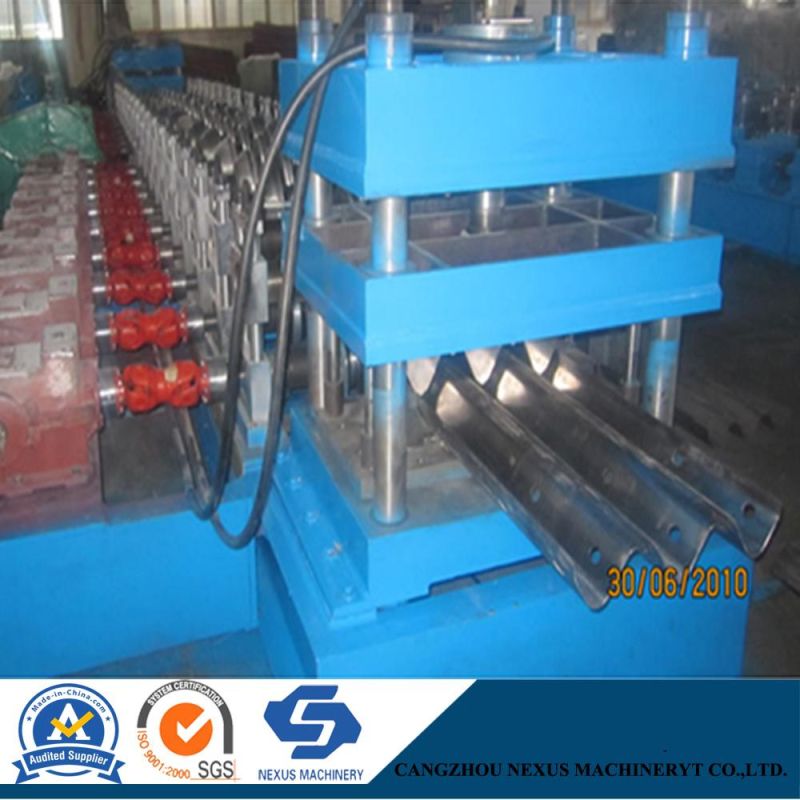

Main roll forming system

1. Main motor power: 50kw
2. Separate motor reducer: 750type
3. Punching: Hydraulic pre-punching before forming
4. Punching mould:Cr12mov
5. Hydraulic power: 7.5KW
6. Roller material: Gcr15 bearing steel and quench treatment hardness 58-62, chrome coated0.05mm
7. Leveling rollers: 7rollers(three upper and four lower)
8. Roll forming station: 16 groups
9. Diameter of main shaft: 100mm
10. Drive: independent gearbox with universal joint
11. Raw material: Black steel & galvanized steel
12. Thickness of Raw material: 2.0-4.0mm
13. Width of Raw material: 482mm
14. Working speed: 10m--15m/min(Exclude cutting time)
15. Cutting: Hydraulic cutting after forming, Auto cutting when reach the set length.
16. Cutting blade: Cr12mov
17. Cutting tolerance: +/- 1.5mm
18. Hydraulic pressure: 30Mpa
19. Weight of machine: about 25ton
20. Size of machine: About 9000×2150×1500mm L x W x H
21. Color of machine: yellow and blue
22. Coder: Omron
23. Control: PLC Delta, made in Taiwan, 380V 50HZ, 3 phases (Also can design)
24. Computer operating panel: touching screen

FAQ:

1. How long the machine could be made?- Normally speaking, guardrail machine could be made within 60 working days. If you need machines in a hurry, we can make it for you within 45 working days.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
