• Model NO.：Lxf-CNC-800
• Voltage：380V
• Process Usage：Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
• Numerical Control：CNC,Mnc
• Performance Classification：MID-Range CNC Machine Tools
• After-Sales Service：Lifetime Maintenance Service
• Application：Window
• Trademark：Zunbo
• Origin：China

Basic Info.

Model NO. Lxf-CNC-800 Voltage 380V Process Usage Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools Numerical Control CNC/Mnc Performance Classification MID-Range CNC Machine Tools After-Sales Service Lifetime Maintenance Service Application Window Trademark Zunbo Origin China

Product Description

Product Description:

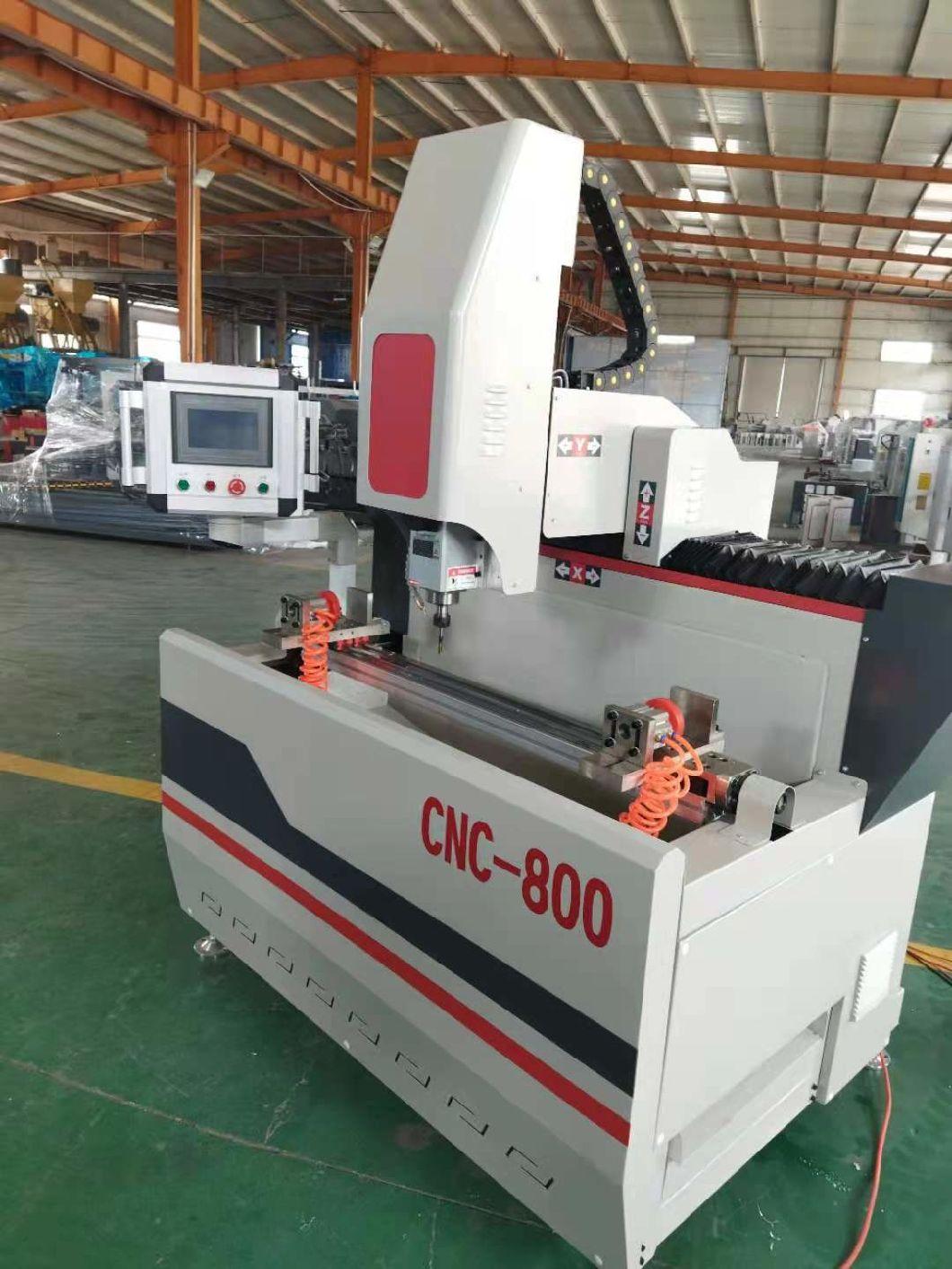

CNC drilling and milling machine
Model LXF-CNC-800 (body length can be customized)
Features:
☆ It is suitable for the processing of round holes, slot holes, key holes, special-shaped holes, etc. of industrial aluminum alloy profiles, doors and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, plane engraving and other processes.
☆ The main shaft adopts an air-cooled electric main shaft with a power of 6kw and a speed of 0~18000rpm, which has high precision, good safety and high reliability.
☆ Use CNC numerical control system. Equipped with professional CAD-CAM programming software. Automatic conversion of processing G codes, simple operation, high efficiency and low labor intensity.
☆ All the motion pairs adopt imported guide rails and sliders. The X axis is driven by high-precision helical gears and helical racks, and the Y-axis and Z-axes are driven by high-precision ball wire. The transmission is stable, which effectively improves the accuracy of the whole machine.
☆ Turn the worktable 180 degrees. -90°~0°~+90°, the profile can be processed on three sides in one clamping,
☆ When processing deep through holes (abnormal-shaped holes), deep hole processing can be realized by turning the worktable to improve efficiency and good quality.
☆ The manual pump oil supply system is adopted, and the cutter adopts a system-controlled spray cooling device.
☆ The main electrical components, circuit breakers, and AC contactors are all made by Schneider, France.
☆ The main parts of the machine tool are made of steel structure, all aging treatment. Transverse stroke (X axis) According to the length of the fuselage, the longer the fuselage, the longer the stroke.


Technical Parameter:

Power supply 380V/50Hz
Working pressure: 0.6~0.8MPa
Maximum tool installation length 165mm
Longitudinal stroke (Y axis) 400mm
Vertical stroke (Z axis) 400mm
