680 Ibr Roofing Sheet Panel Metal Cold Roll Forming Machine in South Africa
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- Product Type：Roll Forming Machine
- Automatic Grade：Automatic
- Power Source：Electric
- Screw Design：Double-Screw
- Certification：CE, ISO
- Condition：New
Base Info
- Model NO.：680
- Customized：Customized
- Feeding Material Width：1000mm or Customized
- Feeding Thickness：0.3-0.8mm
- Main Motor Power：4kw
- Cutting Method：Hydraulic Mould Cutting
- Cutting Material：Cr12
- Cutting Power：3kw
- Roller Material：45# Steel
- Roller Station：20 Stations
- Machine Color：as Customer Need
- Machine Size：About 10800*1450*1450mm
- Transport Package：Main Machine with Simple Plastic Film.
- Specification：size: about 10.8*1.45*1.45m
- Trademark：KXD
- Origin：China
- HS Code：8455221000
- Production Capacity：300 Sets,Year
Description
Main parameters of 680 IBR roofing sheet panel metal cold roll forming machine in South Africa1 Suitable to process Color steel plate, galvanized sheet,aluminum coils and etc. 2 Width of the feeding material 1000 mm 3 Roller station 20 rows 4 Thickness of feeding material 0.3-0.8mm 5 Productivity 10-15m/min 6 Rollers' material 45# steel, with hard chrome on surface 7 Diameter of shaft 70mm 8 Weight About 5.0 T 9 Size 10.8*1.45*1.45m 10 Voltage 380V 50Hz 3Phase 11 Main frame of machine 300mm H steel 12 Main motor power 3kw 13 Hydraulic cutting power 3kw 14 Side panel thickness 14-20mm
Our company information:

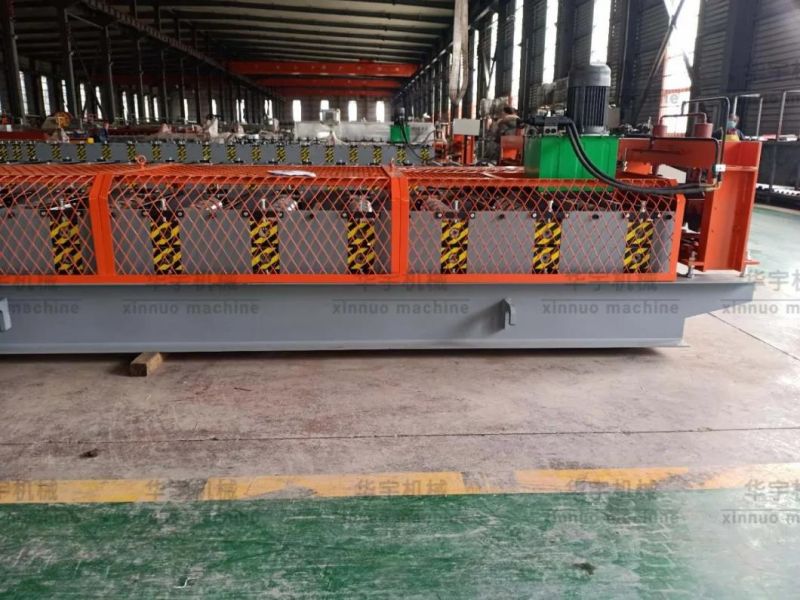

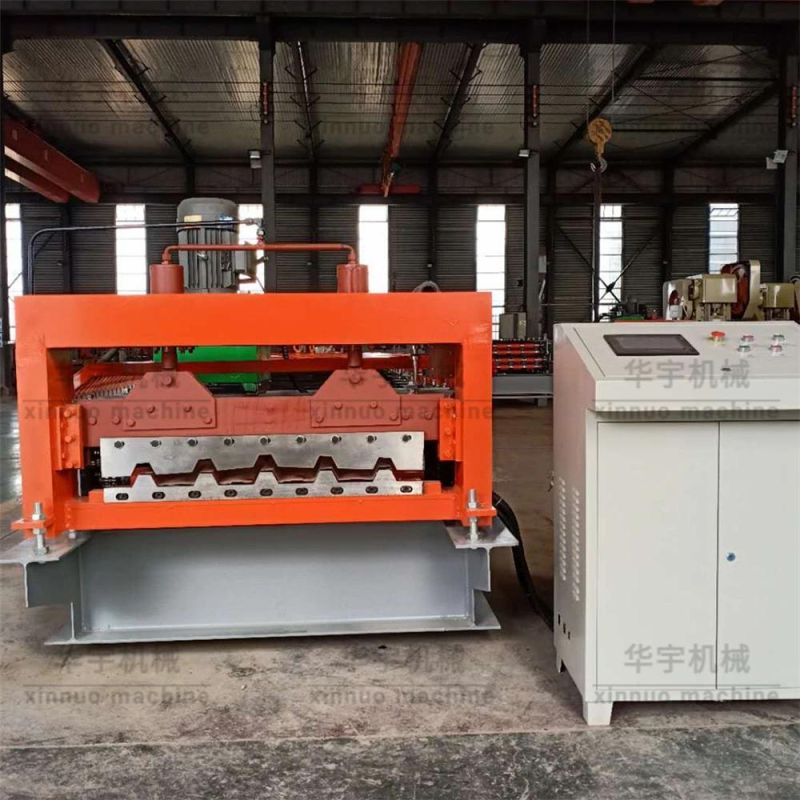

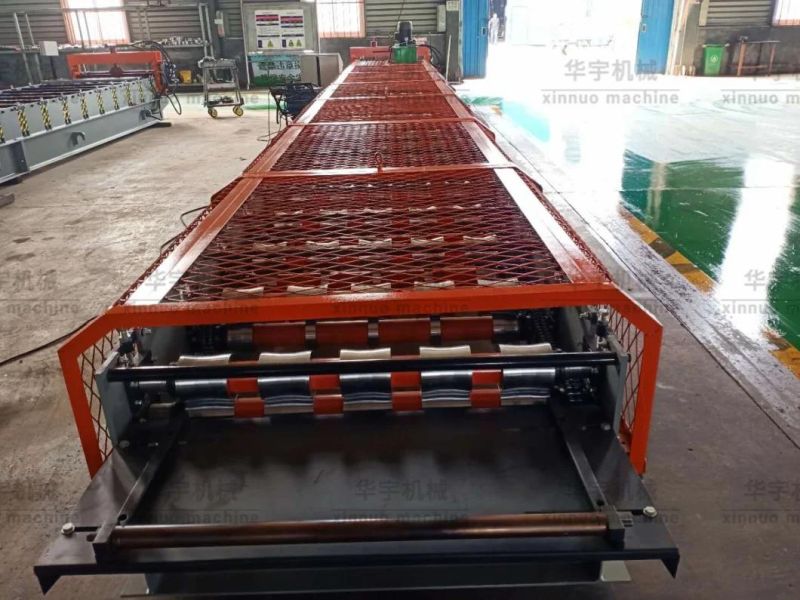

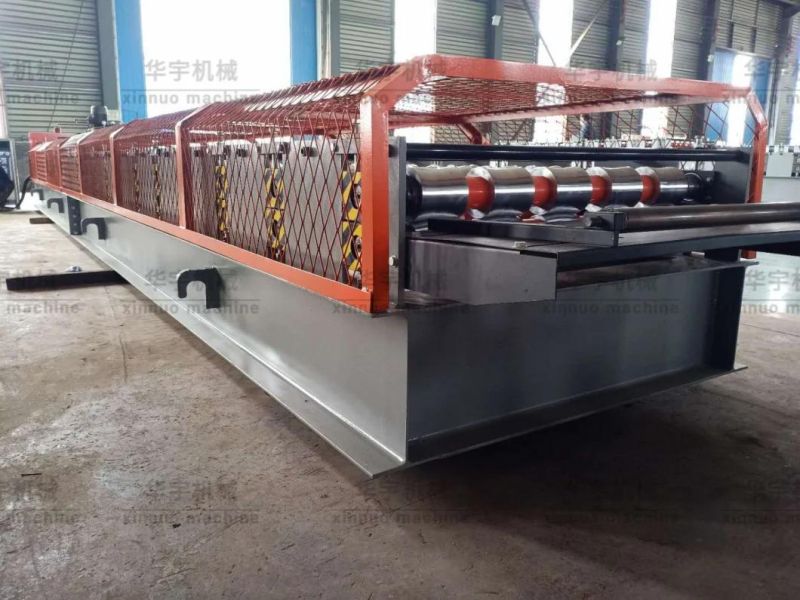

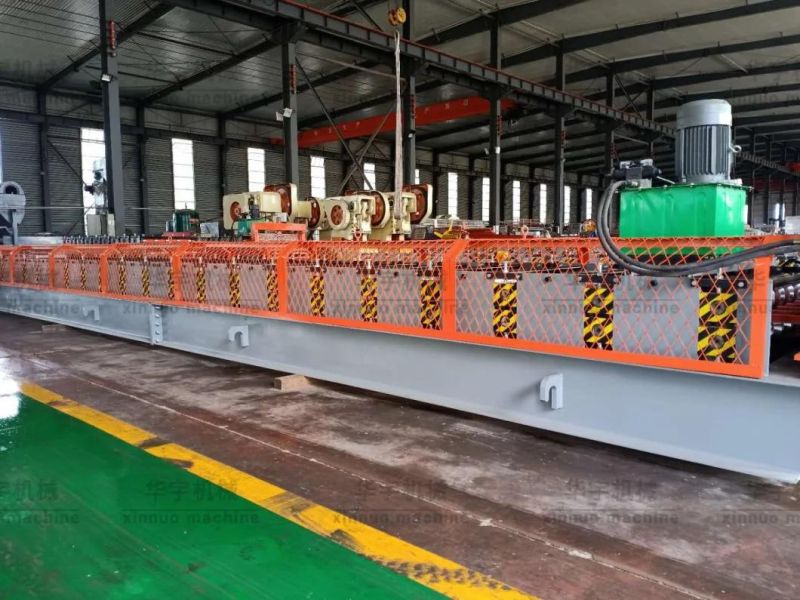

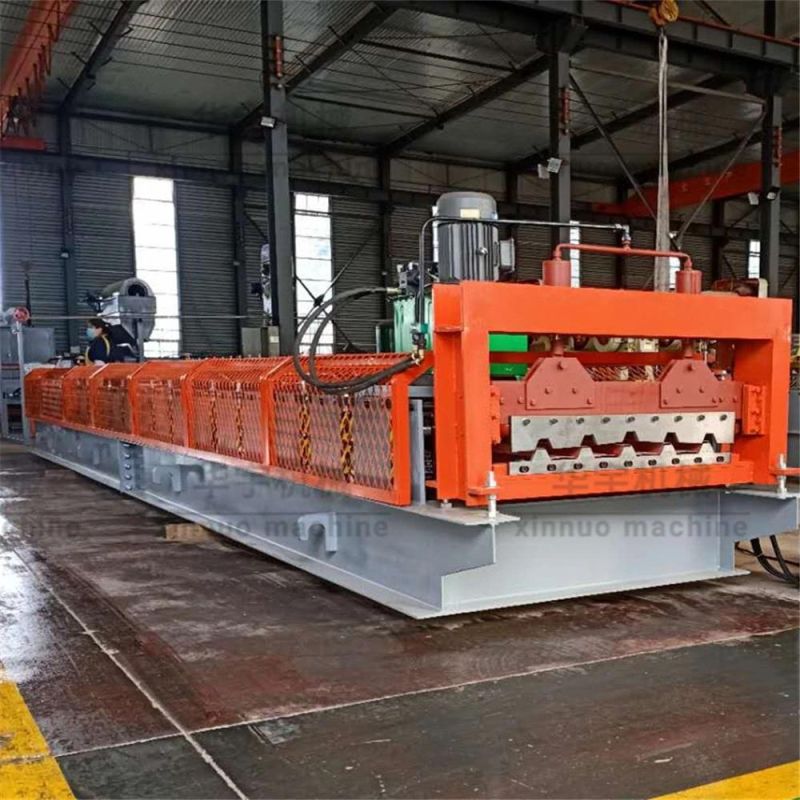

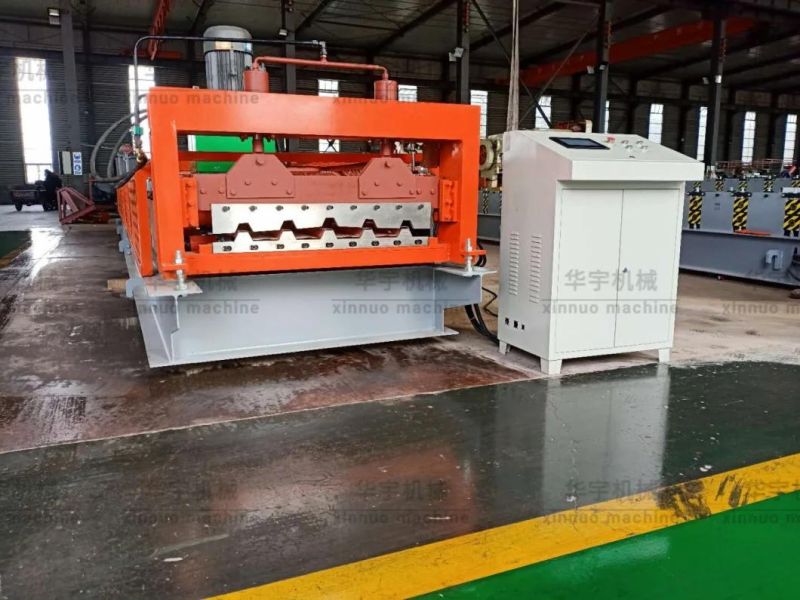

Pictures of 680 IBR roofing sheet panel metal cold roll forming machine in South Africa
If there is anything I can do for you, please don't hesitate to contact me, my friend!
Contact: Ms Rita Gao
Our company information:
Pictures of 680 IBR roofing sheet panel metal cold roll forming machine in South Africa
If there is anything I can do for you, please don't hesitate to contact me, my friend!
Contact: Ms Rita Gao
