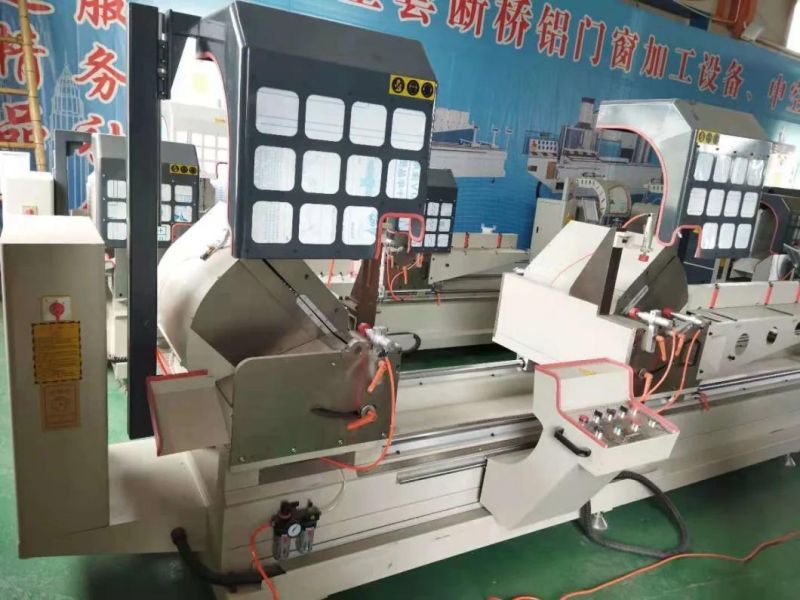

Ljz2-500X4200 Double-Head Saw CNC Cutting Machine for Aluminum Material Cutter of Aluminum Alloy Curtain Materials with Gas-Liquid Damping Cylinder
Shandong Zunbo CNC Equipment Co., Ltd.- After-sales Service：Lifetime Maintenance
- Warranty：1 Year, 1 Year
- Condition：New, New
- Certification：ISO, GS, CE, RoHS, ISO 9001
- Automatic Grade：Automatic
- CNC or Not：CNC
Base Info
- Model NO.：Ljz2-500X4200
- Voltage：380V
- Process Usage：Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
- Numerical Control：CNC,Mnc
- Performance Classification：MID-Range CNC Machine Tools
- After-Sales Service：Lifetime Maintenance Service
- Application：Window
- Specification：5800*1500*1800 mm
- Trademark：Zunbo
- Origin：China
Description
Basic Info.
Model NO. Ljz2-500X4200 Voltage 380V Process Usage Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools Numerical Control CNC/Mnc Performance Classification MID-Range CNC Machine Tools After-Sales Service Lifetime Maintenance Service Application Window Specification 5800*1500*1800 mm Trademark Zunbo Origin ChinaProduct Description
Product Description:
Model: LJZ2-500X4200Carbide saw blades have high machining accuracy and high durability.
High-precision spindle, stable rotation of the saw blade.
The gas-liquid damping mechanism realizes uniform feed speed regulation and stable movement.
The feed system adopts linear guide rail movement with high precision and good stability.
The two-head saw can automatically switch the angle to realize the angle cutting of -45° and 90° profiles.
Equipped with automatic opening and closing protective cover, making work more convenient.
Technical Parameter:
Power source: 380V 50HZ
Saw head motor: 4.4kW
Working pressure: 0.5~0.8MPa
Blade rotational speed: 2800r/min
Cutting length: 400-4200mm
Saw blade specification: D--500mm, d-30mm
Cutting angle: 90°, -45°
Dimensions: 5800× 1500× 1800 mm
