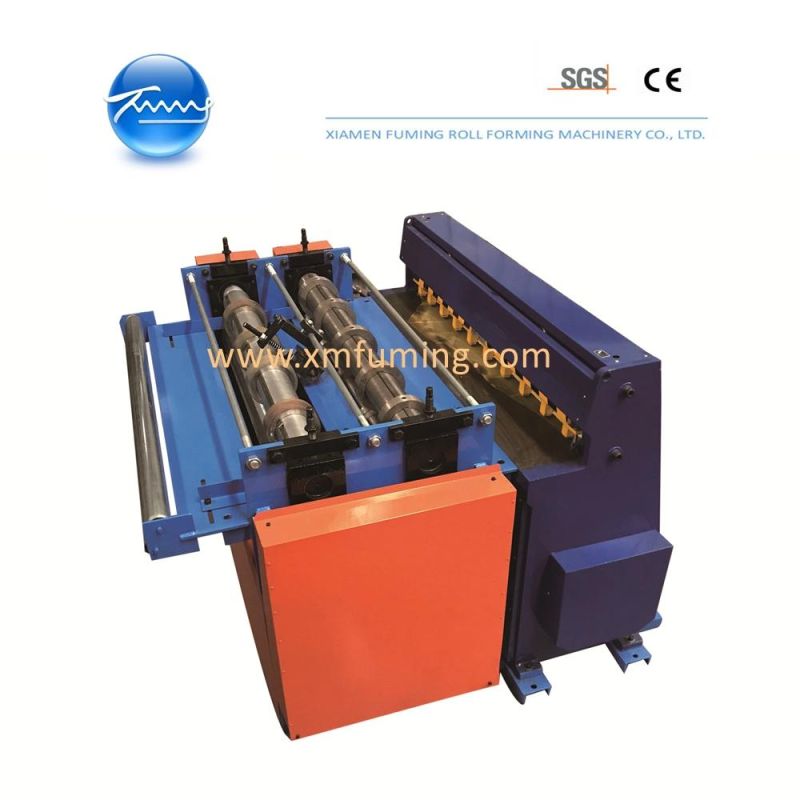

Slitting, Cutting Machine
XIAMEN FUMING ROLL FORMING MACHINERY CO., LTD.- Warranty：12 Months
- Tile Type：Gi, PPGI, Aluminum, Stainless Steel, Colored Steel
- Certification：CE, SGS
- Condition：New
- Customized：Customized
- Usage：Roof
Base Info
- Model NO.：Slitting, Cutting Machine
- Transmission Method：Gear,Sprocket, Gear Box, Toroidal Worm Box
- Thickness：0.4mm-1.0mm
- Color：Customized
- Yield Strength：250MPa to 550MPa
- Transport Package：Container
- Specification：20GP
- Trademark：FUMING
- Origin：Xiamen
- HS Code：8455229090
- Production Capacity：10sets,Month
Description
SLITTING & CUTTING MACHINE Material Specification Thickness 0.4mm to 1.0mm Size 1250mm Material GI, PPGI Yield strength 250MPa or customized Machine Components 5Ton*1250mm Hydraulic Decoiler Coil inner hole expanding Hydraulic system, 3KW pump motor Speed regulating Frequency inverter, 3KW motor Expanding type Taper wedge expanding system Load capacity Max.5Tons Coil inner-diameter 510±30mm Coil width Max.1250mm Stop/start rotation Automatic stopping device with limited switch to assist Option Please refer to Decoiler on home page Feed-in and Slitting Device Slitting tool material Cr12, heat treatment Quantity of slitting tool 5 sets or customized Motor 5KW Electric Shear Motor 3KW PLC Control System Function Control quantity, punching and cutting length automatically PLC Siemens Touch screen Siemens Inverter Schneider or Delta Encoder Omron Punching tolerance ≤±2mm Control Voltage 24V
