• Model NO.：SHWD4-120x4500
• Air Pressure：0.5~0.8MPa
• Air Consumption：200L,Min
• Spindle Speed：3200r,Min
• Cutting Length：400~4200mm(400~5000mm)
• Cutting Width：10~130mm
• Cutting Height：10~300mm
• Cutting Angle：90° 45° 67.5°
• Saw Feeding Speed：0~3m,Min
• Saw Blade Standard：φ500×4.4×φ30×z120
• Overall Dimension：5500(6300)×1700×1600mm
• Transport Package：Plastic Cover or Plywood Cases
• Trademark：YUEFENG
• Origin：Shandong
• HS Code：847780
• Production Capacity：100sets,Month

Basic Info.

Model NO. SHWD4-120x4500 Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Spindle Speed 3200r/Min Cutting Length 400~4200mm(400~5000mm) Cutting Width 10~130mm Cutting Height 10~300mm Cutting Angle 90° 45° 67.5° Saw Feeding Speed 0~3m/Min Saw Blade Standard φ500×4.4×φ30×z120 Overall Dimension 5500(6300)×1700×1600mm Transport Package Plastic Cover or Plywood Cases Trademark YUEFENG Origin Shandong HS Code 847780 Production Capacity 100sets/Month

Product Description

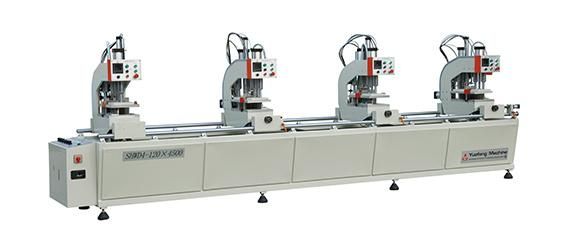

pvc doors and windows seamless welding machines
   1,The machine suitable for colored, co-extrusion and sprayed PVC profiles, the welding slag
immediately cut by the cutter installed on the clamp devices, hair crack less than 0.2mm.
2,It can process shapes of     etc.
3,JDB solid oilless bearing kinematic pair, LM linear guide kinematic pair and PLC control system adopted result high accuracy and efficiency.

Model	SHWD4-120×4500
Input voltage	380/220V 50Hz
Input power	4.5Kw
Air pressure	0.6~0.8MPa
Air consumption	260L/min
Welding length	400~4500mm
Welding height	20~120mm
Overall dimension	5300×950×1700mm
