• Model NO.：CSHZ4GC-100x4500
• Air Consumption：200L,Min
• Profile Height：20-120mm
• Profile Width：120mm
• Welding Range Min.：400mm
• Welding Range Max.：4500mm
• Dimension：5400*1100*1700mm
• Weight：1550kg
• Usage：PVC Window Door Corner Welding
• Transport Package：Standard
• Specification：CSHZ4-100*4500
• Trademark：Truepro
• Origin：China
• HS Code：846599
• Production Capacity：500sets,Year

Basic Info.

Model NO. CSHZ4GC-100x4500 Air Consumption 200L/Min Profile Height 20-120mm Profile Width 120mm Welding Range Min. 400mm Welding Range Max. 4500mm Dimension 5400*1100*1700mm Weight 1550kg Usage PVC Window Door Corner Welding Transport Package Standard Specification CSHZ4-100*4500 Trademark Truepro Origin China HS Code 846599 Production Capacity 500sets/Year

Product Description

PVC Window Door Making Machine Four Head Welding Machine Plastic Welding Machine Window Machinery

Equipment Advantages
 -Most popular machinery type with 2mm welding.
-Various angles welding between 30 to 180 degree is available on last machine head.
-Solid machinery base and structure ensure long life service with high dimension accuracy.
-profile fixture ordered separately can meet various height profiles' processing requirement
-Special profile fixture is easy to change, for high corner strength and later good cleaning
-Each machine head can be working separately or combination.
Parameter:

Model	CSHZ4-100*4500
Input Voltage	50Hz 220V
Input Power	4.5(kw)
Operation Air Pressure	0.5~0.8(MPa)
Air Consumption	200(L/min)
Welding Height	20---120 (mm)
Welding Width	120mm
Welding Range	400~4500 (mm)
Dimension	5400×1100×1700(mm)
Weight	1440kg

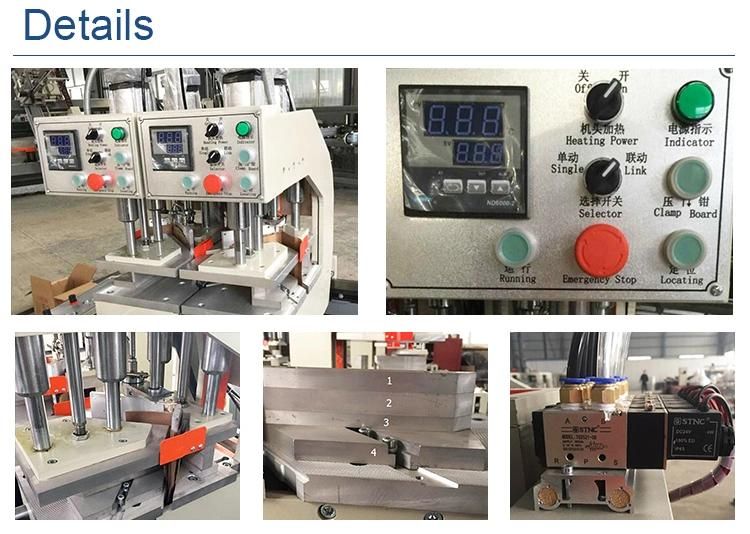

Machine details:







Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. PVC window production line
