• Model NO.：Qt4-15
• Molding Area：1016*600mm
• Pallet Size：1010*550mm
• Water Consumption：5-6t
• Models of Mixer：Js500
• Power of Host Machine：21.8kw
• Transport Package：Wooden Packaging
• Specification：4300*1850*2600mm
• Trademark：XM
• Origin：China
• Production Capacity：11520PCS,8hurs

ItemNameDetailTechnical InfoA

QT4-15

Brick machine

 Host machine (Power: 21.8kw)

 7. Pallet feeding system

 7. Material feeding system

 6.hollow block mold

 1. Production capacity: 7680Pcs/8h

 2. Fully automatic, hydraulic system

 3. 15s produce one pallet blocks

 4. Rated pressure: 21mpa

 5. Load in 40HQ container

 6. Multi function: Hollow, solid block, paver, houdi

 14. Hydraulic station 13. PLC controller Spart parts & Trolley5Conveyor 6m; 0.75kw Load weight/meter: 100kgs/m8Mixer Diameter: 1.5m; 11kw Production capacity: 8-12cbm/hFBlock receiver 2m; 0.75kw Delivery blocks from block machine to stacker9Stacker Laying blocks; 1.5kw Laying 4-5 pallets per time Total: QT4-15 block production line  total need 5-7 workers in factory

2.QT4-15 multi function concrete brick production plant technical information:

Molding cycle15sVibration frequency4000-4800hzVibration force70knRated pressure21mpaHost brick machine size3500(L)×1700(W)×2830(H)mmNet Weight4600kgPallet size960-550-25mm



3.Production Capacity

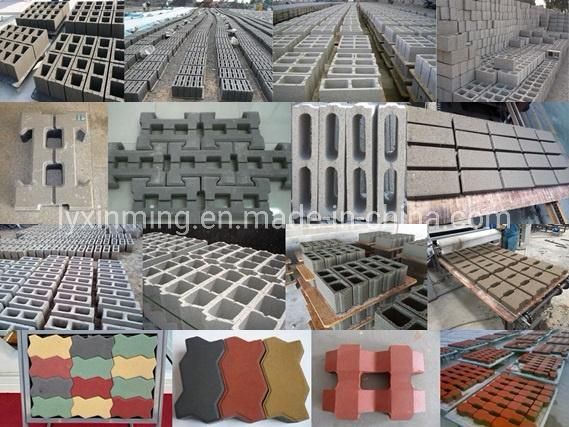

QT4-15 Automatic Concrete Block Making Machine is multipurpose, especially, the mold is changable.  It can produce different size and shape of blocks by changing moulds. Such as concrete hollow block, soild block, colorful paver brick, curbstone etc.

ItemBlockProduction capacityPhoto1

Hollow/Solid block

400-200-200mm

4 pcs/mold
7680 pcs/8h
 2

Hollow/Solid block

400-150-200mm

6 pcs/mold
11520 pcs/8h3

Hollow/Solid block

400-100-200mm

8 pcs/mold
15360 pcs/8h4

Houdi block

450-120-200mm

7 pcs/mold
13440 pcs/8h
 5

S shape paver

225-112.5-60mm

12 pcs/mold
19200 pcs/8h
 6

I shape paver

200-160-60mm

10 pcs/mold
18600 pcs/8h

 7

Holland paver

200-100-60mm

16 pcs/mold
23040 pcs/8h

4. Workers Number:  5-6 Workers

     Two workers to load material into Mixer

     One Workers to operate block machine

     One Workers to load pallet into pallet box of block machine

     One or Two workers to carry fresh blocks to curing size


5. Factory Area : 1000-1500M2

    Shelter Area; 200M2



6. Pallet Number for QT4-15 automatic block making line: 1500 pallet

    Xinming Machinery Factory supply bamboo pallet, fiber (GMT) pallet and PVC pallet. We recommend you the Fiber Pallet.

7. Maintance: QT4-15 automatic hollow solid block making machine is easy in maintance. please clean the mixer and mold after everyday work and fasten screws and add lubrication oil to moving parts before every day work.

8: Install Service: We will ship machine in whole one. you only connect elecctricity line with block machine, the machine can work. the manual and installtion video is avaible.

9. Guarantee Time:  One year. we will supply free accessories with machine for one year use. and Technical service and spare parts are avaible in all time.



Packaging & Shipping
QT4-15 is one of our best-selling machines. This type of concrete block making machine is a fully automatic hydraulic vibration machine with high output, low power and affordable price.

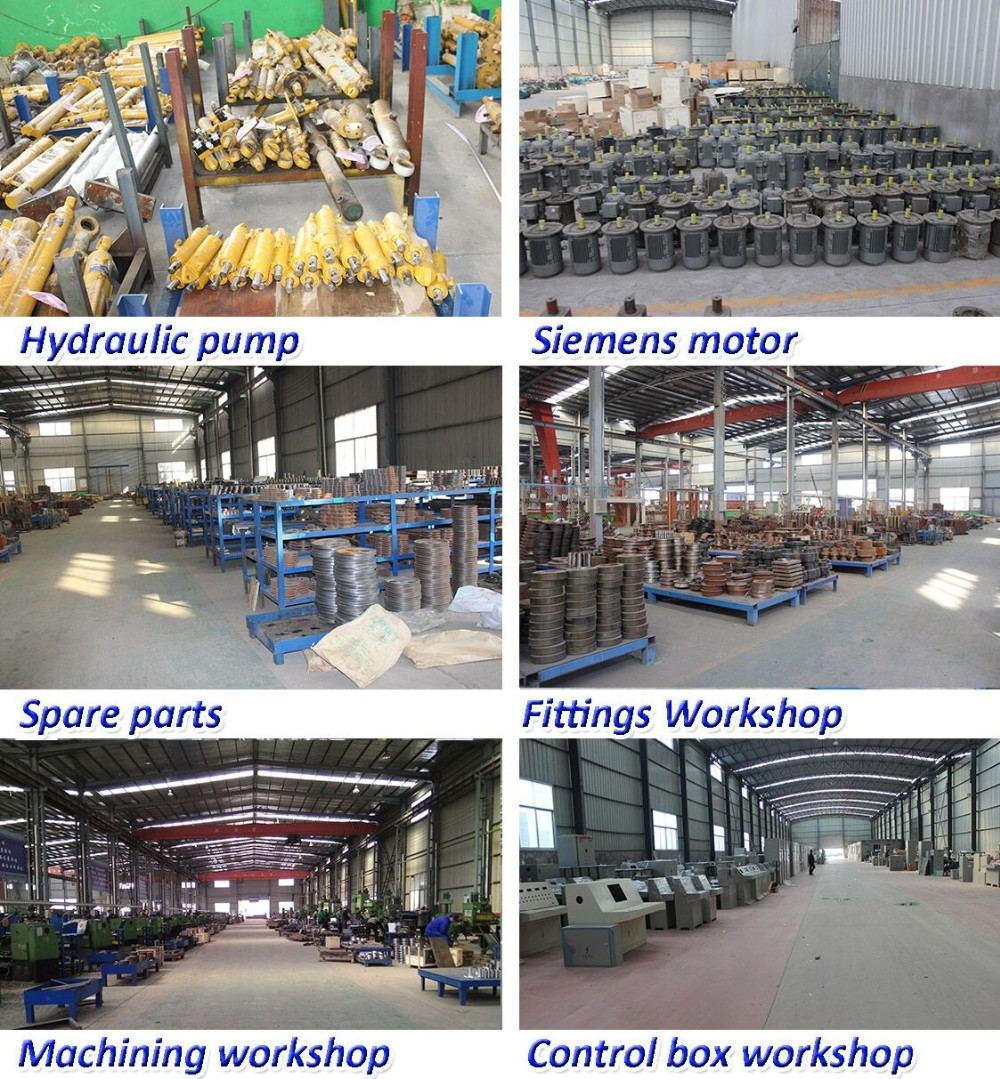

Company Information

Xinming Machinery Co., Ltd is one of the biggest professional manufacturers of block machine with 18 years histories.  Our Factory is located in Linyi City, Shandong Province, China.

On the basis of Rich experience and advanced Germany technologies,Xinming Machinery are majored in models of concrete block machine and clay interlocking brick machine to meet requirement of all customers. Such as automatic block machine, semi-automatic block machine, manual block machine, paver machine, curbstone machine and clay interlocking lego brick making machine. Xinming Machinery is widely used and praised in more than 70 countries such as Ghana, Kenya, Peru, Mexico, Vietnam, Sudan and so on.
