• Transport Package：Nude with Plastic Film
• Specification：Metal
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：500 Sets,Month

MaterialMaterial Thickness(&):0.4-0.8mmApplicable material:Galvanized Steel Coils, Hot Rolled Coils,Cold Rolled Coils,yield strength 245Mpa or 550MpaMachine Components1)Manual Decoiler: one setMax. feeding width: 500mm, coil ID range 470mm±30mm

Capacity: Max. 3Ton

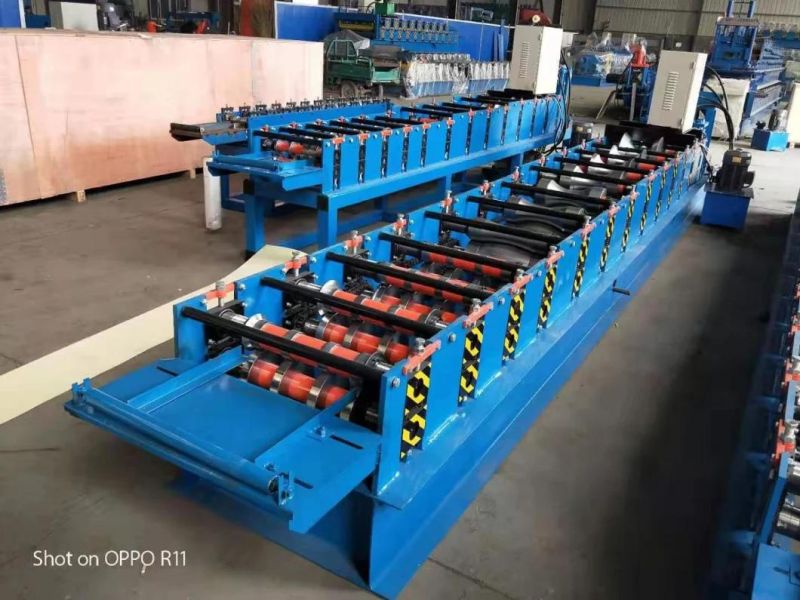

2)   Cold Rolling Mills:

Rollers manufactured from bearing steel GCr15,precision machined,hard Chrome Coated with thickness 0.04mm(for longer life and anti-rust)   ;





Motor Driving,Gear chain transmission, 18 forming stations and 7 rollers(3 upper rollers and 4down rollers)for straightening and levelling)

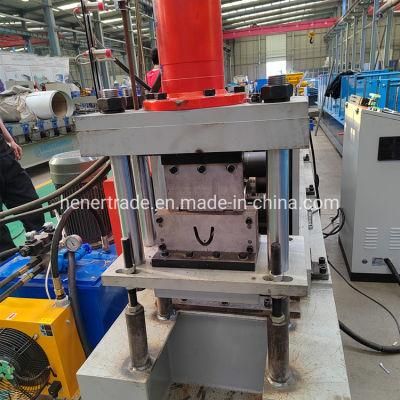

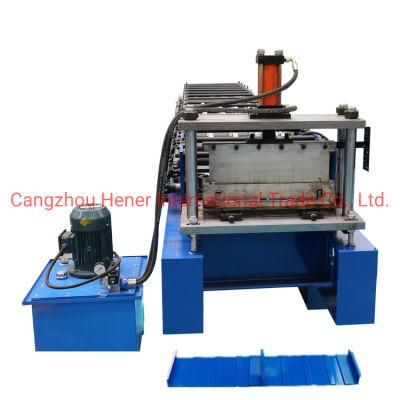

Main Motor=4KW  , Frequency speed controlForming speed approx.12-15m/min3)Hydraulic Cutting devicehydraulic motor: 3.7KW, Hydraulic pressure range: 0-16MpaCutting tool material: Cr12, Heat treatment4)PLC Control System(Touch screen brand:Taiwan WEINVIEW,Inverter brand:Finland VOCAN/Denmark Danfoss ,Encoder brand: Japan Koyo)Control the quantity and cutting length automaticallyCombined with: PLC, Inverter, Touch Screen, Encoder, etcCut-to-length tolerance≤±1mmControl Voltage 24V5) Exit Rack Un-powered, three units




Our service

1.We can produce the specialmachine,send your drawing to us,we can desgin for you.

2. If you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.

3We provude a one year warranty and lifelong technical support,wa can send our technical to you to give you on-site training.The training period would be for no more than one week with the customer paying for the visa,return ticket,food ,accommodations and a daily wage of US100.


Packaging & Shipping

1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.

2.Port:TIANJIN XINGANG PortLead .

3.Time: Shipped in 35 days after payment.

Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.


FAQ

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.

Good quality is for long-term business cooperation.



Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.



Q3. What's your standard trade terms ?

A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.



Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.



Q5. How about the after-sale service?

A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.



Q6. If I am in Beijing,or Shanghai ,how to visit your company?

A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.
