• Model NO.：ZK various
• Type：Ore Grinder
• Materials：Metallic Minerals
• Feeding Size：<25mm
• Certificate：ISO9001: ISO14000
• Capacity：8-43tph
• Factory Established：1956
• Experience：More Than 50 Years
• Installation：Under Our Engineer′s Guide
• Transport Package：Standard Container,in Bulks ,or Wooden Cases
• Specification：ISO9001, ISO14000, CE
• Trademark：ZK Brand
• Origin：Zhengzhou, China
• HS Code：8417
• Production Capacity：100 Sets Per Year

Basic Info.

Model NO. ZK various Type Ore Grinder Materials Metallic Minerals Feeding Size <25mm Certificate ISO9001: ISO14000 Capacity 8-43tph Factory Established 1956 Experience More Than 50 Years Installation Under Our Engineer′s Guide Transport Package Standard Container,in Bulks ,or Wooden Cases Specification ISO9001, ISO14000, CE Trademark ZK Brand Origin Zhengzhou, China HS Code 8417 Production Capacity 100 Sets Per Year

Product Description

Various Model Raw Ball Mill for Cement Production Line

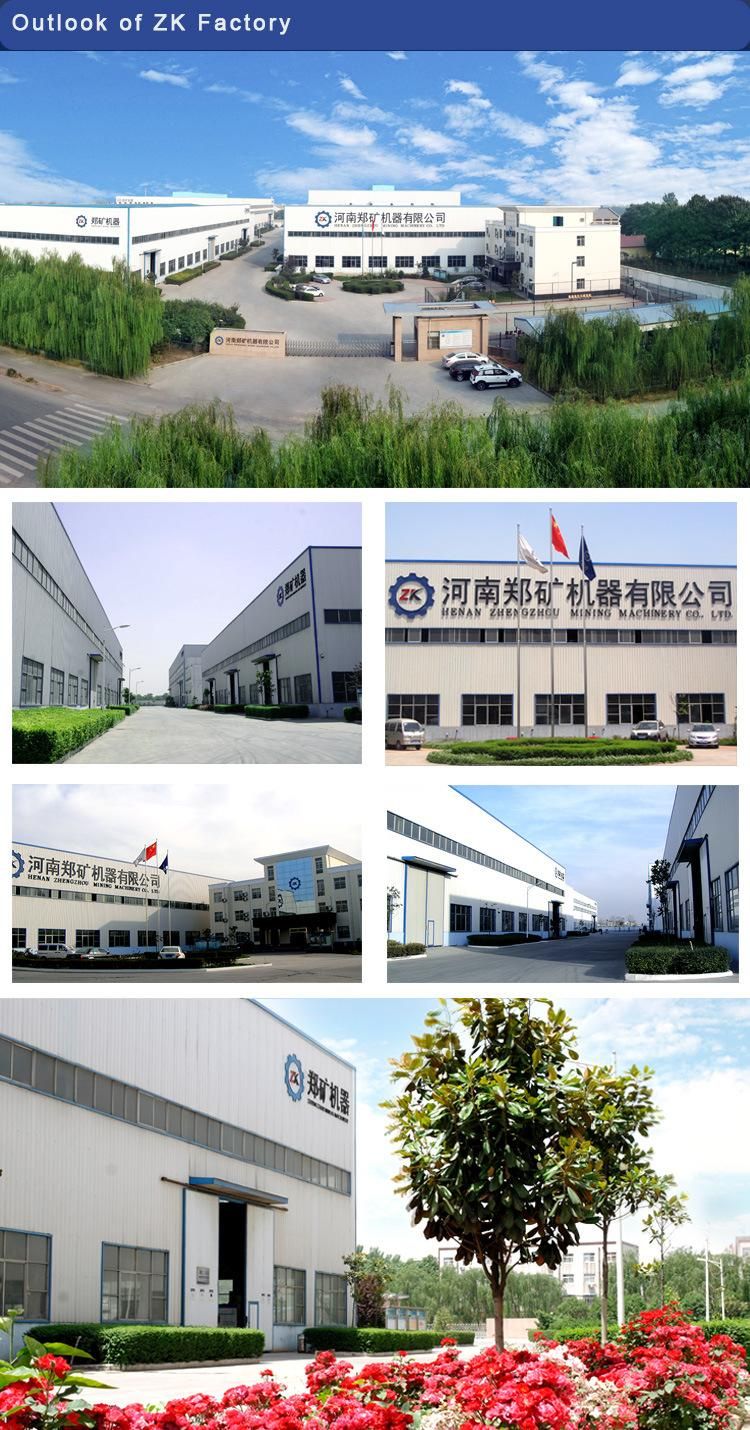

HENAN ZHENGZHOU MINING MACHINERY CO.,LTD was founded in 1956, after more than half a century of development, has now become a domestic first-class modern machinery manufacturing enterprises. Product marketing at home and abroad.

Cement Raw mill Featuers:
1. ISO9001: 2000
2. Excellent performance
3. Low operation cost
4. Competitive price



Raw Mill
Raw Mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.


Raw Mill Working principle:
Raw Mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material.
After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball, after the secondary grinding, material is discharged from the discharging. Then the whole grinding process end.

Raw Mill Structure:

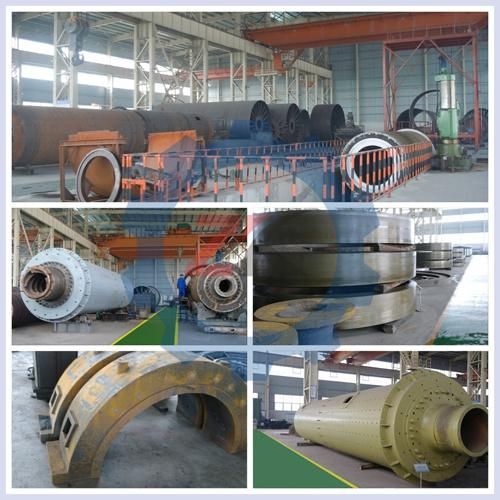

Raw Mill is composed by feeding part, discharging part, rotation part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The rotation big gearwheel is made by cast hobbling processing and the drum is equipped with wear-resistant liner, which has good wear-resistance.

Ball mill is a key piece of equipment for grinding crushed materials, and it is widely used in production lines for powders such as cement, silicates, refractory material, fertilizer, glass ceramics, etc. as well as for ore dressing of both ferrous and non-ferrous metals. Ball mill can grind various ores and other materials either wet or dry. There are two kinds of ball mills, grate type and overfall type due to different ways of discharging material.

  Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://hnzkjq.en.made-in-china.com/ & http://hnzkjq.en.made-in-china.com/
24-hour Free Sales Consulting Phone : 861-0371 -5590 2866 .
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province

Please pay attention to the company's other products:
Price of rotary kiln: http://hnzkjq.en.made-in-china.com
Rotary Kiln:http://hnzkjq.en.made-in-china.com
Preheater:http://hnzkjq.en.made-in-china.com
Cement Mill:http://hnzkjq.en.made-in-china.com
Rotary Dryer:http://hnzkjq.en.made-in-china.com
Raw Mill:http://hnzkjq.en.made-in-china.com
Ball Mill:http://hnzkjq.en.made-in-china.com

Model	Rotationna speed r/min	Ball load t	Feeding size mm	Output size mm	Capacity t/h	Power kw	Weight t
900× 1800	36-38	1.5	≤ 20	0.075-0.89	0.65-2	18.5	4.6
900× 3000	36	2.7	≤ 20	0.075-0.89	1.1-3.5	22	5.6
1200× 2400	36	3	≤ 25	0.075-0.6	1.5-4.8	30	12
1200× 3000	36	3.5	≤ 25	0.074-0.4	1.6-5	37	12.8
1200× 4500	32.4	5	≤ 25	0.074-0.4	1.6-5.8	55	13.8
1500× 3000	29.7	7.5	≤ 25	0.074-0.4	2-5	75	15.6
1500× 4500	27	11	≤ 25	0.074-0.4	3-6	90	21
1500× 5700	28	12	≤ 25	0.074-0.4	3.5-6	130	24.7
1830× 3000	25.4	11	≤ 25	0.074-0.4	4-10	130	28
1830× 4500	25.4	15	≤ 25	0.074-0.4	4.5-12	155	32
1830× 6400	24.1	21	≤ 25	0.074-0.4	6.5-15	210	34
1830× 7000	24.1	23	≤ 25	0.074-0.4	7.5-17	245	36
2100× 3000	23.7	15	≤ 25	0.074-0.4	6.5-36	210	34
2100× 4500	23.7	24	≤ 25	0.074-0.4	8-43	245	42

FAQ:

Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.

Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.

Q: What should I take care when using the machine?
A: Keep the machine away from thinner and other chemical liquid.

Q: How to maintain the machine?
A: Check the connection part and clean the screen frame regularly.

Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.

Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
