Qt5-15 High Capacity Automatic Concrete Hollow Brick Block Forming Machine

Qingdao HF Machinery Co., Ltd.
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Vibration Molding
  • Machine Name：Block Making Machine
  • Machine Model：Qt15-15

Base Info

  • Model NO.：qt5-15
  • Cycle Time：15-25s
  • Pallet Size：1300X1100mm
  • Host Machine Power：78.5kw
  • Rated Pressure：31MPa
  • Host Machine Weight：17500kg
  • Vibration Form：Platform Vibration
  • Overall Dimension：11500X2350X2950mm
  • Factory Area：3000m2
  • Transport Package：Nude
  • Specification：New
  • Trademark：HONGGONG
  • Origin：China
  • HS Code：847480200
  • Production Capacity：50 Set Per Month

Description

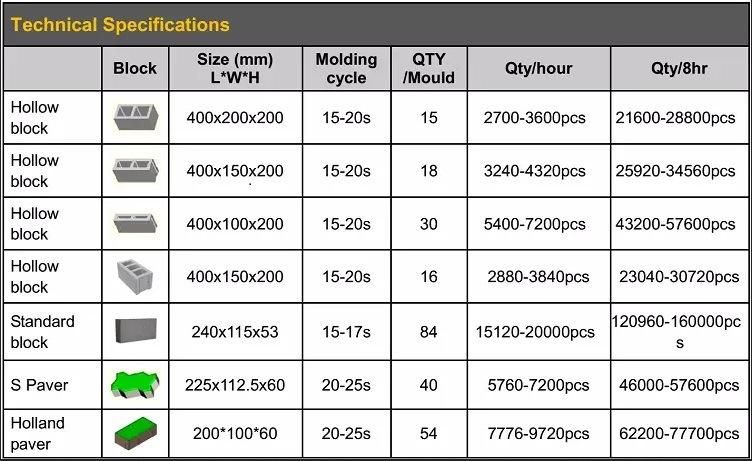

Main technical parameterQty/mould15pcs/mould (hollow block 400*200*200mm)Molding cycle15sRated pressure31MPaMain vibrationPlatform vibrationVibration frequency2800-4500 r/mPower78.5kwPallet size1300x1100mmDimension11500x2350x2950mmHost machine weight17500kgFactory Area3000m²Qt5-15 High Capacity Automatic Concrete Hollow Brick Block Forming Machine
PRODUCTION CAPACITY
Qt5-15 High Capacity Automatic Concrete Hollow Brick Block Forming Machine
Qt5-15 High Capacity Automatic Concrete Hollow Brick Block Forming Machine
Our advantages
Qt5-15 High Capacity Automatic Concrete Hollow Brick Block Forming MachineQt5-15 High Capacity Automatic Concrete Hollow Brick Block Forming MachineOur clientsQt5-15 High Capacity Automatic Concrete Hollow Brick Block Forming MachineOur companyQt5-15 High Capacity Automatic Concrete Hollow Brick Block Forming Machine

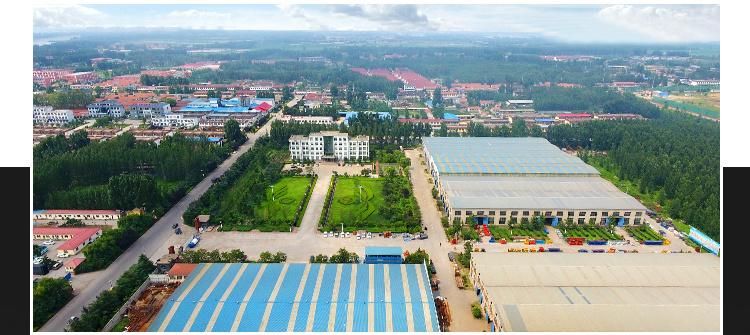

QINGDAO HF INDUSTRY CO.,LTD is the professional manufacturer and exporter for block machine technology. Our factory has three manufacturing bases that cover an area of 500 acresand a plant construction area of 100,000 square meters.
We are always developing advanced products to international standards to meet consumer demands. We cooperate with SIEMENS for Motors and PLC intelligent control system, Schneider electrical equipment and YUKEN for the hydraulic operations to insure our machines have the highest quality standrads with a stable working status.
We have more than 50 technician to ensure superior installations and after sale service to assist customer to install the
machine and perfrom the proper training abroad.

We warmly welcome clients from all over the world to visit our factory.
Qt5-15 High Capacity Automatic Concrete Hollow Brick Block Forming Machine
Our Service

1) Send the technicians to carry out the installation and debugging of equipment for the foreign users with compensation.Countries or regions with unstable political situation or in the throes of wartime are not included in our plan.

2) Train the users to command the equipment and guide them for safe production.

3) Explain the routine maintenance of equipment carefully and remove common faults.

4) We are responsible for all the repairs that caused by our quality problems within one year's warranty. (We will provide one set of spare parts/wear & tear parts free of charge with shipment.)

5) For some countries whose visas are difficult obtained, customers can also send their technicians to our company to receive free guidance and training.

6) Accept suggestions for improvement put forward by customers an earnest way. In accordance with changes of the market, provide the products and services to meet the user's needs and create value for them.

7) We will make every effort to solve your problems, and your success will add new glory to us.

Qt5-15 High Capacity Automatic Concrete Hollow Brick Block Forming Machine
FAQ
1> Is this block machine suitable for us to use?
Could you pls tell us the Moulding Number, Pallet size you needs?Then we could advice the most fitting model for you.

2>Which industry did this block machine usually be used in?
 Muticelullar bricks,Standard bricks,etc

3>How to use the block machine?
We will send the operating manual to you after you purchase the machine.

4>How about the after sale service of block machine?
1 year guarantee for the whole machine (without the spare parts)We also sell the parts ,if you need them,just tell us.
Qt5-15 High Capacity Automatic Concrete Hollow Brick Block Forming Machine

If you interested in our block machine, please feel free to contact me.
