Xinnuo Glazed Tile Roll Forming Machine Machine Making Corrugated Steel Machine
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- After-sales Service：Door to Door
- Warranty：One Year
- Tile Type：Glazed Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
Base Info
- Model NO.：1100
- Usage：Roof
- Transmission Method：Hydraulic Pressure
- Transport Package：Main Machine with Simple Plastic Film.
- Specification：6.8*1.45*1.45m
- Trademark：Xinnuo
- Origin：China
- Production Capacity：300sets,Year
Description
Overview
Detailed Photos
Product Description1 Suitable to process Color steel plate, galvanized sheet,aluminum coils and etc. 2 Width of the feeding material 1200mm 3 Roller station 11-16 rows 4 Thickness of feeding material 0.3-0.8mm 5 Productivity 10-15m/min 6 Rollers' material 45# steel, with hard chrome on surface 7 Diameter of shaft 70mm 8 Weight About 4.6 T 9 Size 8.0*1.65*1.45m 10 Voltage 380V 50Hz 3Phase 11 Main frame of machine 300mm H steel 12 Main motor power 5.5kw 13 Hydraulic cutting power 4kw 14 Side panel thickness 14-20mm
If there is anything I can do for you, please don't hesitate to contact me, my friend!

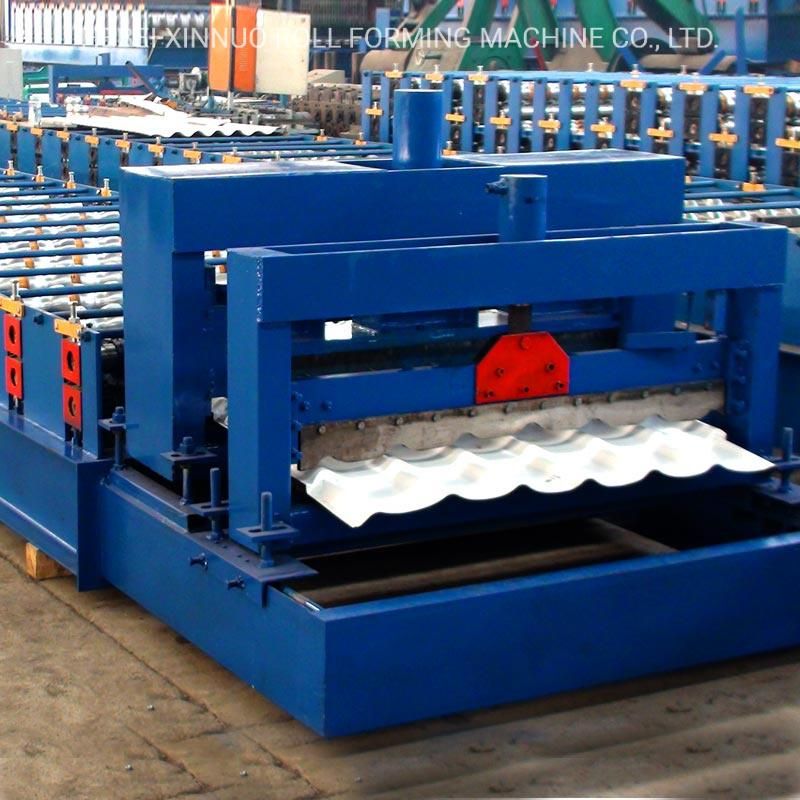

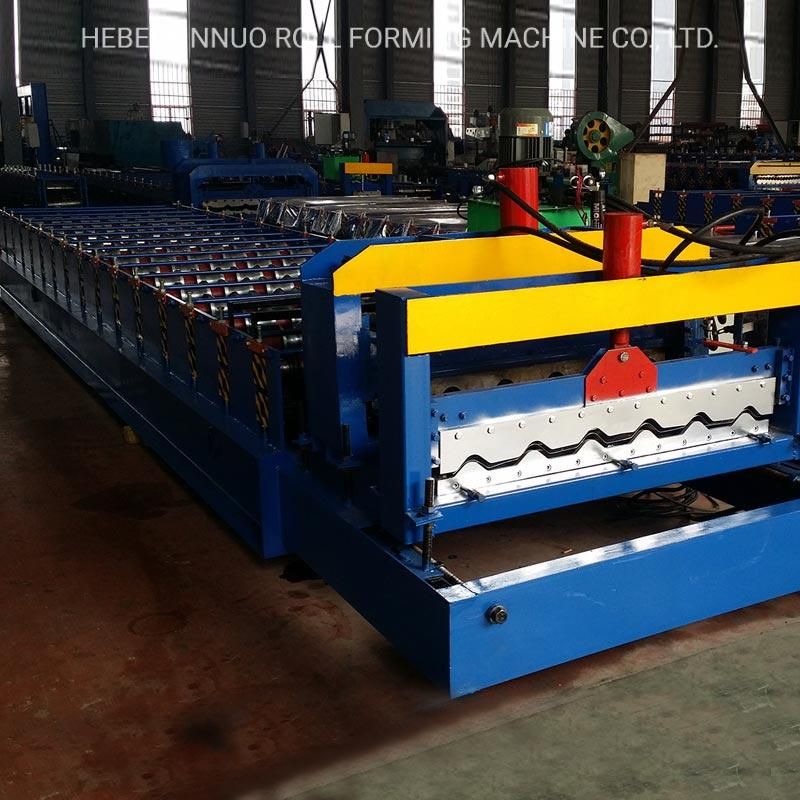

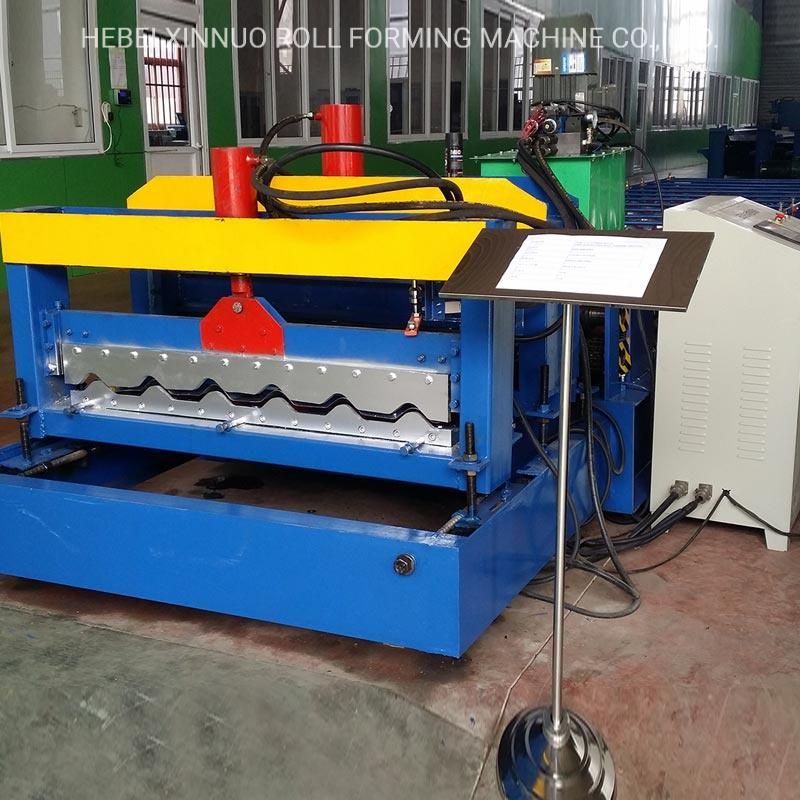

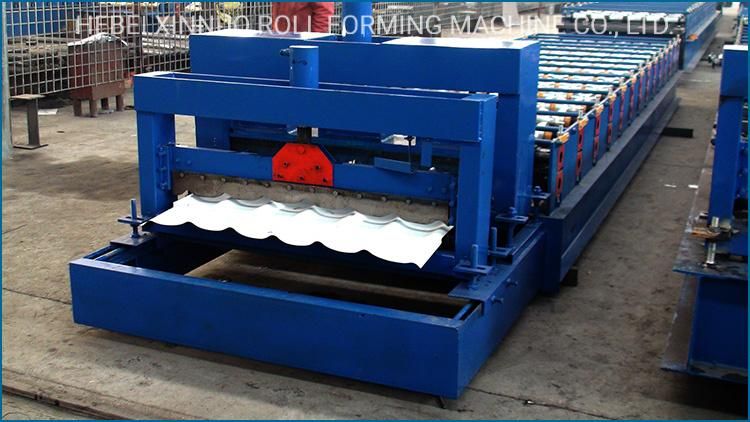

Pictures of 1080 Glazed roof steel sheet tile making machinery
Product DescriptionMain parameters of 1080 Glazed roof steel sheet tile making machinery
Main parameters of 1080 Glazed roof steel sheet tile making machineryIf there is anything I can do for you, please don't hesitate to contact me, my friend!
