• Model NO.：CLJG2X-500*4500
• Rotary Speed：2800r,Min
• Air Consumption：60L,Min
• Cutting Length：400-4500mm
• Cutting Width：200mm
• Cutting Height：135mm
• Cutting Angle：45 and 90 Degree
• Machine Dimension：5750*1300*1500mm
• Weight：1800kg
• Transport Package：Wooden
• Specification：Saw blade diameter 500mm
• Trademark：Truepro
• Origin：China
• HS Code：846150
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLJG2X-500*4500 Rotary Speed 2800r/Min Air Consumption 60L/Min Cutting Length 400-4500mm Cutting Width 200mm Cutting Height 135mm Cutting Angle 45 and 90 Degree Machine Dimension 5750*1300*1500mm Weight 1800kg Transport Package Wooden Specification Saw blade diameter 500mm Trademark Truepro Origin China HS Code 846150 Production Capacity 500sets/Year

Product Description

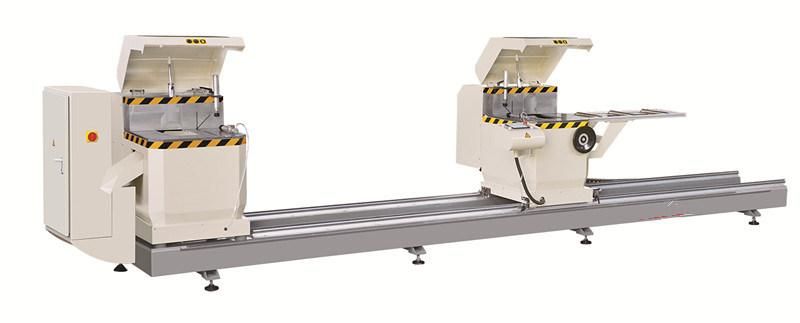

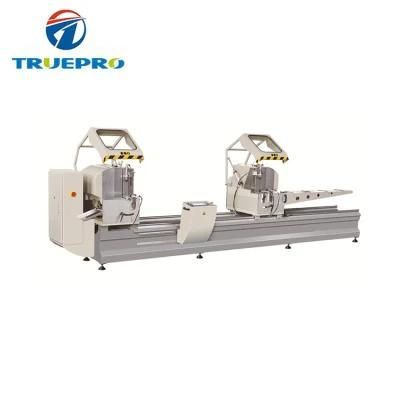

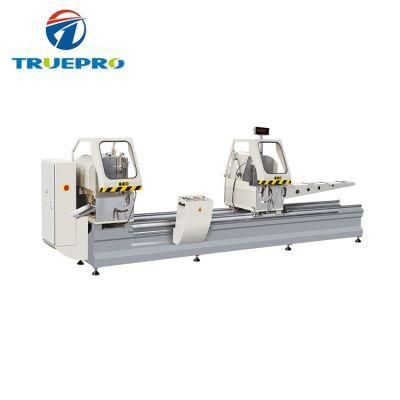

     Digital display double head aluminum up cutting saw machine

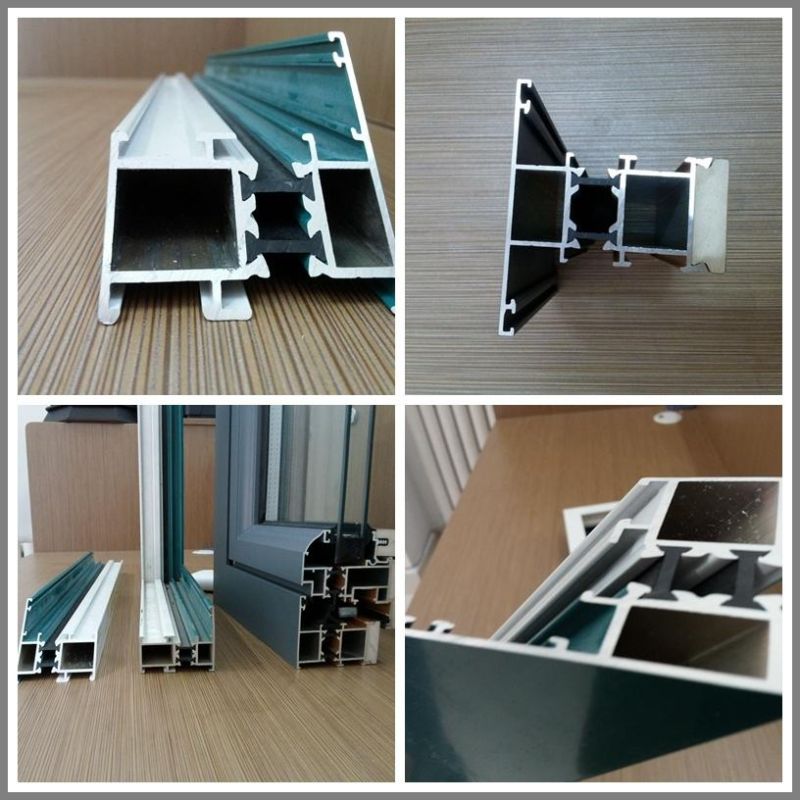

Machine feature: 1. Used for aluminum window and door profile cutting and for curtain wall profile cutting, also for plastic profile cutting
2. Adopt carbide alloy blade, diameter up to 500mm dia., line of high speed and high precision machining.
3.Right heads feeding adopts pitch ball screw-lead motion, with high accurate driving, locating and smooth working.
4. The machine equipped with up-feed blade and digital display positioning system.
5.Two cutting head can work together or single. When together work, one time can cut off the required length and angle
6.The saw blades can be adjusted within the 45°- 90° freely.
7.This machine max. cutting size is 200*135mm, suitable for wide profile.

Parameter:

Model	CLJG2X-500*4500
Power supply	3N~50Hz 380/220V or As Customer Specification
Cutting motor power	4.4KW
Cutting motor rotary speed	2800r/min
Operation air pressure	0.5~0.8MPa
Air consumption	60L/min
Blade specification	ø500×ø30×4.4×Z120
Cutting speed	stepless speed regulation0~3m/min
Max. cutting length	4500 mm
Min. cutting length	400 mm
Cutting width	max 200mm
Cutting height	max. 135mm
Cutting angle	90°,45°
Repeat locating length tolerance	±0.2mm
Cutting profile surface plane	≤0.10mm
Cutting angle tolerance	±5′
Cutting profile surface roughness	Ra12.5µm
Contour dimension	5750 mm×1300mm×1500mm
Weight	1800KGS

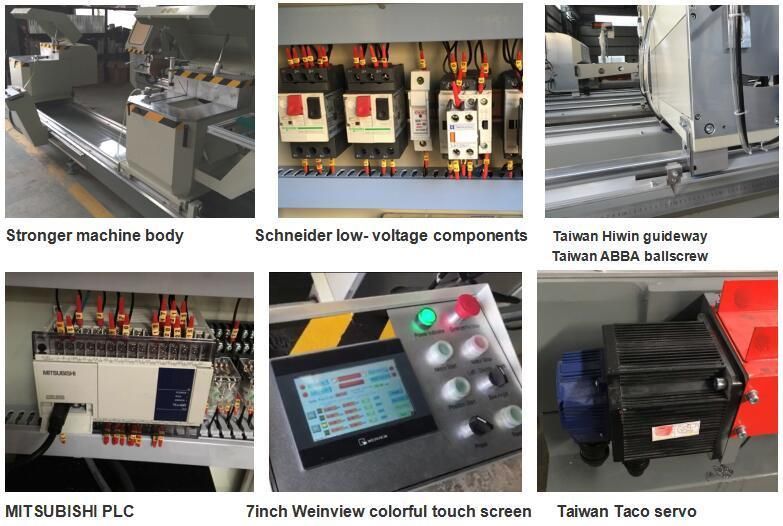

Machine details:









1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
