• Input Power：3kw
• Air Pressure：0.6-0.8MPa
• Squeeze Pressure：12~16MPa
• Two Sealant Mouth Adjustment：4-27mm
• Working Speed：0-45m,Min
• Rubber Box Diameter：195mm
• Machine Dimension：3000*740*3400mm
• Transport Package：Standard
• Specification：JYJ-02
• Trademark：Truepro
• Origin：China
• HS Code：846490
• Production Capacity：200 Sets,Year

Basic Info.

Input Power 3kw Air Pressure 0.6-0.8MPa Squeeze Pressure 12~16MPa Two Sealant Mouth Adjustment 4-27mm Working Speed 0-45m/Min Rubber Box Diameter 195mm Machine Dimension 3000*740*3400mm Transport Package Standard Specification JYJ-02 Trademark Truepro Origin China HS Code 846490 Production Capacity 200 Sets/Year

Product Description

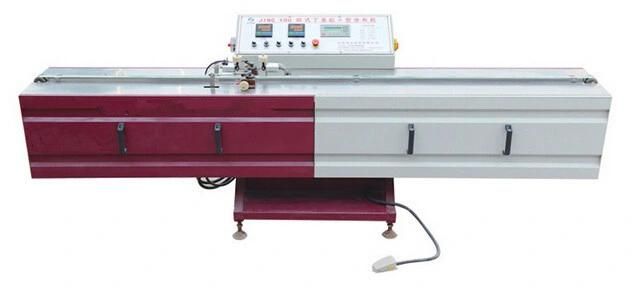

Insulating Glass Processing Machinery Hot Melt Butyl Sealant Extruder


Machine feature:
1. This machine is used for the first sealing of insulating glass, butyl sealant coating.
2. Coating for straight line and arc shapes of aluminium spacer.
3. The temperature of the sealant is automatic controlled by PLC.
4. The coating effect is uniform,the efficiency is high.
5. The distance between the two sealant mouth can be adjusted, no need to release the pressure and fasten the screw,
easy and convenient.
Parameter:

Model	JYJ-02
Power supply	380V 50Hz
Input power	3Kw
Air pressure	0.6-0.8Mpa
Working speed	0-45m/min
Squeeze pressure	12-16Mpa
Temperature	120-140°C
Adjustable range	4-27mm
Outside dimension	3000*740*340mm

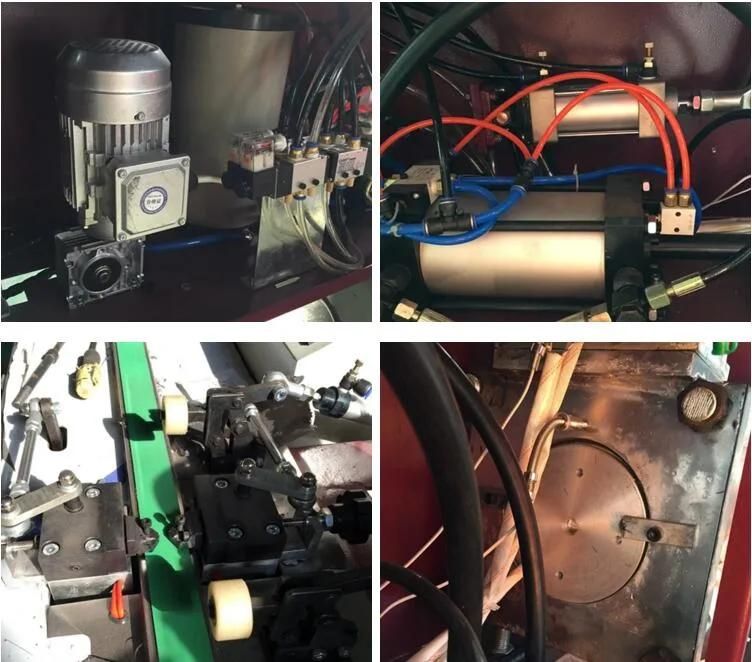

Machine details:




Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

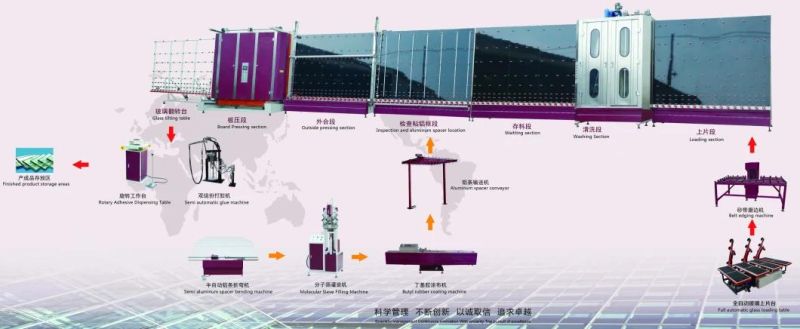

4. Insulating glass production line
